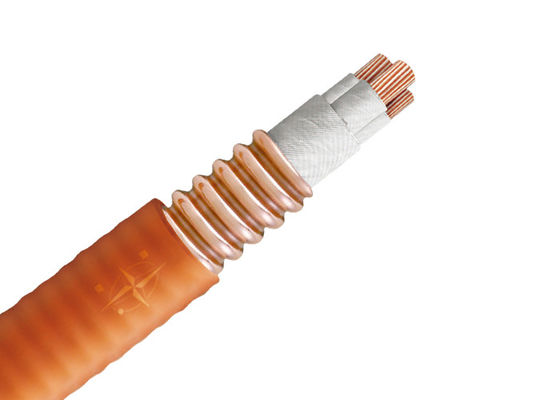

YTTW 0.6/1KV 4x95SQMM High Temperature Electrical Cable 1.0 insulation thickness

Large Image : YTTW 0.6/1KV 4x95SQMM High Temperature Electrical Cable 1.0 insulation thickness

Product Details:

Place of Origin:	SHANGHAI CHINA
Brand Name:	SHAN CABLE
Certification:	CE,KEMA,TUV,LPCB
Model Number:	YTTW-0.6/1KV 4x95 SQMM

Payment & Shipping Terms:

Minimum Order Quantity:	200 Meter
Price:	USD 0.13-6.68 /M
Packaging Details:	Wooden Drum,Reel
Delivery Time:	7 Days
Payment Terms:	L/C, T/T
Supply Ability:	587423 M/Week

Contact Now

Detailed Product Description

Jacket:	Copper Tube	Voltage:	0.6/1KV
Jacket Color:	Orange	Fire-Temp:	950 Degree
Conductor:	Stranded Copper Class 2	Sample:	Free
Insulation:	Mica Tape	Warranty:	2 Years
Port Of Loading:	SHANGHAI CHINA	Test Voltage:	3.5 KV/5Min
High Light:	95SQMM high temperature electrical cable , YTTW high temperature electrical cable , 0.6/1KV high temperature resistant cable

Copper Corrugated Jacket Fire Resistant Cable With 950 Degree YTTW -0.6/1KV 4x95 SQMM

1.Aplications

Railway Stations,Road &Rail Tunnels,Public Lighting,Car Parks,Public Service Building,Shopping Malls,Airport,Underground Rail Systems,Schools,Hospitals,Hotels,Theatres,Churches,Power Station,Boiler Houses,Oil &Gas Station,Emergency Lifts and so on.

2.Standards

International: IEC60702-1,GB/T13033.1-2007

Cable Type:YTTW 3x120SQMM

3.Technical Data

Rated voltage:500V or 750V

Fire Resistant to 950 ℃/3 Hours.

Commercial Items: MOQ:500m

Price Term: FOB Shanghai or CIF as request.

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Roll

4.Specifications

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Norminal copper sheath	Max. D.C Resistance of Copper Sheath (20 ℃)	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)
mm²	mm	mm	mm²	Ω/km	mm	Kg/km	Ω/km
1x10	1.0	0.4	9.26	2.07	7.80	247	1.83
1x16	1.0	0.4	10.55	1.82	8.80	305	1.15
1x35	1.1	0.4	13.94	1.40	11.50	497	0.524
1x50	1.2	0.5	20.57	0.986	13.60	667	0.387
2x2.5	0.8	0.4	9.49	2.02	7.96	194	7.41
2x4	0.8	0.4	11.18	1.72	9.30	239	4.61
2x6	0.8	0.4	12.94	1.51	10.70	279	3.08
2x95	1.2	0.5	37.05	0.557	24.10	2176	0.193
3x2.5	0.8	0.4	10.55	1.82	8.80	226	7.41
3x4	0.8	0.4	12.31	1.59	10.20	287	4.61
3x6	0.8	0.4	13.69	1.43	11.30	361	3.08
3x10	1.0	0.4	18.09	1.14	14.80	527	1.83
4x16	1.0	0.5	29.36	0.709	19.20	942	1.15
4x25	1.0	0.5	34.07	0.606	22.20	1376	0.727
4x50	1.2	0.5	38.47	0.536	25.0	2353	0.387
