AWA PVC Sheathed Four Cores Steel Electrical Cable Wire

China AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier
AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier AWA PVC Sheathed Four Cores Steel Electrical Cable Wire supplier

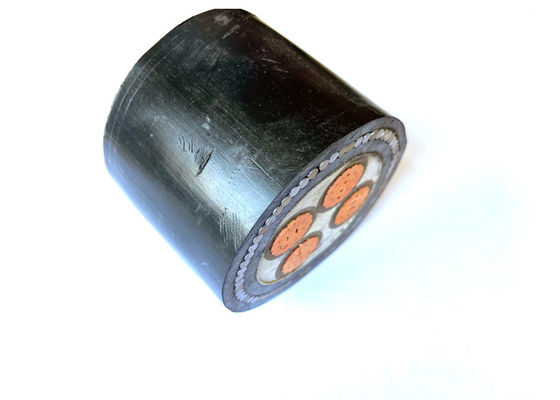

Large Image :  AWA PVC Sheathed Four Cores Steel Electrical Cable Wire

Product Details:

Place of Origin: CHINA
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/XLPE/AWA/PVC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Standard: IEC, BS, IS, VDE Color: Black
Rated Voltage: 0.6/1kV Material: Copper
Feature: PVC Sheath Corporation: Shenghua Group
Brand: Sh Cable
Highlight:

IEC62893 type 2 EV plug

,

16Amp EV Charging Cable

,

IEC62893 PHEV Charging Cable

Construction: 1 ..... stranded bare copper, 2 ..... inner layer of semi-conducting material, 3 ..... core insulation of cross-linked polyethylene, 4 ..... outer layer of semi-conducting material, 5 ..... semi-conducting tape, 6 ..... screen of copper wires, 7 ..... Fillers strip, Yarn, or Paper, 8 ..... Non woven Wrapping tape or Flame Retardant, 9 ..... Extruded PVC Inner Covering, 10 .... Aluminum Wire Armoured, 11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH





Application: 1. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. 2. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges. 3. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.





Standards: International: IEC 60502-2, IEC 60228; China: GB/T 12706.2-2008; Other standards such as BS,DIN and ICEA upon request





Specifications:



MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core Al Core
YJV, N2XSY;PVC sheathed power cable YJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable




Technical data:





Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1








Ordering



Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





Technical Parameter





Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 8 1.2 2.0 2.2 40.0 2857 0.387 63 210 215
1 × 70 14/2.52 8 1.2 2.0 2.3 42.0 3166 0.268 63 260 265
1 × 95 19/2.52 8 1.2 2.0 2.3 43.0 3499 0.193 63 320 315
1 × 120 24/2.52 8 1.3 2.5 2.4 46.0 4264 0.153 63 370 360
1 × 150 30/2.52 8 1.4 2.5 2.5 48.0 4671 0.124 63 420 405
1 × 185 37/2.52 8 1.4 2.5 2.5 49.0 5121 0.0991 63 480 455
1 × 240 48/2.52 8 1.4 2.5 2.6 52.0 5780 0.0754 63 565 530
1 × 300 61/2.52 8 1.4 2.5 2.7 54.0 6482 0.0601 63 650 595
1 × 400 61/2.97 8 1.4 2.5 2.8 58.0 7657 0.0470 63 755 680
1 × 500 61/3.23 8 1.6 2.5 2.9 61.0 8894 0.0366 63 865 765





Packing: Carton
