Product Details:
Payment & Shipping Terms:
|
| Product Name: | Armoured Power Cable | Conductor: | Copper Conductor, Cl.2 As Per IEC 60228 |
|---|---|---|---|
| Insulation: | XLPE(cross-linked Polyethylene) Rated At 90 OC | Shield: | Copper Tape |
| Inner Sheath: | PVC | Armored: | Galvanized Steel Wire |
| Sheath: | PVC Sheath | Free Smaple: | YES |
| High Light: | Copper Tape Armoured Electrical Cable,70mm2 Armoured Electrical Cable,70mm2 armoured wire cable |
||

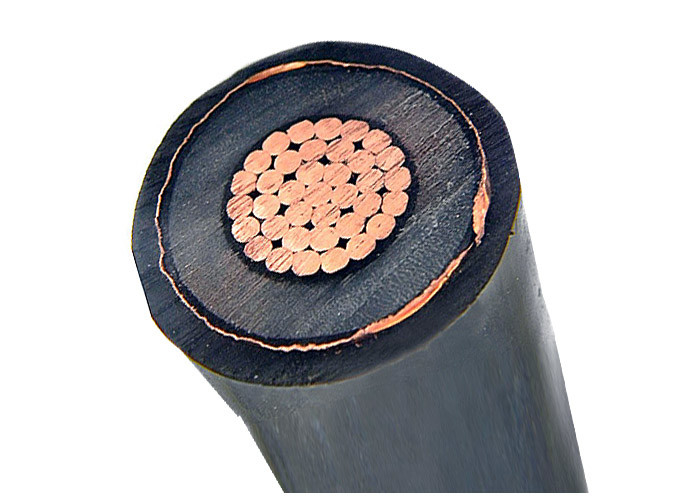

PVC Sheath Outdoor Armoured Power Cable / Copper Tape Armoured Cable
Armoured Power Cable Construction
Conductor : copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE rated at 90 OC
Shield : Copper Tape
Inner sheath :PVC
Armored :Galvanized Steel Wire.
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Rated voltage:6.35/11KV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D for Three Core
Armoured Power Cable Standard
International: IEC 60502-2, IEC 60228,
China: GB/T 12706, (GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Certificate
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 500m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Armoured Power Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Covering Thickness | Steel Wire Dia. | Sheath Thickness | Approx Overall Diameter of Cable | Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃)Ω /km | Testing Voltage A.C |
| mm2 | pc/mm | mm | mm | mm | mm | mm | kg/km | Ω /km | kV/5min |
| 3 × 25 | 7/2.14 | 3.4 | 1.3 | 2.5 | 2.3 | 43.2 | 3726 | 1.2 | 21 |
| 3 × 35 | 7/2.52 | 3.4 | 1.3 | 2.5 | 2.4 | 46.2 | 4699 | 0.868 | 21 |
| 3 × 50 | 10/2.52 | 3.4 | 1.4 | 2.5 | 2.5 | 48.9 | 5395 | 0.641 | 21 |
| 3 × 70 | 14/2.52 | 3.4 | 1.4 | 2.5 | 2.6 | 52.6 | 6309 | 0.443 | 21 |
| 3 × 95 | 19/2.52 | 3.4 | 1.5 | 2.5 | 2.8 | 56.7 | 7435 | 0.320 | 21 |
| 3 × 120 | 24/2.52 | 3.4 | 1.6 | 2.5 | 2.9 | 59.9 | 8449 | 0.253 | 21 |
| 3 × 150 | 30/2.52 | 3.4 | 1.6 | 2.5 | 3.0 | 63.5 | 9683 | 0.206 | 21 |
| 3 × 185 | 37/2.52 | 3.4 | 1.7 | 2.5 | 3.1 | 67.2 | 11025 | 0.1640 | 21 |
| 3 × 240 | 48/2.52 | 3.4 | 1.8 | 3.15 | 3.2 | 72.1 | 13907 | 0.1250 | 21 |
| 3 × 300 | 61/2.52 | 3.4 | 1.9 | 3.15 | 3.7 | 77.7 | 16312 | 0.1000 | 21 |
| 3 × 400 | 61/2.97 | 3.4 | 2.0 | 3.15 | 3.7 | 85.3 | 19943 | 0.0778 | 21 |
Armoured Power Cable Details
PACKING AND SHIPPING
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
