0.6/1kV Steel Tape XLPE Insulated Armoured Power Cable

China 0.6/1kV Steel Tape XLPE Insulated Armoured Power Cable supplier
0.6/1kV Steel Tape XLPE Insulated Armoured Power Cable supplier

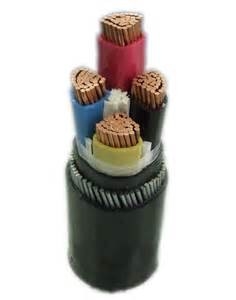

Large Image :  0.6/1kV Steel Tape XLPE Insulated Armoured Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: VV22 0.6/1kV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: Aluminum Armoured Cable Rated Voltage: 0.6/1kV
Insulation: XLPE Conductor: AL / Aluminum
Armour: Galvanized Steel Tape Sizes: 1~ 630mm2
Cores: 3+1 Cores Sheath Material: PVC
High Light:

0.6/1kV armoured power cable

,

Steel Tape armoured power cable

,

630mm2 xlpe insulated power cable

0.6/1kV Steel Tape Armoured Electrical Cable Aluminum Conductor XLPE Insulated LV Cable 3x240+1x120mm2

Used for power transmission and distribution line with voltage rated at 35kV and below.



Applications



1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.

2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.

3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]

4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)





StandardS



IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.





The Rated Voltage(kV)



1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35




Number of cores



1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.





Technique property



1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D



Note



1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.



Cable Structure



Conductor Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228
Circular solid AL Conductor, Class 1 as per IEC 60228
Insulation  PVC
Separate Screen Copper Tape, Al-foil tape (MV must, LV optional)
Filler Fillers strip, Yarn, or Paper
Wrapping Tape Non woven
Inner Covering Extruded PVC
Armour Steel Wire
Overall Sheath

PVC







PACKING AND SHIPPING


We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.





AFTER-SERVICE COMMITMENT



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
