Payment & Shipping Terms:
|Product Name:||Armored Power Cable||Conductor:||Copper|
|Insulation:||XLPE(cross-linked Polyethylene) Rated At 90 OC||Inner Sheath:||PVC Or As Request|
|Armored:||Steel Tape.||Sheath:||PVC Or FR-PVC Type ST2 To IEC 60502, Black|
XLPE steel tape armoured cable,
0.7mm insulation steel tape armoured cable,
Double Layer steel armored cable

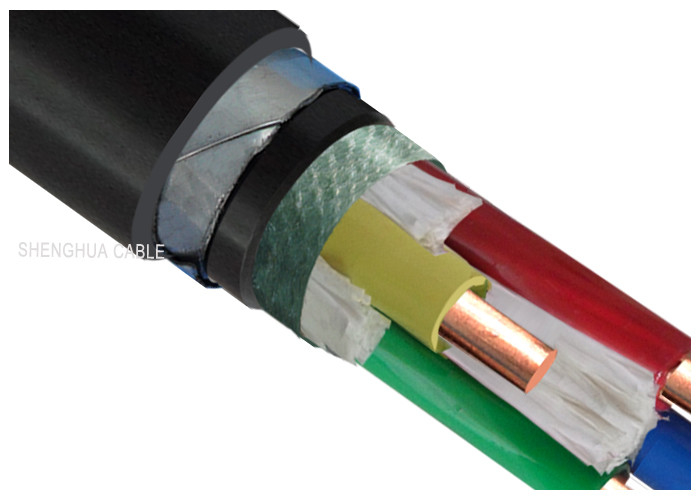

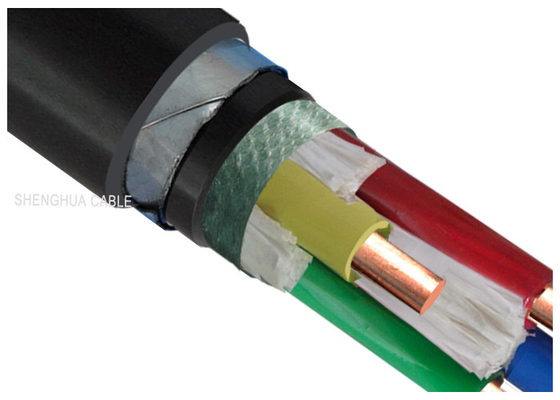

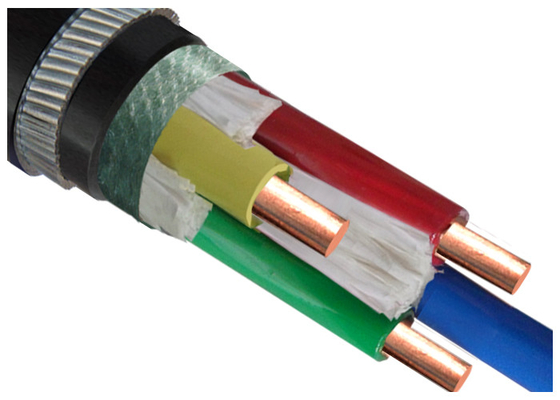

Copper Conductor XLPE Insulation Double layer Steel Tape Armored Power Cable
Armored Power Cable Construction
Conductor :Stranded Copper Conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner sheath :PVC or as request
Armored : Steel Tape.
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Armored Power Cable Application
Apply to shafts,water and soil,able to bear the larger positive pressure. Underground directly
Armored Power Cable Standard
International: IEC 60502, IEC 60228,
China: GB/T 12706, (GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D for multi core
Armored Power Cable Certificate
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 500m
Price term: FOB shanghai or as request.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Armored Power Cable Specifications
Armoured Cable Wiring Details
PACKING AND SHIPPING
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
