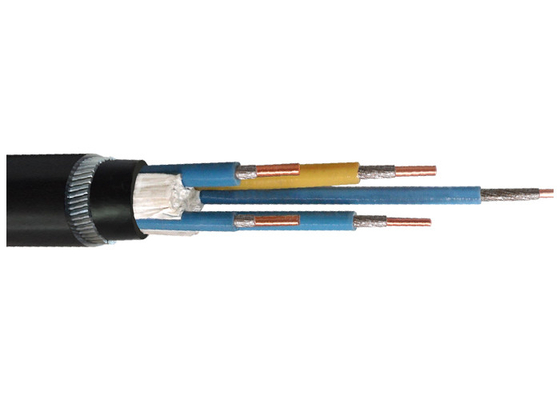

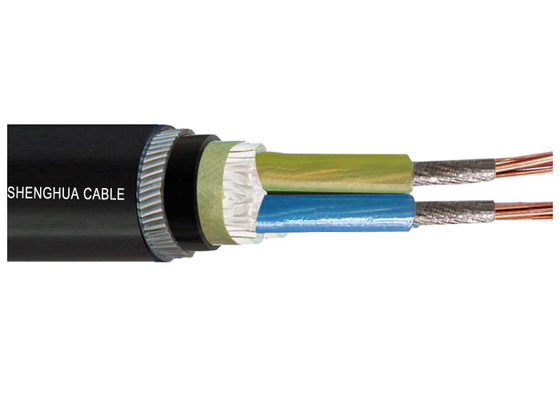

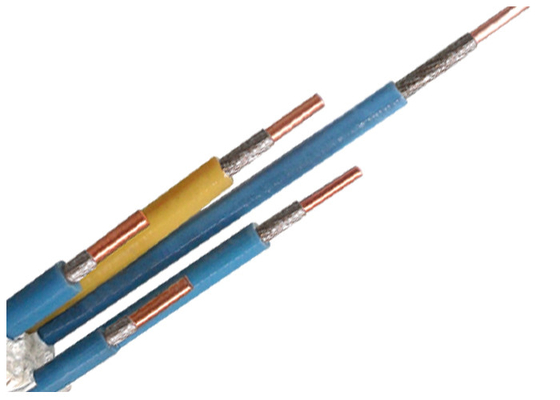

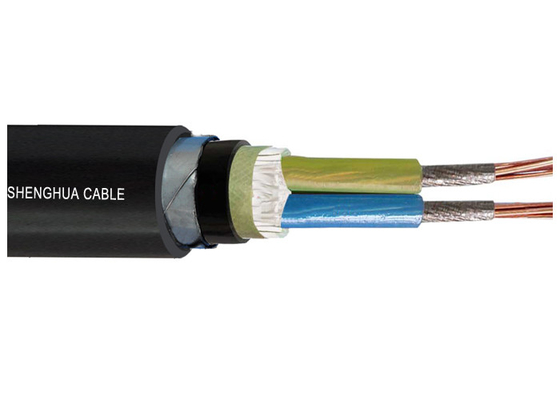

1000V Muticores Fire Rated Power Cable for voice alarm systems

China 1000V Muticores Fire Rated Power Cable for  voice alarm systems supplier
1000V Muticores Fire Rated Power Cable for  voice alarm systems supplier 1000V Muticores Fire Rated Power Cable for  voice alarm systems supplier 1000V Muticores Fire Rated Power Cable for  voice alarm systems supplier 1000V Muticores Fire Rated Power Cable for  voice alarm systems supplier

Large Image :  1000V Muticores Fire Rated Power Cable for voice alarm systems

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHANCABLE
Certification: CE/KEMA/ISO/PCCC
Model Number: WDZAN-YJY

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: 0.15-35.9 US$/M
Packaging Details: Customized
Delivery Time: As per requirement
Supply Ability: 10KM per Week
Detailed Product Description
Rated Voltage: 600/1000V Insulation: XLPE Or PVC
Sample: 0.2m Free Of Charge Number Of Cores: 1,2,3,4,5
Application: Indoor And Outdoor Sheath: LSOH PO
Color: Black, Orange
High Light:

muticores fire rated power cable

,

1000V fire rated power cable

,

1000V muticore power cable

Multi Cores Cu conductor Mica Tape Wrapping XLPE Insulated Fire Resistant Cable BS8519





Rated Voltage: 0.6/1KV

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2



Our fire performance cables are specifically designed for augmented fire resistance in applications including the delivery of power and auxiliary control in fire alarm systems, voice alarm systems, and emergency lighting systems including those applications designed to meet BS5266. These cables will form part of the requirements of BS8519 for the installation of fire-resistant power and control cable systems for life safety and fire-fighting applications.



Applications



These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

And tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.





Product name Fire resistant marine power cu xlpe cable Code letter
Conductor Stranded or tinned copper wire -
Insulation Cross-linked polyethylene (XLPE) J
Filler and tape Non-hygroscopic material -
Inner sheath Polyvinyl chloride (PVC) V
Screen or Armor Galvanized steel wire braided 9
Outer sheath Polyvinyl chloride (PVC) 2
Fire resistant performance Fire resistant N
Flame retardant Bunched flame retardant S
Low smoke and halogen free Smoke, halogen and toxicity A
Rated voltage 0.6/1kV
Operating temperature -15℃~+90℃
Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS
Test voltage 3.5kV/5min
Application shipboard,offshore building, lighting and control system
Number of cores*section 7*1.5
Weight 418kg/km
Outer diameter 16.3-18.7mm



Technical data



Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%





Certificates



CE, RoHS, CCC, KEMA and more others at request





Specifications

N0.of cores×Nominal cross sectional area(mm²) Caculated diameter Caculated weight
Nom(mm) Max(mm) CJV92NSA(kg/km)
2*1 11.7 13.7 180
2*1.5 12.1 14.2 198
2*2.5 13.3 15.6 245
2*4 14.3 16.8 295
2*6 15.9 18.3 374
2*10 18.2 20.9 521
2*16 20.4 23 690
2*25 22.6 25.4 941
2*35 25.4 28.6 1219
2*50 29 32.6 1599
2*70 32.4 36.5 2119
2*95 37.2 40.9 2859
2*120 42 46.2 3583
2*150 45.8 50.4 4289
2*185 50.4 55.4 5234
3*1 12.2 14.3 203
3*1.5 12.9 15.2 232
3*2.5 14 16.5 286
3*4 15 17.6 350
3*6 16.8 19.3 460
3*10 19.2 22.1 640
3*16 21.9 24.6 887
3*25 24.3 27.3 1232
3*35 27.3 30.7 1609
3*50 30.7 34.5 2085
3*70 35.3 38.8 2905
3*95 40.2 44.2 3876
3*120 44.5 49 4766
3*150 48.6 53.5 5737
3*185 53.6 59 7039
Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41   26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61   34 45
4×6+1×4 0.7 1.8 19.1 535 3.08   43 57
4×10+1×6 0.7 1.8 22.1 760 1.83   60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15   83 105
4×25+1×16 0.7 1.8 29 1556 0.727   105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524   125 155
4×50+1×25 1 2.1 36 2689 0.387   160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268   200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193   245 270
4×120+1×70 1.2 2.5 51 6165 0.153   285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124   325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991   375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754   440 450



Operating characteristics



1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;

2. Installing temperature of cable should not be less than 0°C;

3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;

4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
