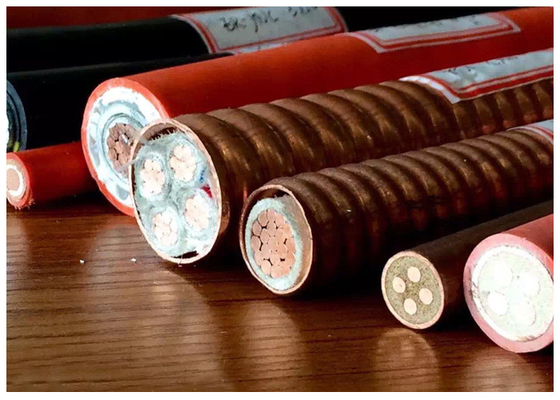

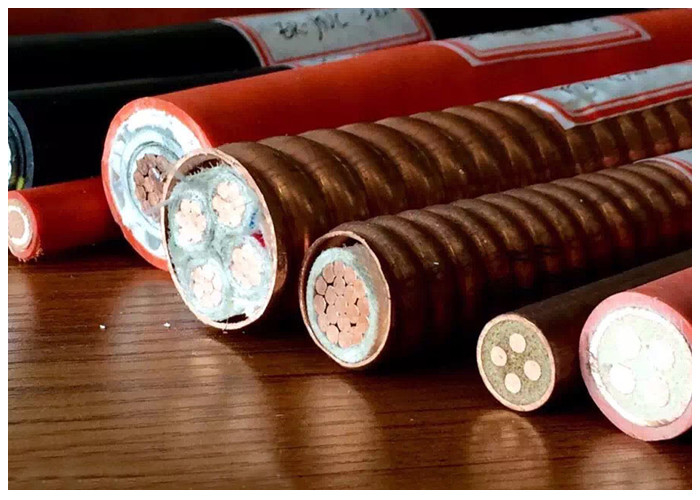

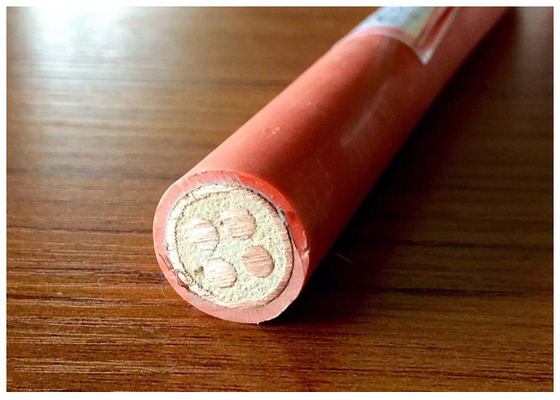

High Temperature Non-Metallic Sheath 4x70+1x35 Sqmm Lszh Fire Rated Power Cable For Construction
1.Application
Railway Stations, Road &Rail Tunnels, Public Lighting, Car Parks, Public Service Building, Shopping Malls, Airport,Underground Rail Systems, Schools, Hospitals, Hotels, Theatres, Churches, Power Station, Boiler Houses, Oil &Gas Station, Emergency Lifts and so on.
2.Standards
International: GB/T 19216 BS6387 IEC 60331
Cable Type:BBTRZ-0.6/1KV 4x70+1X35SQMM
3.Technical Data
Rated voltage:0.6/1KV
Fire Resistant to 750 ℃/3 Hours.
Commercial Items: MOQ:500m
Price Term: FOB Shanghai or CIF as request.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Drum
4.Specifications:
| Nom. Cross-section of conductor | Insulation Thickness | Sheath Thickness | Norminal Aluminum Sleeve sheath | Nominal thickness of Outer Covering | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) |
| mm2 | mm | mm | mm2 | mm | mm | Kg/km | Ω/km |
| 1x95 | 1.0 | 1.2 | 57.0 | 1.7 | 30.1 | 1682 | 0.193 |
| 1x120 | 1.0 | 1.2 | 63.0 | 1.7 | 31.7 | 1956 | 0.153 |
| 1x150 | 1.3 | 1.2 | 71.9 | 1.8 | 34.3 | 2334 | 0.124 |
| 1x185 | 1.3 | 1.2 | 78.3 | 1.8 | 36.0 | 2745 | 0.0991 |
| 1x240 | 1.3 | 1.2 | 109.1 | 1.9 | 38.9 | 3422 | 0.0754 |
| 1x300 | 1.3 | 1.2 | 120.0 | 2.0 | 41.4 | 4106 | 0.0601 |
| 2x95 | 1.0 | 1.2 | 114.0 | 2.0 | 47.4 | 4039 | 0.193 |
| 2x120 | 1.0 | 1.2 | 126.1 | 2.1 | 50.4 | 4741 | 0.153 |
| 2x150 | 1.3 | 1.2 | 143.7 | 2.2 | 55.8 | 5752 | 0.124 |
| 2x185 | 1.3 | 1.2 | 156.5 | 2.3 | 60.0 | 6809 | 0.0991 |
| 2x240 | 1.3 | 1.2 | 218.3 | 2.5 | 66.0 | 8547 | 0.0754 |
| 2x300 | 1.3 | 1.2 | 240.0 | 2.7 | 71.0 | 10230 | 0.0601 |
| 3x2.5 | 0.7 | 1.2 | 34.0 | 1.8 | 28.2 | 742 | 7.41 |
| 3x4 | 0.7 | 1.2 | 37.8 | 1.8 | 29.3 | 837 | 4.61 |
| 3x6 | 0.7 | 1.2 | 41.9 | 1.8 | 30.3 | 942 | 3.08 |
| 3x10 | 0.7 | 1.2 | 50.4 | 1.8 | 32.7 | 1183 | 1.83 |
| 3x16 | 0.7 | 1.2 | 58.5 | 1.8 | 34.9 | 1449 | 1.15 |
| 4x150 | 1.3 | 1.2 | 287.4 | 2.3 | 67.2 | 8953 | 0.124 |
| 4x185 | 1.3 | 1.2 | 313.1 | 2.4 | 71.7 | 11075 | 0.0991 |
| 4x240 | 1.3 | 1.2 | 436.6 | 2.6 | 78.6 | 14023 | 0.0754 |
| 4x300 | 1.3 | 1.2 | 479.9 | 2.6 | 84.6 | 16890 | 0.0601 |
| 5x95 | 1.0 | 1.2 | 285.0 | 2.3 | 62.4 | 7852 | 0.193 |
| 5x120 | 1.0 | 1.2 | 315.2 | 2.4 | 66.9 | 9332 | 0.153 |
| 5x150 | 1.3 | 1.2 | 359.3 | 2.6 | 71.4 | 11389 | 0.124 |
| 5x185 | 1.3 | 1.2 | 391.3 | 2.8 | 78.8 | 13652 | 0.0991 |
| 5x240 | 1.3 | 1.2 | 545.7 | 3.0 | 86.5 | 17307 | 0.0754 |
| 5x300 | 1.3 | 1.2 | 599.9 | 3.2 | 93.1 | 20876 | 0.0601 |
5.Main proformance fo cable
1.Great fire resistive performance
2.Strong overload protection
3.Large current carrying capaticy
4.High working temperature
5.Waterproof,anticorrosion and explosion-proof property
6.Excellen Shielding property
7.Stong radiation resistance
8.Long service life
9.Small outer diamter and light weight
10.Environmental protection and safety
11.High mechanical strength
12.Bending performance
13.Perfect eatthing
