XLPE Flame Resistant Cable Muticore For Power Transmission

China XLPE  Flame Resistant Cable Muticore For Power Transmission supplier
XLPE  Flame Resistant Cable Muticore For Power Transmission supplier

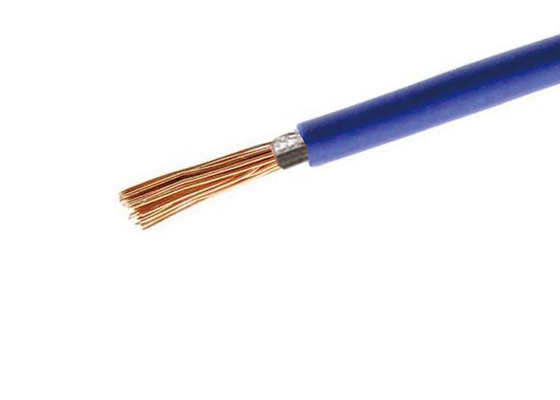

Large Image :  XLPE Flame Resistant Cable Muticore For Power Transmission

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHANCABLE
Certification: CE/KEMA/ISO/PCCC
Model Number: NH-YJV

Payment & Shipping Terms:

Minimum Order Quantity: 200m
Packaging Details: 100m/roll or customized
Delivery Time: As per requirement
Supply Ability: 10KM per Week
Detailed Product Description
Function: Fire Proof Rated Voltage: 600/1000V
Sheath Color: Orange Or As Per Requirement Core: Muti-core
Working Temperature: 90℃ Packing: Drums
High Light:

XLPE flame resistant cable

,

Multicore flame resistant cable

,

XLPE flame retardant power cable

CU/XLPE/PVC 0.6/1kV fire retardant fire resistant FRC Power Cable





Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.



Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Rated Voltage: 0.6/1KV

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2

Application:

These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels



Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation: XLPE or LSZH compound

Sheath: LSZH compound

Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement

Production Capacity : 20 kilometer/ day

MOQ : 5000 meters for small size, 1000 meters for big size

Certificates

CE, RoHS, CCC, KEMA and more others at request



Operating characteristics



1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;

2. Installing temperature of cable should not be less than 0°C;

3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;

4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)

5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.



XLPE  Flame Resistant Cable Muticore For Power Transmission 0
