ABC Aluminum Aerial Bundled Cable ASTM Standard Cross Linking Sheath

China ABC Aluminum Aerial Bundled Cable ASTM Standard Cross Linking Sheath supplier
ABC Aluminum Aerial Bundled Cable ASTM Standard Cross Linking Sheath supplier

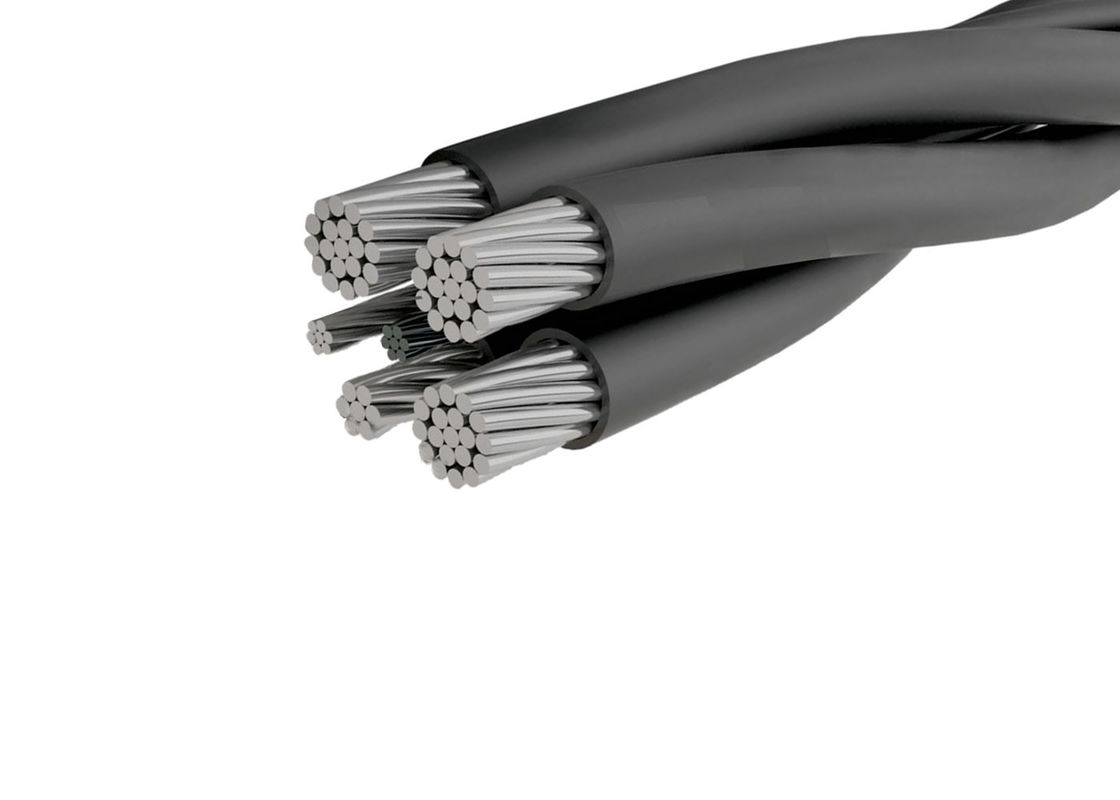

Large Image :  ABC Aluminum Aerial Bundled Cable ASTM Standard Cross Linking Sheath

Product Details:

Place of Origin: China
Brand Name: SHANCABLE
Certification: CE ISO ICEA SABS ASTM
Model Number: ABC-AAAC/XLPE

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: 0.19-10.99USD/M
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 1000km per Month
Detailed Product Description
Rated Voltage: 0.6/1KV Cors No.: 2,3,4,5
Insulation: PE Or PVC HS Code: 8544492100
Type: Insulated Sheath Material: Cross Linking
High Light:

ASTM Standard Aerial Bundled Cable

,

Cross linking Aerial Bundled Cable

,

ASTM Standard Aerial Aluminum Cable

0.6/1kV /Triplex or Quadruplex Service Aluminum ABC Cable ASTM Standard



Applications
To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75° C maximum for polyethylene Insulation or 90° C maximum for crosslinked insulation.

Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC or ACSR or AAAC neutral messenger.

Standards

B-230 Aluminum Wire 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474

Code Word:
AAC Neutral-Messenger: Patella Oyster Clam Murex Purpura Nassa Melita Portunus Nannynose
ACSR NEUTRAL-MESSENGER: Paludina Voluta Whelk Periwinkle Conch Neritina Cenia Runcina Triton Mursia Zuzara Limpet 6201 ALLOY NEUTRAL-MESSENGER: Minex Hippa Prawn Barnacle Shrimp Gammarus Leda Dungenese Cyclops Flustra Lepas



Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV 4
Laying temperature °C min. -20
Operating temperature °C -30 ~ +80
Conductor temperature °C max. +80
Short-circuit temperature °C/s max. +130 /5
Bending radius (min.)   18 × ø of cable



Packaging & DeliveryPackaging Details:Delivery Detail:

Aerial Insulation Line,
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.

Shipped in 15 days after payment





Item Description Phase conductor Approx. Overall
Diameter & Weight
NO.Stranding &
Diameter
XLPE
Thickness
Diameter
(mm)
Weight
(kg/km)
1 1x10mm 2 7/1.35 1 6.15 44
2 1x16mm 2 7/1.70 1.2 7.62 68
3 1x25mm 2 7/2.22 1.2 8.72 96
4 1x35mm 2 7/2.59 1.4 10.14 134
5 1x50mm 2 7/3.10 1.4 11.24 180
6 1x70mm 2 19/2.22 1.4 12.94 242
7 1x95mm 2 19/2.59 1.4 14.54 318
8 1x120mm 2 19/2.97 1.6 16.36 403
9 1x150mm 2 37/2.33 1.8 18.38 504
10 1x185mm 2 37/2.59 2 20.4 622
11 1x240mm 2 37/2.97 2.2 23.22 802
12 1x300mm 2 37/3.36 2.4 25.64 996



This cable permits longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
