Quadruplex PVC Drop URD XLPE Power Cable AAAC conductor

China Quadruplex PVC Drop URD XLPE Power Cable  AAAC conductor supplier
Quadruplex PVC Drop URD XLPE Power Cable  AAAC conductor supplier

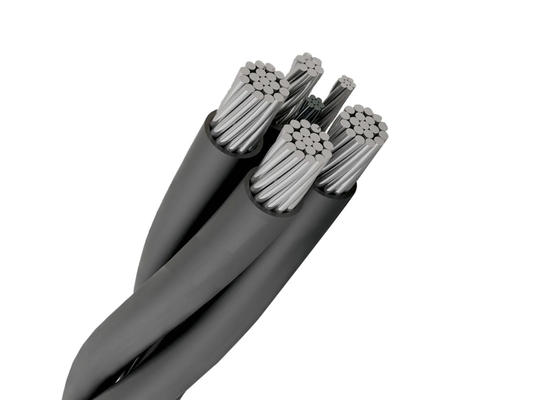

Large Image :  Quadruplex PVC Drop URD XLPE Power Cable AAAC conductor

Product Details:

Place of Origin: Shanghai ,China
Certification: CE ISO ICEA SABS ASTM
Model Number: ABC-AAAC/XLPE

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: 0.19-10.99USD/M
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: As per schedule
Payment Terms: L/C, T/T
Supply Ability: 1000km per Month
Contact Now
Detailed Product Description
Conductor: AAC Or AAAC Insulation: PE Or PVC
Conductor Working Degree: 75℃ Rated Voltage: 0.6/1KV
Cors No.: 2,3,4,5 Application: Overhead Power Transmission Lines
High Light:

Quadruplex XLPE Power Cable


PVC Drop XLPE Power Cable


AAAC conductor PVC Drop Cable

Quadruplex PVC Drop Urd Power XLPE Electric Aluminum ABC Cable

Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201 alloy. One conductor is manufactured with an extruded ridge for phase identification.

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Note :
Designated sizes are : ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for 6201.Conductor temperature of 90°C for XLR 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun. To determine current ampacity by conductor size, please consult The National Electric Code, latest edition


Number of cores and cross-section Shape of conductor Conductor diameter Nominal insulation thickness Diameter over insulation Nominal thickness sheath Outer diameter (approx.) Bending radius (min.) Weight (approx.)
    (approx.)   (approx.)
mm2   mm mm mm mm mm mm kg/km
1x35/16 RM 7.2 3.4 15.3 2.5 24 360 904
1x50/16 RM 8.2 3.4 16.3 2.5 26 390 1039
1x70/16 RM 9.8 3.4 17.9 2.5 27 405 1271
1x95/16 RM 11.3 3.4 19.4 2.5 29 435 1530
1x120/16 RM 12.8 3.4 20.9 2.5 30 450 1809
1x150/25 RM 14.2 3.4 22.3 2.5 32 480 2158
1x185/25 RM 15.8 3.4 23.9 2.5 33 495 2524
1x240/25 RM 18.3 3.4 26.4 2.5 36 540 3117
1x300/25 RM 20.7 3.4 28.8 2.5 38 570 3786
1x400/35 RM 23.3 3.4 31.4 2.5 41 615 4750
1x500/35 RM 26.5 3.4 34.6 2.5 44 660 5786



Quadruplex PVC Drop URD XLPE Power Cable  AAAC conductor 0
