| Conductor: | Aluminium | Insulation: | XLPE Or PVC |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Core Nos: | 3 Phase +1 Bare Natural |
| Application: | Overhead Power Transmission Lines | Sheath: | No |
| High Light: | Quadruplex Service Drop Cable,Quadruplex Aerial Bundled Cables,XLPE abc electrical cable |
||
| Packaging Details: | Overhead XLPE insulation ABC aerial bundled cable Wooden Drum |
|---|---|
| Delivery Detail: | 15 days |

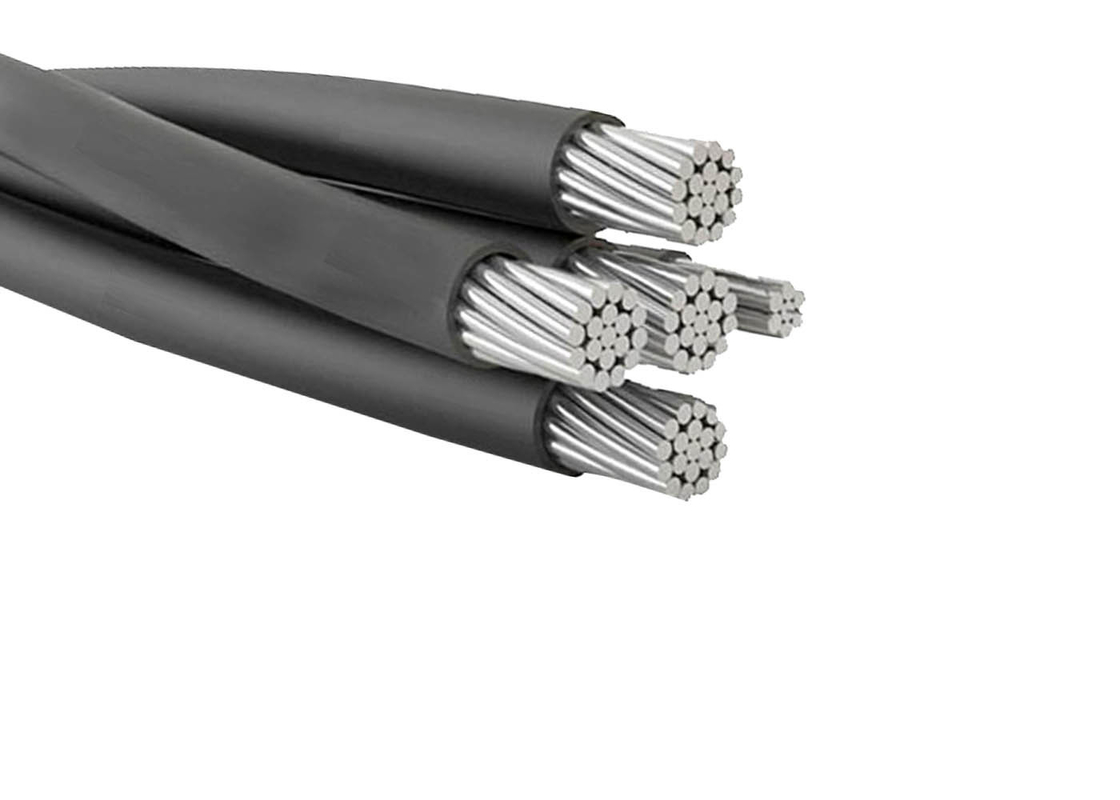

Overhead XLPE insulation ABC aerial bundled cable
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
2. Standards
QUADRUPLEX SERVICE DROP-ALUMINIUM CONDUCTOR
ASTM B-231,B-232 and B-399, ICEA S -79-474
| Code Name | Phase Conductors | Bare Natural | Weight | Ampacity | ||||||
| Size & No. of | Insulation | Nominal Diamerer | Size & No. of | Rated Stength | XLPE | Aluminum | Total | |||
| Wires | Thickness | Bare | OD | |||||||
| mm | mm | mm | Wires | kg | kg/km | kg/km | kg/km | A | ||
| AAC | ||||||||||
| Quarter | 6-Solid | 1.143 | 4.115 | 6.401 | 6-7 | 255.371 | 63 | 149 | 211 | 78 |
| Clydesdale | 4-Solid | 1.143 | 5.182 | 7.468 | 4-7 | 399.613 | 79 | 237 | 315 | 103 |
| Pinto | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 399.613 | 89 | 237 | 326 | 136 |
| Mustang | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 612.347 | 115 | 377 | 491 | 158 |
| Shire | 1-19 | 1.524 | 8.433 | 11.481 | 1-19 | 743.888 | 171 | 475 | 646 | 158 |
| Libyan | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 902.644 | 192 | 598 | 790 | 182 |
| Criollo | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-19 | 902.644 | 193 | 598 | 793 | 182 |
| Orioff | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 1138.511 | 217 | 754 | 973 | 210 |
| Percheron | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 1138.511 | 220 | 754 | 976 | 210 |
| Mongolian | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 1378.914 | 249 | 951 | 1199 | 242 |
| Hanoverian | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-19 | 1378.914 | 251 | 951 | 1204 | 242 |
| Singlefoot | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 1737.250 | 286 | 1199 | 1485 | 279 |
| Oldenburg | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 1737.250 | 289 | 1199 | 1490 | 279 |
