|Product:||Copper Armoured Cable||Conductor:||Copper|
|Standard:||IEC, BS, IS, VDE||Warranty:||2 Years|
Stranded Single Core Armoured Cable,
XLPE Insulation Single Core Armoured Cable,
Custom Stranded Bare Copper

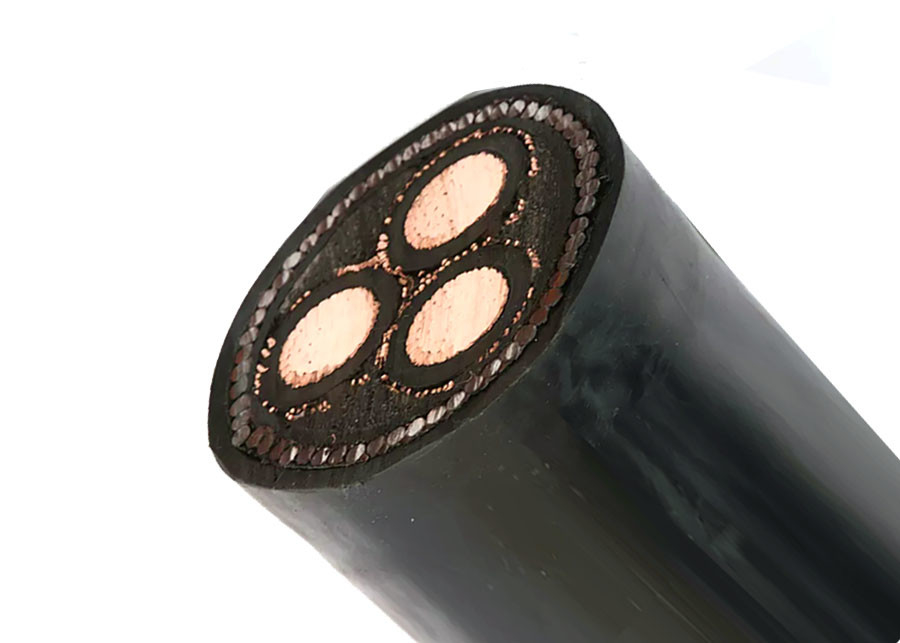

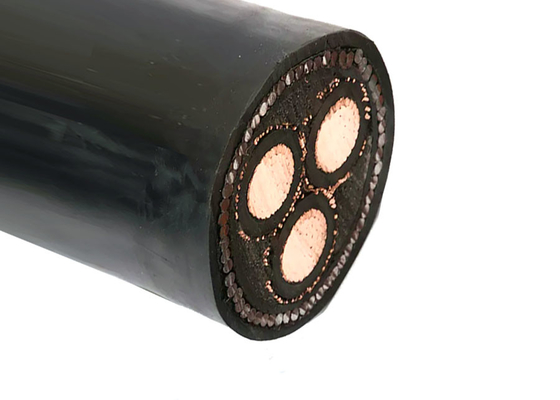

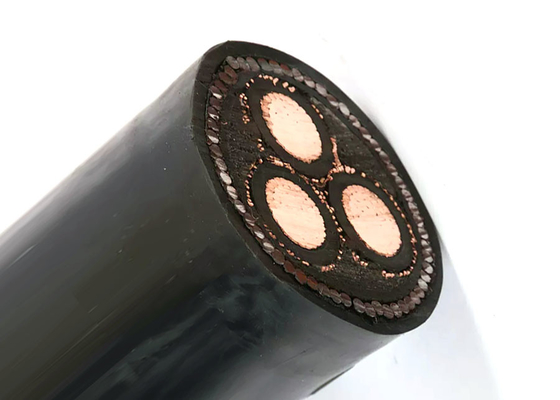

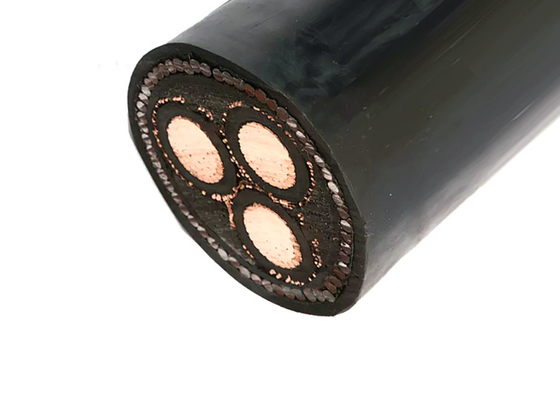

Construction: 1 ..... stranded bare copper, 2 ..... inner layer of semi-conducting material, 3 ..... core insulation of cross-linked polyethylene, 4 ..... outer layer of semi-conducting material, 5 ..... semi-conducting tape, 6 ..... screen of copper wires, 7 ..... Fillers strip, Yarn, or Paper, 8 ..... Non woven Wrapping tape or Flame Retardant, 9 ..... Extruded PVC Inner Covering, 10 .... Aluminum Wire Armoured, 11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Application: 1. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. 2. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges. 3. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.
Standards: International: IEC 60502-2, IEC 60228; China: GB/T 12706.2-2008; Other standards such as BS,DIN and ICEA upon request
|MV(6 to 35kv) Power Cable|
|Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV||No.of Core||Conductor cross-section area(mm2)|
|xlpe insulation||1 core 3 core||10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm|
|Cu core||Al Core|
|YJV, N2XSY;PVC sheathed power cable||YJLV, NA2XSY; PVC sheathed power cable|
|YJV22;steel tape armoured,PVC sheathed power cable||YJLV22;steel tape armoured,PVC sheathed power cable|
|YJV32,YJV42;steel wire armoured ,PVC sheathed power cable||YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable|
|Test voltage||6 / 10 kV||[kV]||21 / 5 min.|
|12 / 20 kV||[kV]||42 / 5 min.|
|18 / 30 kV||[kV]||63 / 5 min.|
|Temperature range||in motion||-20°C till +90°C|
|fixed||-20°C till +90°C|
|Operating temperature||short circuit||°C||250|
|Short circuit time||max.||[sec]||5|
|Bending radius||min.||x diameter||15|
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
|Nom. Cross-section of conductor||Strands No./Dia. Of Conductor||Insulation Thickness||Inner Sheath Thickness||Dia. Of Armor Wire||Sheath Thickness||Approx. O.D.||
|Max. D.C Resistance of Conductor (20 ℃)||Testing Voltage A.C||Current Rating|
|mm2||pc/mm||mm||mm||mm||mm||(mm)||kg/km||Ω /km||kV/5min||In air (A)||In soil(A)|
|1 × 50||10/2.52||8||1.2||2.0||2.2||40.0||2857||0.387||63||210||215|
|1 × 70||14/2.52||8||1.2||2.0||2.3||42.0||3166||0.268||63||260||265|
|1 × 95||19/2.52||8||1.2||2.0||2.3||43.0||3499||0.193||63||320||315|
|1 × 120||24/2.52||8||1.3||2.5||2.4||46.0||4264||0.153||63||370||360|
|1 × 150||30/2.52||8||1.4||2.5||2.5||48.0||4671||0.124||63||420||405|
|1 × 185||37/2.52||8||1.4||2.5||2.5||49.0||5121||0.0991||63||480||455|
|1 × 240||48/2.52||8||1.4||2.5||2.6||52.0||5780||0.0754||63||565||530|
|1 × 300||61/2.52||8||1.4||2.5||2.7||54.0||6482||0.0601||63||650||595|
|1 × 400||61/2.97||8||1.4||2.5||2.8||58.0||7657||0.0470||63||755||680|
|1 × 500||61/3.23||8||1.6||2.5||2.9||61.0||8894||0.0366||63||865||765|
PACKING AND SHIPPING
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
