Product Details:
Payment & Shipping Terms:
|
Insulation Material: | Xlpe | Type: | Medium Voltage |
---|---|---|---|
Application: | Power Station | Conductor Material: | Copper |
Jacket: | LSOH Sheath | Standard: | IEC 60502 |
Warranty: | 2 Years Since Delivery | Port: | Shanghai Port |
High Light: | XLPE Low Smoke Zero Halogen Cable,Power Station LSOH Sheath Cable,Copper Low Smoke Halogen Free Cable |

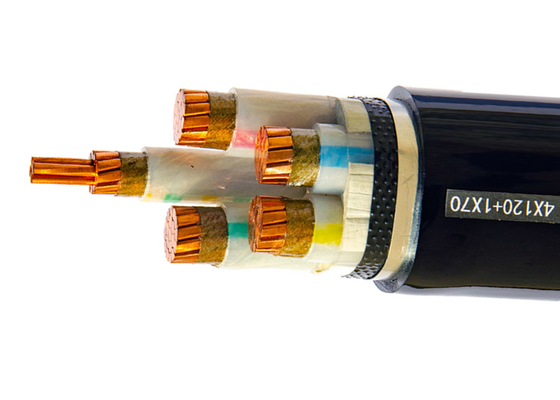

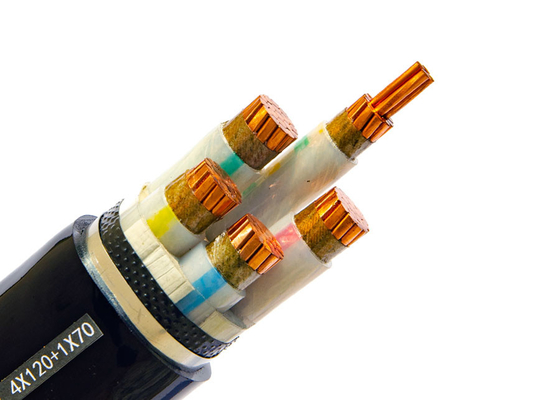

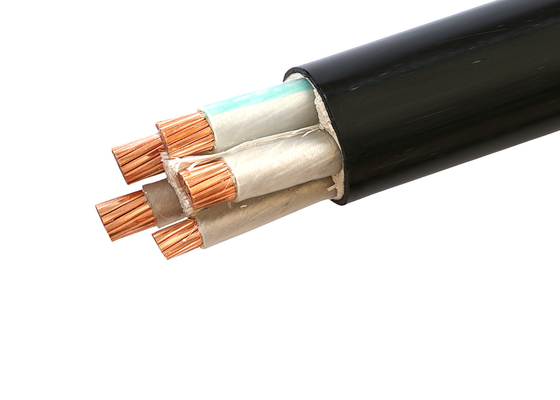

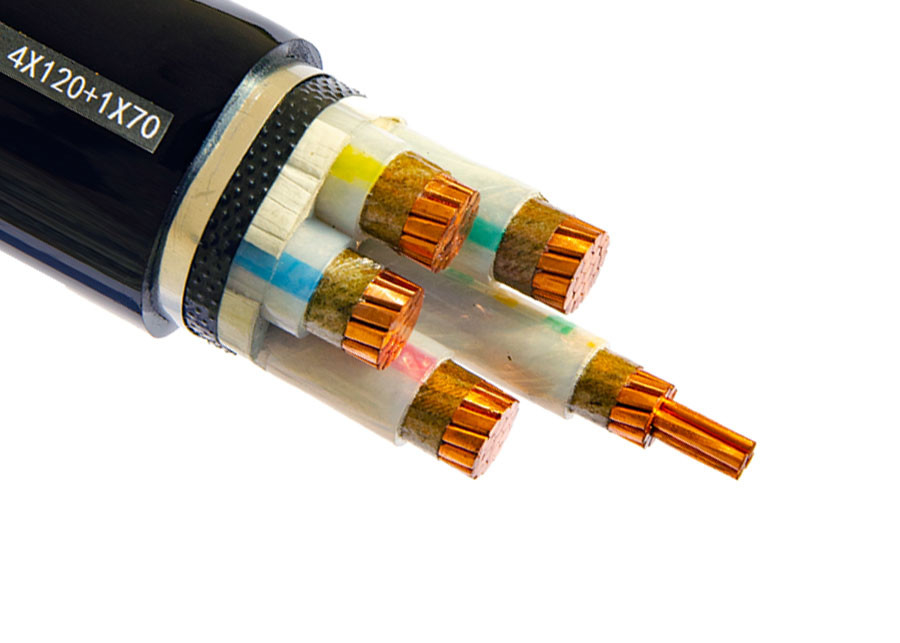

Cu/XLPE Insulation LSOH sheath Power Cable
Constructions
Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2
Insulation: XLPE(cross-linked polyethylene) rated at 90°C
Binder: Non-woven
Overall Sheath: PVC type ST2 to IEC 60502, black
Steel Wire Armoring
Overall Sheath: PVC type ST2 to IEC 60502, black. LSOH sheath
Applications
Suitable for use in power distribution lines with rated voltage 1.8/3kV. For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Certificates
CE, RoHS, CCC, KEMA and more others at request
