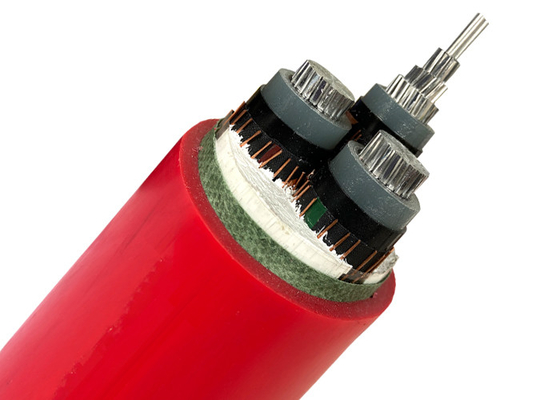

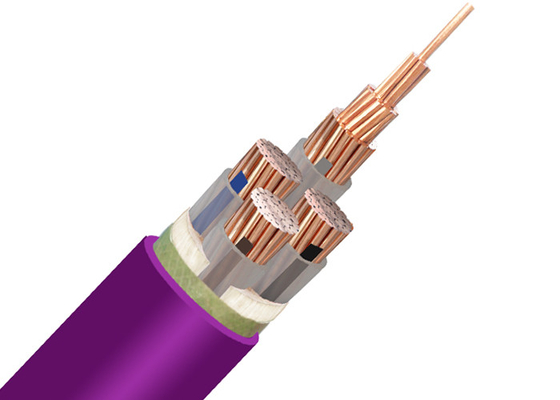

Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly

China Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly supplier
Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly supplier Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly supplier

Large Image :  Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHENGHUA CABLE
Certification: PCCC/ISOCE/KEMA
Model Number: WDZA-YJY22

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD 0.5-50/meter
Packaging Details: Fumigation Wooden Drum or Customized
Delivery Time: As per schedule
Supply Ability: 500km per month
Contact Now
Detailed Product Description
Core: 1,2,3,4,5 Standard: IEC60502-1,IEC61034,IEC60754
Function: Environmental Protection Size: 1.5-800mm2
Color: Customized Sample: Free
Rated Voltage: 0.6/1kV Corporation: Shenghua Group
Brand: Sh Cable
Highlight:

1.5mm2 Low Smoke Zero Halogen Cable

,

Shenghua Low Smoke Zero Halogen Cable

,

800mm2 Low Smoke Zero Halogen Cable

Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly

Engineering Resilience: Shanghai Shenghua’s Armoured LSZH Cables for Critical Infrastructure​​

​​Shanghai Shenghua Cable (Group) Co., Ltd.​​—ranked ​​China’s #2 cable manufacturer​​ with ​​110,000 km annual output​​ and ​​21 ISO-certified factories​​—redefines safety in high-risk environments with its ​​Steel Tape Armoured LSZH Cables​​. Combining military-grade mechanical protection, zero-halogen innovation, and extreme thermal resilience, these IEC 60502-certified solutions safeguard tunnels, hospitals, and industrial plants against fire hazards and physical damage.

​​1. Triple-Layer Defense: Armor, Safety & Sustainability​​

  • ​​Military-Grade Armor​​:
    • ​​Galvanized Steel Tape Armour (WDZA-YJY23)​​: Absorbs crushing forces up to ​​3,500 N/cm²​​ in underground installations, outperforming unarmored cables by 70% in impact resistance

    • ​​Helical Application​​: Prevents armor separation during bending (15×[d+D] radius), ideal for serpentine tunnel layouts

  • ​​Zero-Halogen Safety​​:
    • ​​LSZH Sheath & Insulation​​: Eliminates toxic fumes (HCl, dioxins), reducing smoke density to ​​<20% of PVC cables​​ and ensuring ​​≥60% light transmittance​​ for evacuation clarity

    • ​​Eco-Compliance​​: Halogen-free materials align with RoHS and EU CPR, with combustion gas pH ​​≥4.3​​ to prevent equipment corrosion.
  • ​​Thermal Resilience​​:
    • ​​90°C Continuous Operation​​ + ​​250°C Short-Circuit Survival (5s)​​: Ensures functionality in boiler rooms or chemical plants during overloads

​​2. Technical Superiority & Global Certifications​​

​​Key Specifications (WDZA-YJY23 Series)​​:

​​Conductor (mm²)​​ ​​Armor Thickness​​ ​​Max. Current (Air)​​ ​​Smoke Density​​ ​​Weight (kg/km)​​
1.5 0.2mm 22A <20 Ds* 81
185 0.8mm 375A <10 Ds* 7,271
400 1.2mm 720A <5 Ds* 40,640
Ds = Smoke density (IEC 61034 standard)



​​Certifications​​:

  • ​​Safety​​: IEC 60332-1 (Flame Spread), IEC 61034 (Low Smoke), IEC 60754 (Zero Halogen)

  • ​​Global Compliance​​: CE, KEMA, GB/T 12706, with optional BS/DIN/ICEA marks

​​3. Applications Redefining Safety​​

  • ​​Underground Tunnels & Subways​​:
    • Steel tape armor resists rockfall and excavation machinery, while LSZH sheath prevents toxic smoke in confined spaces (e.g., ​​1×400mm²​​ supports 695A in soil)

  • ​​Hospital ICU/Operating Theaters​​:
    • ​​BS 7870 Color Coding​​: Brown/Blue/Grey sheathing simplifies phase identification during emergency maintenance

    • ​​Ultra-Low Resistance​​: 0.047 Ω/km (400mm²) minimizes energy loss for life-support systems

  • ​​Chemical Plants & Oil Rigs​​:
    • XLPE insulation withstands hydrocarbon exposure, while armor prevents corrosion from acidic vapors

​​4. Why Global Engineers Trust Shenghua?​​

  • ​​Manufacturing Prowess​​:
    • ​​Zero-Defect Policy​​: 100% IACS copper purity and XLPE insulation tested per IEC 60502

    • ​​Scalable Production​​: ​​10-day global delivery​​ of moisture-sealed reels with BOPP tape + hygroscopic caps.
  • ​​Sustainability Commitment​​:
    • ​​95% Recyclable Materials​​: Copper conductors and steel armor reduce landfill waste vs. PVC alternatives

  • ​​Unmatched Support​​:
    • ​​24/7 Technical Hotline​​: 72-hour global response for urgent infrastructure project

Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.


Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.


XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G


Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.


Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.


Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request


   Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%


Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C


mm mm kg/km
kV/5min In air(A) In soil(A)
1×1.5 0.7 1.8 7.7 81 12.1 3.5 22 33
1×2.5 0.7 1.8 8.1 95 7.41 3.5 31 43
1×4 0.7 1.8 8.5 114 4.61 3.5 41 56
1×6 0.7 1.8 9.1 137 3.08 3.5 52 70
1×10 0.7 1.8 10.3 189 1.83 3.5 71 94
1×16 0.7 1.8 11.4 254 1.15 3.5 92 120
1×25 0.9 1.8 12.9 359 0.727 3.5 120 155
1×35 0.9 1.8 13.9 460 0.524 3.5 150 185
1×50 1 1.8 15.5 606 0.387 3.5 180 220
1×70 1.1 1.8 17.5 808 0.268 3.5 230 270
1×95 1.1 1.8 19.3 1047 0.193 3.5 285 320
1×120 1.2 1.8 20.9 1289 0.153 3.5 335 365
1×150 1.4 1.8 22.9 1582 0.124 3.5 385 410
1×185 1.6 1.8 25.2 1927 0.0991 3.5 450 465
1×240 1.7 1.8 27.7 2458 0.0754 3.5 535 540
1×300 1.8 1.9 31.2 3096 0.0601 3.5 620 610
1×400 2 2 34.8 4064 0.047 3.5 720 695
2×1.5 0.7 1.8 12.7 172 12.1 3.5 20 27
2×2.5 0.7 1.8 13.5 204 7.41 3.5 26 35
2×4 0.7 1.8 14.6 247 4.61 3.5 34 45
2×6 0.7 1.8 15.5 300 3.08 3.5 43 57
2×10 0.7 1.8 18.1 418 1.83 3.5 60 77
2×16 0.7 1.8 20.2 563 1.15 3.5 83 105
2×25 0.9 1.8 23.2 800 0.727 3.5 105 125
2×35 0.9 1.8 25.2 1026 0.524 3.5 125 155
2×50 1 1.8 28.4 1338 0.387 3.5 160 185
2×70 1.1 1.9 32.6 1804 0.268 3.5 200 225
2×95 1.1 2 36.4 2343 0.193 3.5 245 270
2×120 1.2 2.1 39.8 2891 0.153 3.5 285 310
2×150 1.4 2.3 44.2 3639 0.124 3.5 325 345
2×185 1.6 2.4 49 4458 0.0991 3.5 375 390
2×240 1.7 2.6 54.4 5696 0.0754 3.5 440 450
3×1.5 0.7 1.8 13.4 203 12.1 3.5 20 27
3×2.5 0.7 1.8 14.2 246 7.41 3.5 26 35
3×4 0.7 1.8 15.2 304 4.61 3.5 34 45
3×6 0.7 1.8 16.4 376 3.08 3.5 43 57
3×10 0.7 1.8 19.1 534 1.83 3.5 60 77
3×16 0.7 1.8 21.4 737 1.15 3.5 83 105
3×25 0.9 1.8 24.7 1063 0.727 3.5 105 125
3×35 0.9 1.8 26.9 1380 0.524 3.5 125 155
3×50 1 1.9 30.5 1837 0.387 3.5 160 185
3×70 1.1 2 35 2490 0.268 3.5 200 225
3×95 1.1 2.1 39.1 3325 0.193 3.5 245 270
3×120 1.2 2.3 42.8 4120 0.153 3.5 285 310
3×150 1.4 2.4 47.5 5092 0.124 3.5 325 345
3×185 1.6 2.6 52.9 6245 0.0991 3.5 375 390
3×240 1.7 2.7 58.5 7996 0.0754 3.5 440 450
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
5×1.5 0.7 1.8 13.6 284 12.1 3.5 20 27
5×2.5 0.7 1.8 16.6 349 7.41 3.5 26 35
5×4 0.7 1.8 17.9 441 4.61 3.5 34 45
5×6 0.7 1.8 19.3 558 3.08 3.5 43 57
5×10 0.7 1.8 22.8 809 1.83 3.5 60 77
5×16 0.7 1.8 25.6 1135 1.15 3.5 83 105
5×25 0.9 1.8 29.7 1664 0.727 3.5 105 125
5×35 0.9 1.9 32.6 2194 0.524 3.5 125 155
5×50 1 2 37.3 3013 0.387 3.5 160 185
5×70 1.1 2.1 42.9 4101 0.268 3.5 200 225
5×95 1.1 2.2 48.2 5382 0.193 3.5 245 270
5×120 1.2 2.4 52.7 6685 0.153 3.5 285 310
5×150 1.4 2.5 58.5 8363 0.124 3.5 325 345
5×185 1.6 2.7 65.1 10268 0.0991 3.5 375 390
5×240 1.7 3.1 72.3 13167 0.0754 3.5 440 450
3×2.5+1×1.5 0.7 1.8 15.2 254 7.41 3.5 26 35
3×4+1×2.5 0.7 1.8 16.3 352 4.61 3.5 34 45
3×6+1×4 0.7 1.8 17.5 440 3.08 3.5 43 57
3×10+1×6 0.7 1.8 20.1 616 1.83 3.5 60 77
3×16+1×10 0.7 1.8 22.8 865 1.15 3.5 83 105
3×25+1×16 0.7 1.8 26.2 1248 0.727 3.5 105 125
3×35+1×16 0.9 1.8 28 1557 0.524 3.5 125 155
3×50+1×25 1 1.9 32 2120 0.387 3.5 160 185
3×70+1×35 1.1 2.1 36.7 2863 0.268 3.5 200 225
3×95+1×50 1.1 2.2 41.1 3854 0.193 3.5 245 270
3×120+1×70 1.2 2.4 45.6 4857 0.153 3.5 285 310
3×150+1×70 1.4 2.5 49.4 5808 0.124 3.5 325 345
3×185+1×95 1.6 2.7 55.1 7271 0.0991 3.5 375 390
3×240+1×120 1.7 2.9 60 9269 0.0754 3.5 440 450
3×2.5+2×1.5 0.7 1.8 18.8 299 7.41 3.5 26 35
3×4+2×2.5 0.7 1.8 20 405 4.61 3.5 34 45
3×6+2×4 0.7 1.8 21.5 513 3.08 3.5 43 57
3×10+2×6 0.7 1.8 24 708 1.83 3.5 60 77
3×16+2×10 0.7 1.8 27.1 1006 1.15 3.5 83 105
3×25+2×16 0.7 1.8 30.8 1448 0.727 3.5 105 125
3×35+2×16 0.9 1.9 32.6 1760 0.524 3.5 125 155
3×50+2×35 1 2.1 37.3 2427 0.387 3.5 160 185
3×70+2×35 1.1 2.2 42.1 3338 0.268 3.5 200 225
3×95+2×50 1.1 2.4 47.8 4426 0.193 3.5 245 270
3×120+2×70 1.2 2.5 52.6 5645 0.153 3.5 285 310
3×150+2×70 1.4 2.7 56.5 6587 0.124 3.5 325 345
3×185+2×95 1.6 2.9 62.9 8225 0.0991 3.5 375 390
3×240+2×120 1.7 3.1 69.3 10453 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41 3.5 26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61 3.5 34 45
4×6+1×4 0.7 1.8 19.1 535 3.08 3.5 43 57
4×10+1×6 0.7 1.8 22.1 760 1.83 3.5 60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15 3.5 83 105
4×25+1×16 0.7 1.8 29 1556 0.727 3.5 105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524 3.5 125 155
4×50+1×25 1 2.1 36 2689 0.387 3.5 160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268 3.5 200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193 3.5 245 270
4×120+1×70 1.2 2.5 51 6165 0.153 3.5 285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124 3.5 325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991 3.5 375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754 3.5 440 450


About Shenghua:


The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world

5000--Employees

1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount


Shenghua Power Cable Steel Tape Armoured Low Smoke Zero Halogen Cable 1.5mm2 - 800mm2 Eco Friendly 0







Tag:

low smoke halogen free cable,

lszh power cable,

low smoke zero halogen wire

Contact Details
Shanghai Shenghua Cable (Group) Co., Ltd.

Contact Person: Mayling Zhao

Tel: +86 15901866124

Send your inquiry directly to us (0 / 3000)

About Us
XLPE Insulated Power Cable
Armoured Electrical Cable
Low Smoke Zero Halogen Cable
Contact Us
Mobile Site
Privacy Policy | China Good Quality XLPE Insulated Power Cable Supplier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
Privacy Policy | China Good Quality XLPE Insulated Power Cable Supplier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
