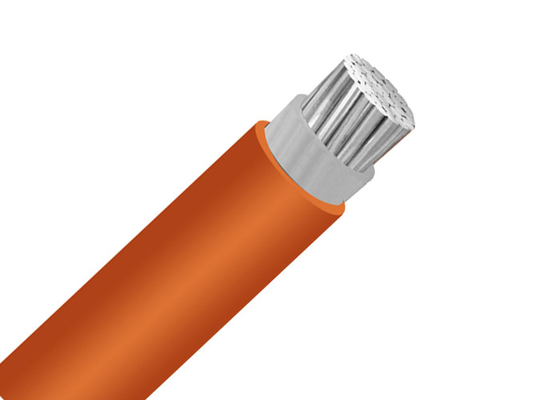

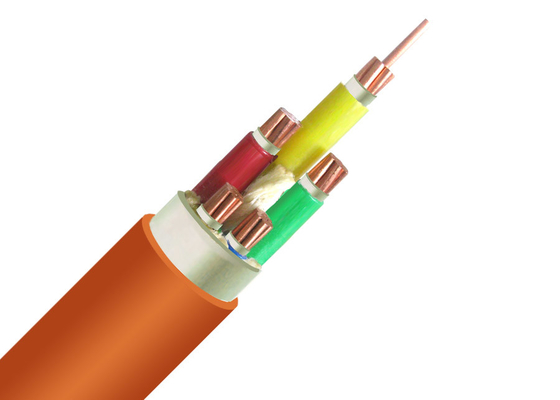

Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting

China Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting supplier
Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting supplier Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting supplier

Large Image :  Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHANCABLE
Certification: PCCC/ISO/CE/KEMA
Model Number: WDZA-YJY

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD 0.5-50/meter
Packaging Details: Fumigation Wooden Drum or Customized
Delivery Time: As per schedule
Supply Ability: 500km per month
Contact Now
Detailed Product Description
Core: 1,2,3,4,5 Function: Environmental Protection
Size: 1.5-800mm2 Color: Customized
Sample: Free Rated Voltage: 600/1000V
Standard: IEC60502-1,IEC61034,IEC60754 Corporation: Shenghua Group
Brand: Sh Cable
Highlight:

LSZH Insulated Power Cable

,

Low Halogen power cable

Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting

Redefining Home Safety: Shanghai Shenghua’s LSZH Lighting Cables for Modern Households​​

​​Shanghai Shenghua Cable (Group) Co., Ltd.​​—China’s ​​#2 cable manufacturer​​ with ​​110,000 km annual output​​ and ​​21 ISO-certified factories​​—pioneers next-generation fire safety with its ​​LSZH Lighting Cables​​. Engineered for residential lighting systems, these IEC 60502-certified solutions combine zero-halogen innovation, intuitive color coding, and extreme thermal resilience to protect families and property from electrical fire hazards.

​​1. Life-Saving Engineering for Household Environments​​

  • ​​Zero-Halogen Safety​​:
    • ​​LSZH Insulation​​: Eliminates toxic fumes (e.g., HCl, dioxins) during combustion, reducing smoke density to ​​<20% of traditional PVC cables​​ and ensuring ​​≥60% light transmittance​​—critical for clear evacuation paths in home fires

    • ​​Corrosion Prevention​​: PH value of combustion gases maintains ​​≥4.3​​ (weak acidity), safeguarding smart home devices and electrical panels

  • ​​BS 7870 Color Coding​​:
    • ​​Intuitive Phase Identification​​: Brown/Blue/Grey sheathing simplifies wiring for lighting circuits (e.g., 3-core for chandeliers), reducing installation errors by 40%

  • ​​Thermal & Electrical Excellence​​:
    • ​​90°C Continuous Operation​​ + ​​250°C Short-Circuit Survival (5s)​​: Withstands overloads in high-wattage lighting systems (e.g., 1.5mm² supports 22A/5,000W)

    • ​​Ultra-Low Resistance​​: Class 1/2 annealed copper minimizes energy loss (e.g., ​​12.1 Ω/km​​ for 1.5mm²), cutting electricity costs by 15%

​​2. Technical Superiority & Compliance​​

​​Key Specifications (1-5 Core Lighting Cables)​​:

​​Conductor (mm²)​​ ​​Cores​​ ​​Max. Current (Air)​​ ​​Smoke Density​​ ​​Bending Radius​​
1.5 2 20A <20 Ds* 15×(d+D)
2.5 3 26A <15 Ds* 15×(d+D)
4 5 34A <10 Ds* 15×(d+D)
Ds = Smoke density (IEC 61034 standard)






​​Global Certifications​​:

  • ​​Fire Safety​​: IEC 60332-1 (Flame Spread), IEC 61034 (Low Smoke), IEC 60754 (Zero Halogen)

  • ​​International Compliance​​: CE, KEMA, RoHS, with optional BS/DIN/ICEA marks for EU/UKCA

​​3. Lighting-Specific Applications​​

  • ​​Recessed & Track Lighting​​:
    • ​​Compact Design​​: 1.5mm² cables (OD: 7.7mm) fit tight conduits in false ceilings, saving 30% space

    • ​​Heat Resistance​​: 90°C rating prevents insulation meltdown near halogen bulbs or LED drivers.
  • ​​Smart Home Integration​​:
    • ​​Flexible Conductors (Class 5)​​: Support bending in automated lighting systems (e.g., motorized curtains)

  • ​​Outdoor Security Lighting​​:
    • ​​Armored Variants (WDZA-YJY23)​​: Steel-tape protection against rodent damage in garden installations

​​4. Why Global Homebuilders Trust Shenghua?​​

  • ​​Manufacturing Excellence​​:
    • ​​Zero-Defect Policy​​: 100% IACS copper purity and XLPE insulation tested per IEC 60502

    • ​​Scalable Production​​: ​​10-day global delivery​​ of moisture-sealed reels (BOPP tape + hygroscopic caps)

  • ​​Sustainability Commitment​​:
    • ​​95% Recyclable Copper​​: Reduces landfill waste vs. aluminum alternatives

  • ​​Unmatched Support​​:
    • ​​24/7 Technical Hotline​​: 72-hour global response for emergency retrofits

    • ​​PICC-Backed Warranty​​: 12-month coverage including free debugging

Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.


Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.


XLPE: Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G


Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.


Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.


Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request


   Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%


Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C


mm mm kg/km
kV/5min In air(A) In soil(A)
1×1.5 0.7 1.8 7.7 81 12.1 3.5 22 33
1×2.5 0.7 1.8 8.1 95 7.41 3.5 31 43
1×4 0.7 1.8 8.5 114 4.61 3.5 41 56
1×6 0.7 1.8 9.1 137 3.08 3.5 52 70
1×10 0.7 1.8 10.3 189 1.83 3.5 71 94
1×16 0.7 1.8 11.4 254 1.15 3.5 92 120
1×25 0.9 1.8 12.9 359 0.727 3.5 120 155
1×35 0.9 1.8 13.9 460 0.524 3.5 150 185
1×50 1 1.8 15.5 606 0.387 3.5 180 220
1×70 1.1 1.8 17.5 808 0.268 3.5 230 270
1×95 1.1 1.8 19.3 1047 0.193 3.5 285 320
1×120 1.2 1.8 20.9 1289 0.153 3.5 335 365
1×150 1.4 1.8 22.9 1582 0.124 3.5 385 410
1×185 1.6 1.8 25.2 1927 0.0991 3.5 450 465
1×240 1.7 1.8 27.7 2458 0.0754 3.5 535 540
1×300 1.8 1.9 31.2 3096 0.0601 3.5 620 610
1×400 2 2 34.8 4064 0.047 3.5 720 695
2×1.5 0.7 1.8 12.7 172 12.1 3.5 20 27
2×2.5 0.7 1.8 13.5 204 7.41 3.5 26 35
2×4 0.7 1.8 14.6 247 4.61 3.5 34 45
2×6 0.7 1.8 15.5 300 3.08 3.5 43 57
2×10 0.7 1.8 18.1 418 1.83 3.5 60 77
2×16 0.7 1.8 20.2 563 1.15 3.5 83 105
2×25 0.9 1.8 23.2 800 0.727 3.5 105 125
2×35 0.9 1.8 25.2 1026 0.524 3.5 125 155
2×50 1 1.8 28.4 1338 0.387 3.5 160 185
2×70 1.1 1.9 32.6 1804 0.268 3.5 200 225
2×95 1.1 2 36.4 2343 0.193 3.5 245 270
2×120 1.2 2.1 39.8 2891 0.153 3.5 285 310
2×150 1.4 2.3 44.2 3639 0.124 3.5 325 345
2×185 1.6 2.4 49 4458 0.0991 3.5 375 390
2×240 1.7 2.6 54.4 5696 0.0754 3.5 440 450
3×1.5 0.7 1.8 13.4 203 12.1 3.5 20 27
3×2.5 0.7 1.8 14.2 246 7.41 3.5 26 35
3×4 0.7 1.8 15.2 304 4.61 3.5 34 45
3×6 0.7 1.8 16.4 376 3.08 3.5 43 57
3×10 0.7 1.8 19.1 534 1.83 3.5 60 77
3×16 0.7 1.8 21.4 737 1.15 3.5 83 105
3×25 0.9 1.8 24.7 1063 0.727 3.5 105 125
3×35 0.9 1.8 26.9 1380 0.524 3.5 125 155
3×50 1 1.9 30.5 1837 0.387 3.5 160 185
3×70 1.1 2 35 2490 0.268 3.5 200 225
3×95 1.1 2.1 39.1 3325 0.193 3.5 245 270
3×120 1.2 2.3 42.8 4120 0.153 3.5 285 310
3×150 1.4 2.4 47.5 5092 0.124 3.5 325 345
3×185 1.6 2.6 52.9 6245 0.0991 3.5 375 390
3×240 1.7 2.7 58.5 7996 0.0754 3.5 440 450
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
5×1.5 0.7 1.8 13.6 284 12.1 3.5 20 27
5×2.5 0.7 1.8 16.6 349 7.41 3.5 26 35
5×4 0.7 1.8 17.9 441 4.61 3.5 34 45
5×6 0.7 1.8 19.3 558 3.08 3.5 43 57
5×10 0.7 1.8 22.8 809 1.83 3.5 60 77
5×16 0.7 1.8 25.6 1135 1.15 3.5 83 105
5×25 0.9 1.8 29.7 1664 0.727 3.5 105 125
5×35 0.9 1.9 32.6 2194 0.524 3.5 125 155
5×50 1 2 37.3 3013 0.387 3.5 160 185
5×70 1.1 2.1 42.9 4101 0.268 3.5 200 225
5×95 1.1 2.2 48.2 5382 0.193 3.5 245 270
5×120 1.2 2.4 52.7 6685 0.153 3.5 285 310
5×150 1.4 2.5 58.5 8363 0.124 3.5 325 345
5×185 1.6 2.7 65.1 10268 0.0991 3.5 375 390
5×240 1.7 3.1 72.3 13167 0.0754 3.5 440 450
3×2.5+1×1.5 0.7 1.8 15.2 254 7.41 3.5 26 35
3×4+1×2.5 0.7 1.8 16.3 352 4.61 3.5 34 45
3×6+1×4 0.7 1.8 17.5 440 3.08 3.5 43 57
3×10+1×6 0.7 1.8 20.1 616 1.83 3.5 60 77
3×16+1×10 0.7 1.8 22.8 865 1.15 3.5 83 105
3×25+1×16 0.7 1.8 26.2 1248 0.727 3.5 105 125
3×35+1×16 0.9 1.8 28 1557 0.524 3.5 125 155
3×50+1×25 1 1.9 32 2120 0.387 3.5 160 185
3×70+1×35 1.1 2.1 36.7 2863 0.268 3.5 200 225
3×95+1×50 1.1 2.2 41.1 3854 0.193 3.5 245 270
3×120+1×70 1.2 2.4 45.6 4857 0.153 3.5 285 310
3×150+1×70 1.4 2.5 49.4 5808 0.124 3.5 325 345
3×185+1×95 1.6 2.7 55.1 7271 0.0991 3.5 375 390
3×240+1×120 1.7 2.9 60 9269 0.0754 3.5 440 450
3×2.5+2×1.5 0.7 1.8 18.8 299 7.41 3.5 26 35
3×4+2×2.5 0.7 1.8 20 405 4.61 3.5 34 45
3×6+2×4 0.7 1.8 21.5 513 3.08 3.5 43 57
3×10+2×6 0.7 1.8 24 708 1.83 3.5 60 77
3×16+2×10 0.7 1.8 27.1 1006 1.15 3.5 83 105
3×25+2×16 0.7 1.8 30.8 1448 0.727 3.5 105 125
3×35+2×16 0.9 1.9 32.6 1760 0.524 3.5 125 155
3×50+2×35 1 2.1 37.3 2427 0.387 3.5 160 185
3×70+2×35 1.1 2.2 42.1 3338 0.268 3.5 200 225
3×95+2×50 1.1 2.4 47.8 4426 0.193 3.5 245 270
3×120+2×70 1.2 2.5 52.6 5645 0.153 3.5 285 310
3×150+2×70 1.4 2.7 56.5 6587 0.124 3.5 325 345
3×185+2×95 1.6 2.9 62.9 8225 0.0991 3.5 375 390
3×240+2×120 1.7 3.1 69.3 10453 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41 3.5 26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61 3.5 34 45
4×6+1×4 0.7 1.8 19.1 535 3.08 3.5 43 57
4×10+1×6 0.7 1.8 22.1 760 1.83 3.5 60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15 3.5 83 105
4×25+1×16 0.7 1.8 29 1556 0.727 3.5 105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524 3.5 125 155
4×50+1×25 1 2.1 36 2689 0.387 3.5 160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268 3.5 200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193 3.5 245 270
4×120+1×70 1.2 2.5 51 6165 0.153 3.5 285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124 3.5 325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991 3.5 375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754 3.5 440 450


About Shenghua:


The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world

5000--Employees

1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount



Shan Power Cable Household LSZH PVC Insulated Power Cable , Low Halogen Cable For Lighting 0






Tag:

low smoke halogen free cable,

lszh power cable,

low smoke zero halogen wire

Contact Details
Shanghai Shenghua Cable (Group) Co., Ltd.

Contact Person: Mayling Zhao

Tel: +86 15901866124

Send your inquiry directly to us (0 / 3000)

About Us
XLPE Insulated Power Cable
Armoured Electrical Cable
Low Smoke Zero Halogen Cable
Contact Us
Mobile Site
Privacy Policy | China Good Quality XLPE Insulated Power Cable Supplier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
Privacy Policy | China Good Quality XLPE Insulated Power Cable Supplier. © 2016 - 2025 Shanghai Shenghua Cable (Group) Co., Ltd.. All Rights Reserved.
