Standard: | IEC, BS, IS, VDE | Color: | Black |
---|---|---|---|
Rated Voltage: | 0.6/1kV | Material: | Copper |
Feature: | PVC Sheath | Corporation: | Shenghua Group |
Brand: | Sh Cable | ||
Highlight: | underground armoured electrical cable Wire,AWA underground armoured electrical cable Wire,AWA armoured electrical cable Wire |

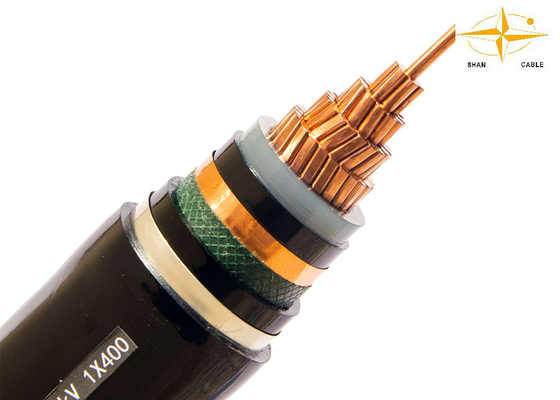

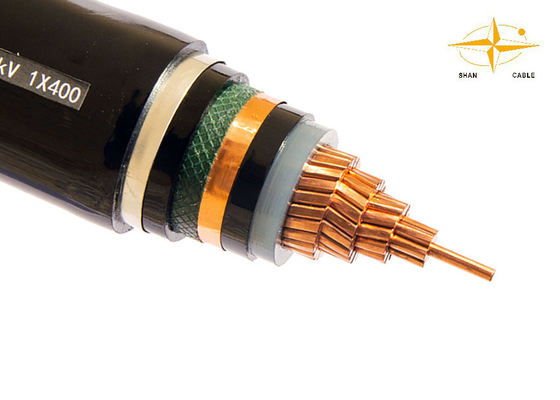

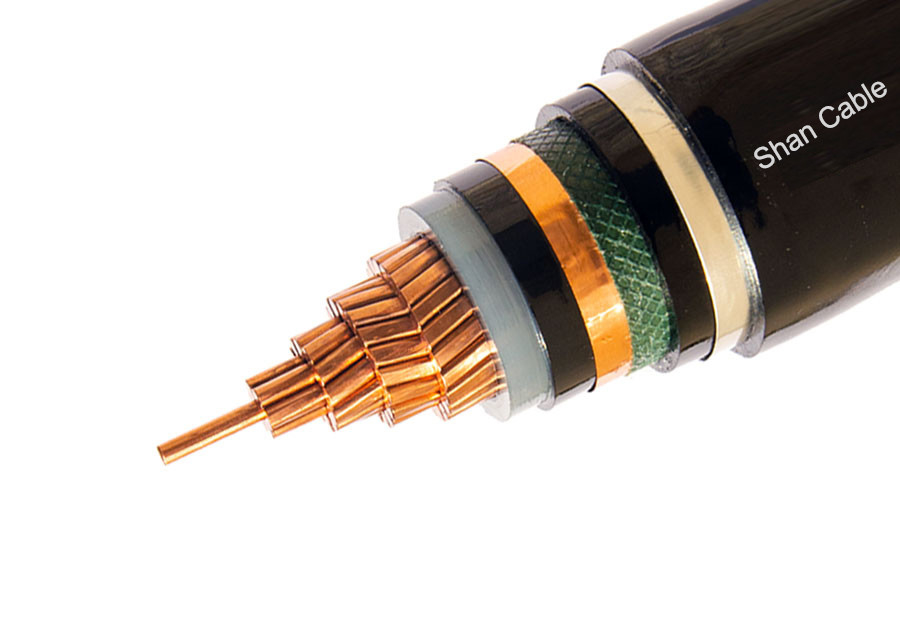

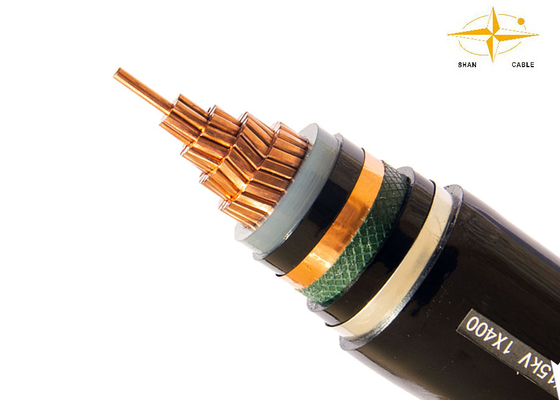

Construction: 1 ..... stranded bare copper, 2 ..... inner layer of semi-conducting material, 3 ..... core insulation of cross-linked polyethylene, 4 ..... outer layer of semi-conducting material, 5 ..... semi-conducting tape, 6 ..... screen of copper wires, 7 ..... Fillers strip, Yarn, or Paper, 8 ..... Non woven Wrapping tape or Flame Retardant, 9 ..... Extruded PVC Inner Covering, 10 .... Aluminum Wire Armoured, 11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Application: 1. Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. 2. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges. 3. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.
Standards: International: IEC 60502-2, IEC 60228; China: GB/T 12706.2-2008; Other standards such as BS,DIN and ICEA upon request
Specifications:
MV(6 to 35kv) Power Cable | |||
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) | |
xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm | |
Cu core | Al Core | ||
YJV, N2XSY;PVC sheathed power cable | YJLV, NA2XSY; PVC sheathed power cable | ||
YJV22;steel tape armoured,PVC sheathed power cable | YJLV22;steel tape armoured,PVC sheathed power cable | ||
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable |
Technical data:
Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
12 / 20 kV | [kV] | 42 / 5 min. | |
18 / 30 kV | [kV] | 63 / 5 min. | |
Temperature range | in motion | -20°C till +90°C | |
fixed | -20°C till +90°C | ||
Operating temperature | short circuit | °C | 250 |
Short circuit time | max. | [sec] | 5 |
Bending radius | min. | x diameter | 15 |
Flammability | standard | EN 50265-2-1 |
Ordering
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Technical Parameter
Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Dia. Of Armor Wire | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
1 × 50 | 10/2.52 | 8 | 1.2 | 2.0 | 2.2 | 40.0 | 2857 | 0.387 | 63 | 210 | 215 |
1 × 70 | 14/2.52 | 8 | 1.2 | 2.0 | 2.3 | 42.0 | 3166 | 0.268 | 63 | 260 | 265 |
1 × 95 | 19/2.52 | 8 | 1.2 | 2.0 | 2.3 | 43.0 | 3499 | 0.193 | 63 | 320 | 315 |
1 × 120 | 24/2.52 | 8 | 1.3 | 2.5 | 2.4 | 46.0 | 4264 | 0.153 | 63 | 370 | 360 |
1 × 150 | 30/2.52 | 8 | 1.4 | 2.5 | 2.5 | 48.0 | 4671 | 0.124 | 63 | 420 | 405 |
1 × 185 | 37/2.52 | 8 | 1.4 | 2.5 | 2.5 | 49.0 | 5121 | 0.0991 | 63 | 480 | 455 |
1 × 240 | 48/2.52 | 8 | 1.4 | 2.5 | 2.6 | 52.0 | 5780 | 0.0754 | 63 | 565 | 530 |
1 × 300 | 61/2.52 | 8 | 1.4 | 2.5 | 2.7 | 54.0 | 6482 | 0.0601 | 63 | 650 | 595 |
1 × 400 | 61/2.97 | 8 | 1.4 | 2.5 | 2.8 | 58.0 | 7657 | 0.0470 | 63 | 755 | 680 |
1 × 500 | 61/3.23 | 8 | 1.6 | 2.5 | 2.9 | 61.0 | 8894 | 0.0366 | 63 | 865 | 765 |
