Multicore Control Cable PVC Sheath IEC Standard

China Multicore Control Cable  PVC Sheath IEC Standard supplier

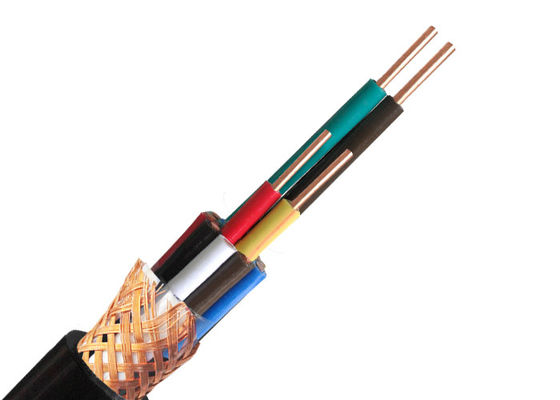

Large Image :  Multicore Control Cable PVC Sheath IEC Standard

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/KEMA/CCC
Model Number: KVV

Payment & Shipping Terms:

Minimum Order Quantity: 2000m
Price: 1.2-29.8$/M
Packaging Details: Wooden Steel Drums
Delivery Time: 10-15 Days
Supply Ability: 50KM per Week
Detailed Product Description
Insualtion: PVC Sheath: PVC
Material: Copper Conductor Type: Class2
Cores No.: 2 To 61 Size: 0.75mm2 To 10mm2
Conductor Shape: Round Color: Black Or Grey
High Light:

multicore Control Cable

,

PVC Sheath Control Cable

,

IEC Standard Control Cable

Multi Cores 1.5mm2 Unarmored Copper Control Cable PVC Sheath IEC standard



Application



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.



Construction



Conductor: Stranded Copper Conductor, class 2

Insualtion: PVC

Sheath: PVC





Standard



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificate



CE, RoHS, CCC, KEMA and more others at request





Specifications


Cross-Sectional
Area mm2
Thickness of
Insulation mm
Thickness of
Steel Tape mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
4x2.5 0.8 2x0.2(0.3) 1.5 13.4 16.1 0.001 7.41 450
4x4 0.8 2x0.2(0.3) 1.5 14.4 17.4 0.0085 4.61 505
4x6 0.8 2x0.2(0.3) 1.5 15.6 18.8 0.007 3.08 619
4x10 1 2x0.2(0.3) 1.7 19.4 23.5 0.0065 1.83 947
5x2.5 0.8 2x0.2(0.3) 1.5 14.3 17.2 0.001 7.41 506
5x4 0.8 2x0.2(0.3) 1.5 15.4 18.6 0.0085 4.61 586
5x6 0.8 2x0.2(0.3) 1.7 16.7 20.2 0.007 3.08 737
5x10 1 2x0.2(0.3) 1.7 21 25.4 0.0065 1.83 1125
7x0.75 0.6 2x0.2(0.3) 1.5 11.8 14.2 0.012 24.5 317
7x1.0 0.6 2x0.2(0.3) 1.5 12.2 14.7 0.011 18.1 425
7x2.5 0.7 2x0.2(0.3) 1.5 13.5 16.3 0.01 7.41 554
7x4 0.8 2x0.2(0.3) 1.5 15.2 18.4 0.0085 4.61 701
7x6 0.8 2x0.2(0.3) 1.7 18 21.7 0.007 3.08 900
7x10 1 2x0.2(0.3) 1.7 22.7 27.4 0.0065 1.83 1397
10x0.75 0.6 2x0.2(0.3) 1.5 13.8 16.7 0.012 24.5 449
10x1 0.6 2x0.2(0.3) 1.5 14.4 17.4 0.011 18.1 558
10x1.5 0.7 2x0.2(0.3) 1.5 16.1 19.5 0.011 12.1 753
10x2.5 0.8 2x0.2(0.3) 1.7 18.8 22.7 0.01 7.41 956
10x4 0.8 2x0.2(0.3) 1.7 20.5 24.8 0.0085 4.61 1203
10x6 0.8 2x0.2(0.3) 1.7 22.5 27.1 0.007 3.08 1534






Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.



FAQ


Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
