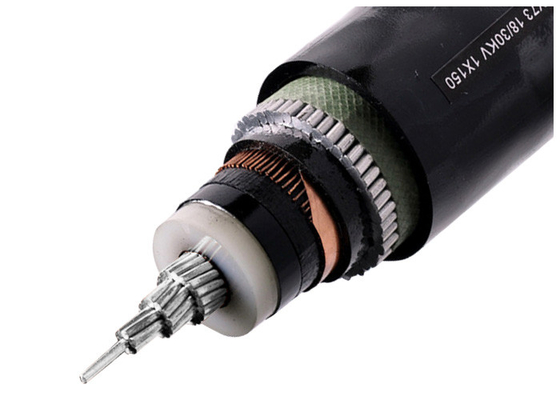

Shanghai Shenghua Cable Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable

Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable

Shanghai Shenghua Cable Group: Revolutionizing Power Distribution with Aluminum Wire Armoured (AWA) Cables for Extreme Terrains​​

As the global medium voltage cables market surges toward ​​$89.3 billion by 2032​​ (CAGR 4.9%)

, infrastructure projects demand cables that conquer harsh environments without compromising efficiency. ​​Shanghai Shenghua Cable Group​​ answers this call with its ​​3.6/6kV Aluminum Wire Armoured (AWA) Cable​​—engineered for underground shafts, vertical drops, and corrosive settings where conventional cables fail.

​​Triple-Shielded Engineering for Demanding Installations​​

1. ​​Conductor Excellence​​

   • ​​Class 2 Copper​​ (IEC 60228): Compact stranded design balances conductivity (e.g., 1×500mm²: 8094 kg/km) and flexibility


   • ​​XLPE Insulation​​: Withstands 90°C continuous operation, 130°C emergencies, and ​​250°C short circuits (5s)​​—outperforming PVC by 300% lifespan



2. ​​Armor Innovation​​

   • ​​Aluminium Wire Armour (AWA)​​: 30% lighter than steel tape, resisting corrosion in saline/chemical environments while bearing mechanical pressure


   • ​​Bending Radius​​: Compact ​​15× cable OD​​ enables tight turns in shafts and tunnels



3. ​​Eco-Safe Sheathing​​

   • ​​PVC ST2 Sheath​​: Black outer layer compliant with IEC 60502, offering UV/Oil resistance for surface-exposed sections



​​Certified Global Performance​​

• ​​Standards​​: IEC 60502, GB/T 12706.1-2008, with CE/RoHS/KEMA certifications


• ​​Safety​​: LSOH sheath option available (per IEC 60502-2) to reduce toxic emissions in confined spaces



​​Applications Where Gravity Meets Grit​​

• ​​Vertical Shafts​​: AWA tensile strength supports hanging installations (e.g., mining elevators).
• ​​Flood-Prone Zones​​: Water-blocking design for underground ducts (tested at -0°C ambient)


• ​​Renewable Energy​​: XLPE resists thermal stress in solar farm trenches and wind turbine foundations.

​​Technical Superiority at Scale​​

​​Why Shenghua Dominates Global Projects?​​

• ​​Market Position​​: China’s #2 cable manufacturer with ​​6 production bases​​ and ​​$500M+ annual export​​
  1

  4
  .
• ​​Supply Chain Agility​​:
  • ​​10-day delivery​​ for 500km orders—faster than industry average.
  • Moisture-sealed wooden reels with BOPP tape
    4
    .
• ​​Service Commitment​​:
  • ​​PICC-backed 12-month warranty​​ including free debugging.
  • ​​24/7 support​​: 72-hour global response (Shanghai: 24 hours)

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black

CODE Designation:

YJ: XLPE insulation

V: PVC sheath

72: Aluminum wire armoring

Applications:

Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and

moderate pulling force.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Brief technical Specification:
