Product Details:
Payment & Shipping Terms:
|
| Model Name: | Shielded Instrument Cable | Conductor Type: | Copper Or Tinned Copper |
|---|---|---|---|
| Size: | 0.5,0.75,1.0,1.5sqmm | Nos.of Cores: | 1~38 |
| Insulation Color: | Any Color | Sheath Color: | Customization |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | Shielded instrumentation Tray Cable,Distribution Equipments Instrumentation Tray Cable,38 Core Instrumentation Tray Cable |
||

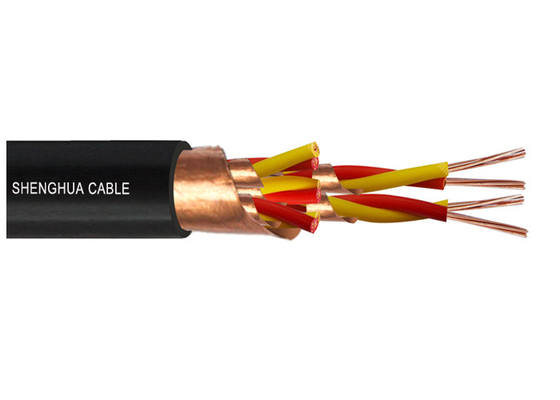

Shielded Instrumentation Tray Cable 1 - 38 Core For Distribution Equipments
In power plants, petrochemical facilities, and automated factories, EMI interference and signal crosstalk cause 42% of control system failures—triggering equipment shutdowns, data corruption, and safety hazards. Shanghai Shenghua Power Group Cable eliminates these risks with its Shielded Instrumentation Tray Cables, engineered for multi-layer EMI defense, extreme-temperature resilience, and IEC-certified reliability in 450/750V to 1000V distribution systems where signal precision is non-negotiable.
Military-Grade EMI/RFI Shielding:
Arctic-to-Desert Resilience:
Mechanical Fortification:
Shenghua’s tray cables comply with:
| Model | Shielding Type | Armor | Cores | Temp Range |
|---|---|---|---|---|
| DJYVP3 | Overall tape | None | 1-38 | -40°C to 90°C |
| DJYP3VP3 | Individual + overall tape | None | 1-38 | -40°C to 90°C |
| DJYVP3-32 | Overall tape | Steel wire | 1-19 | -40°C to 90°C |
| DJYP3VP3-32 | Individual + overall tape | Steel wire | 1-19 | -40°C to 90°C |
Voltage Rating: 300/500V to 600/1000V DC • Bending Radius: 6× OD (12× for armored)
Zero-Defect Manufacturing:
Rapid Customization & Support:
Global Deployment Legacy:
Application
This product applies for connecting wire of electric appliance,apparatus
or computer,used in distribution eqwipments with rated voltage up to
and including A.C.450/750V or D.C.1000V.
Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times
Use condition
The cable is approved to operate upon fixed-installation or
moveable using in ambient temperature from -40 ℃ to 50 ℃ ,
relative humidity not larger than 80%and operating temperature
of core not higher than 70 ℃ as well as avoiding direct high-
temperature radiation or contact.
The temperature shall never less than 0℃ when the cable being
laid.
Permissible bending radius:not less than 6 times of overall
diameter for unarmored cable;not less than 12 times of overall
diameter for armored or screened cable;not less than 6 times of
overall diameter for screened flexible cable.
Type Optional:
| No. | Type | Instrumenation Cable Description |
| 1 | DJYVP3 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding |
| 2 | DJYVP3R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding |
| 3 | DJYP3V | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding |
| 4 | DJYP3VR | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding |
| 5 | DJYP3VP3 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding |
| 6 | DJYP3VP3R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding |
| 7 | DJYVP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel tape armor |
| 8 | DJYP3V22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor |
| 9 | DJYP3VP3-22 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & overall shielding, steel tape armor |
| 10 | DJYVP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding, steel wire armor |
| 11 | DJYP3V32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel wire armor |
| 12 | DJYP3VP3-32 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall & individual shielding, steel wire armor |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
