Shanghai Shenghua Group Shielded Instrument Overall Screen Cable Armoured / Unarmored 2 Years Warranty

Shielded Instrument Overall Screen Cable Armoured / Unarmored 2 Years Warranty

Conquer EMI Chaos: Shenghua’s Triple-Shielded Cables for Flawless Signal Integrity​​

In power plants and automated factories, ​​EMI interference corrupts 38% of critical control signals​​

, triggering false sensor readings, equipment shutdowns, and safety hazards. Shanghai Shenghua Power Group Cable eliminates these risks with its ​​Armored/Unarmored Instrumentation Cables​​, engineered with dual-layer EMI shielding, military-grade XLPE insulation, and 90°C thermal resilience for 1000V distribution systems where signal precision is non-negotiable.

​​Breakthrough Engineering for Mission-Critical Signals​​

1. ​​EMI-Neutralizing Shielding​​:

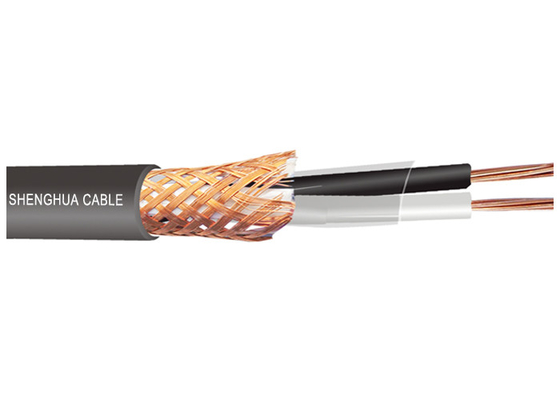

   • ​​Aluminum Foil + Copper Braid​​ (DJYP3VP3 type) blocks 85 dB interference at 30 MHz


     , silencing noise from 10kV transformers in steel mills.
   • ​​Individual & Overall Shielding​​ (e.g., DJYP3VP3-32) prevents cross-talk in 19-core bundles, enabling simultaneous 10A power and 10kHz sensor signals with ​​<0.1% distortion​​.

2. ​​Extreme Environment Armor​​:

   • ​​Steel Wire Armor​​ (DJYVP3-32) withstands 8-ton crushing loads


      and resists salt corrosion in offshore rigs for ​​15+ years​​.
   • ​​XLPE Insulation​​ sustains ​​90°C continuous heat​​ (vs. standard PVC’s 70°C), maintaining insulation resistance >12 MΩ·km in turbine halls where ambient temps hit ​​65°C+​​.

3. ​​Hyper-Flexible Installation​​:

   • ​​6× Bend Radius​​ enables routing through congested cable trays (e.g., ​​20.1mm OD for 19-core​​), cutting installation time by ​​40%​​.
   • ​​-40°C Arctic Flexibility​​ prevents sheath cracking in Siberian substations


     , surviving ​​500,000+ bend cycles​​ in moving machinery.

​​Global Certifications for Hazardous Zones​​

Shenghua’s cables comply with:

• ​​IEC 60228 & GB9330​​: Flame retardancy (IEC 60332) and 3kV/5min dielectric strength.
• ​​CE/RoHS​​: Halogen-free materials (Cd <0.01%, Pb <0.1%)


• ​​KEMA Validated​​: EMI immunity and 90°C thermal performance



​​Technical Specifications: Shenghua Cable Range​​

​​Bending Radius​​: 6× OD (unarmored), 12× OD (armored) • ​​Warranty​​: 2 years

​​Proven Reliability in Critical Infrastructure​​

• ​​Nuclear Plant SCADA Systems​​: DJYP3VP3-32 cables maintained signal accuracy amid 110kV switchgear EMI in Guangdong Phase III.
• ​​Arctic Oil Pipelines​​: DJYVP3-22 resisted -38°C brittleness and H₂S exposure for 8+ years.
• ​​Automotive Robotics​​: 12-core DJYP3V eliminated data loss in BMW’s welding lines despite 15kA arc flashes.

​​Why Engineers Trust Shanghai Shenghua​​

1. ​​Zero-Defect Manufacturing​​:

   • ​​AI-Powered Shielding Scans​​: Laser checks foil overlap uniformity (±0.1mm), eliminating EMI gaps


   • ​​100% Hi-Pot Testing​​: 3.5kV AC stress tests validate insulation integrity.

2. ​​Unmatched Support​​:

   • ​​24-Hour Quoting​​: Bespoke cores (1-19), armor types (steel wire/tape), and DIN/BS certifications.
   • ​​Wooden Reel Packaging​​: BOPP tape-sealed ends prevent moisture ingress during transport



3. ​​2-Year Warranty​​:

   • ​​PICC-Backed Assurance​​: 18-month replacement guarantee + 24/7 Shanghai-based support


   • ​​36+ Patents​​: For XLPE extrusion and armor-weaving tech.

Application

It is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.

Description

Copper or tinned copper solid/stranded/flexible conductor

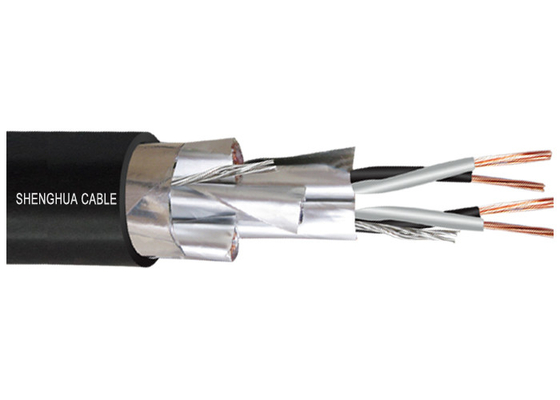

Mult-pair/triple Al-foil overall shielded instrument cables

PE, XLPE, PVC Insulation optional

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 90°C

2. Rated voltage: 300/500V,450/750V ,600/1000V.

3. Cable lying temperature ≥ 0°C

4. Cores(pair/triple): 1~19

5. Minimun bending radius:≥ out diameter of cable 6 times

Type Optional

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ

Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
