Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable

China Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable supplier
Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable supplier Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable supplier Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable supplier Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable supplier

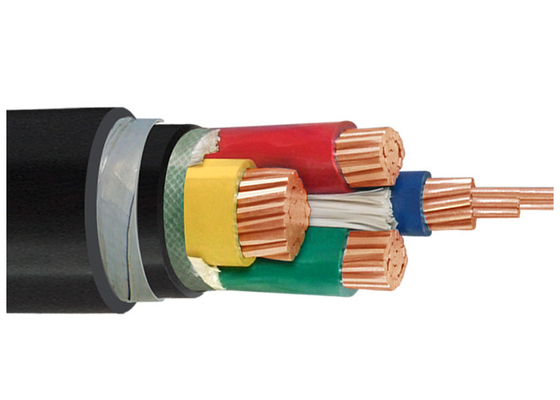

Large Image :  Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV22 0.6/1kV 4Core

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US$0.5~119 per Meter
Packaging Details: Drums
Delivery Time: 7-10 days
Payment Terms: T/T, L/C
Supply Ability: 10,000 Kilometers per Month
Contact Now
Detailed Product Description
Model Name: Armoured Electrical Cable Conductor Type: Cu, Copper
Insulation Material: XLPE Rated Voltage: 600/1000V
Armour Type: Galvanized Steel Tape Armoured Sizes: 1~ 630 SQMM
Cores: 4 Sheath Material: PVC
Warranty: 2 Years Standards: IEC / BS / IS / VDE

Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable





Constructions



Conductor: Plain circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/A

Inner Covering: PVC

Armoring: Steel Wire, Steel Tape, Aluminum Wire at request

Sheath: PVC/ST2 to IEC 60502, black

Note: Insulation color as per standards or at request



Applications



Used as power distribution and transmission line at rated voltage 0.6/1kV.

Suitable for burying in ground, laying down wells and under water. Able to bear certain axis pulling force.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6 / 1 kV

Max. Conductor Temp.: normal (70°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)

Min. Ambient Temp.: 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D



Certificates



CE, RoHS, CCC, KEMA and more others at request



Specification



Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

Insulation Thickness Inner Covering Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm     mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 1/2.25 0.7 1.0 2 × 0.2 1.5 16.0 454 4.61 3.5 34 45
4 × 6 1/2.76 0.7 1.0 2 × 0.2 1.5 17.0 557 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.0 2 × 0.2 2.0 20.0 791 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.0 2 × 0.2 2.0 23.0 1210 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.0 2 × 0.2 2.0 27.0 1672 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.0 2 × 0.2 2.0 29.0 2127 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.0 2 × 0.2 2.0 33.0 2802 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.2 2 × 0.2 2.5 38.0 3785 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.2 2 × 0.5 2.5 42.0 4829 0.193 3.5 245 270
4 × 120 24/2.52 1.2 1.4 2 × 0.5 3.0 47.0 6033 0.153 3.5 285 310
4 × 150 30/2.52 1.4 1.4 2 × 0.5 3.0 52.0 7356 0.124 3.5 325 345
4 × 185 37/2.52 1.6 1.6 2 × 0.5 3.0 56.0 8808 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 1.6 2 × 0.5 3.0 62.0 11182 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 1.7 2 × 0.5 3.1 64.0 14176 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 1.7 2 × 0.5 3.5 69.0 17815 0.0470 3.5 570 575





ADVANTAGE

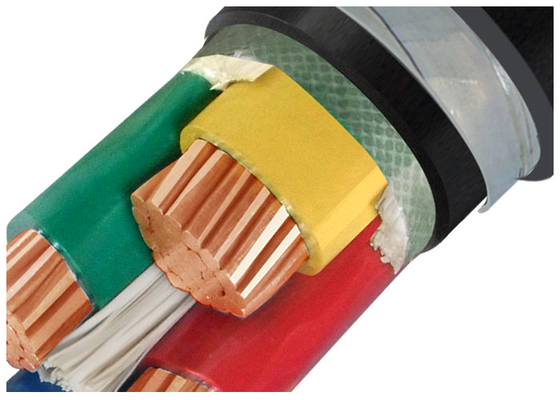

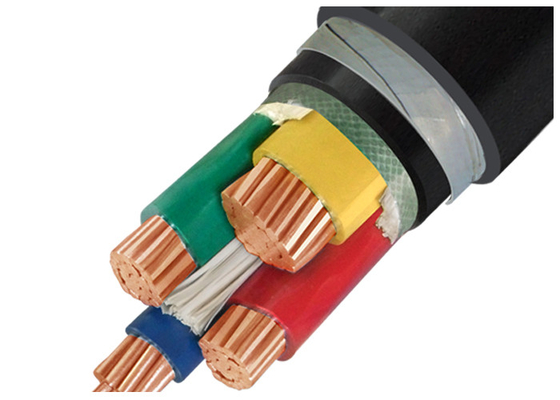

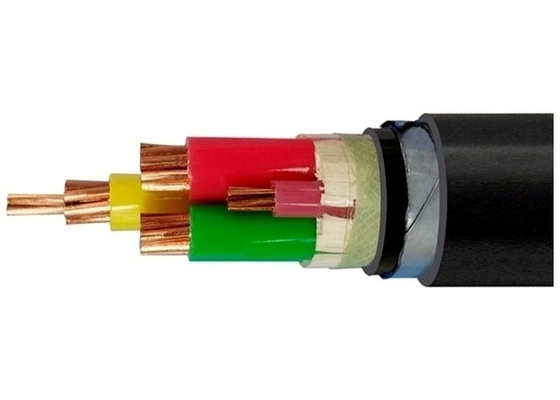

Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable

Steel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power CableSteel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power CableSteel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power CableSteel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power CableSteel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power CableSteel Tape Armoured Electrical Cable 600/1000V 4 Core CU/XLPE/STA/PVC Power Cable


FAQ


Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: Do you custom package?
A: We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.

Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1.We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2.We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3.The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
