PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable

China PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable supplier
PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable supplier PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable supplier PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable supplier PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable supplier

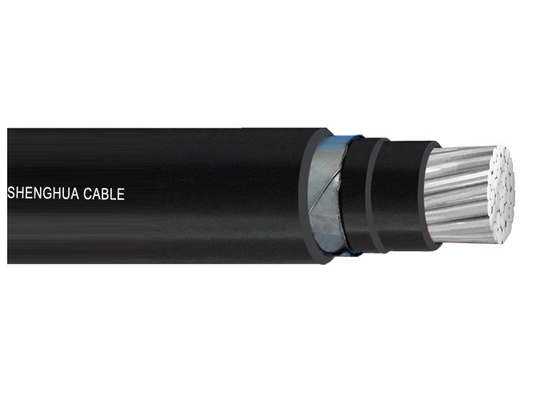

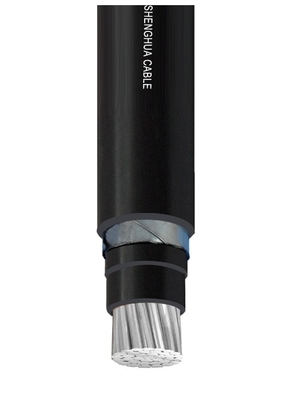

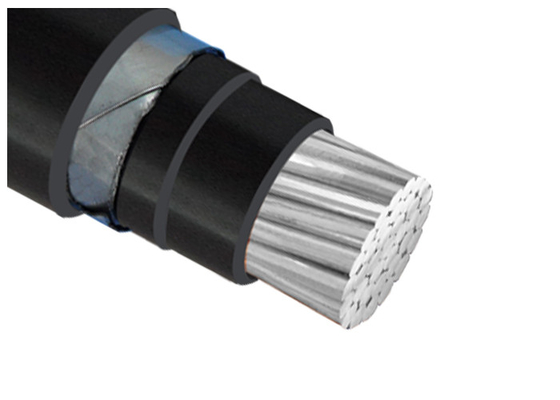

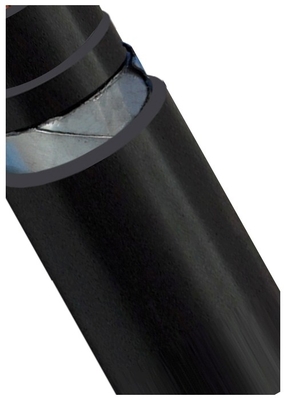

Large Image :  PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable

Product Details:

Place of Origin: SHANGHAI, CHINA
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,KEMA
Model Number: VLV62 1C

Payment & Shipping Terms:

Minimum Order Quantity: 1000meter
Price: US$0.5~15 per meter
Packaging Details: Drums
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Kilometer per Week
Contact Now
Detailed Product Description
Cable Name: VV62 LV Armoured Cable Conductor Material: Aluminum
Size: 10~1000 MM2 Cores: One Core
Insulation: PVC Sheath: PVC Type ST2
Standards: IEC / BS / IS / VDE Warranty: 2 Years
Sheath Color: Black, Customized

PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable



Applications



Used as power distribution and transmission line at rated voltage 0.6/1kV.

Suitable for burying in ground, laying down wells and under water. Able to bear certain axis pulling force.





Structure



Conductor: Plain circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/A

Inner Covering: PVC

Armoring: Steel Wire

Sheath: PVC/ST2 to IEC 60502, black





Technical parameter



Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D for single core with armor







Standard



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request









Type Description & Application Occasion






Description
Application Occsion GB China Type
Cu Al
PVC insulation,Steel tape armor,PVC sheath power cable To be laid underground,the cable could bear certain mechanical force. VV22 VLV22
PVC insulation,have on the magnetism steel tape armor,PVC sheath power cable VV62 VLV62
PVC insulation,thin steel-wire armor PVC sheath power cable Be applicable to the well,underwater with the bottom of sea,the cable cable cans bear the bigger pressure with lead to pull the dint. VV32 VLV32
PVC insulation,have no the magnetism thicks tell-wirer armor,PVC sheath power cable VV72 VLV72
PVC insulation,thick steel-wire armor,PVC sheath power cable VV42 VLV42







PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

PVC Insulation Stainless Steel Tape Armoured Electrical Cable One Core Low Voltage Aluminum Cable





PRO.&INS. PROCESS



4 core armoured cable 120mm

Note:
1. The process of production and inspection applies to Electric Power Cable, Control Cable, Aerial Cable, House Wiring Cable and so on. The process is not all same for different types of products.
2. The process with the mark is for medium voltage power cable.





 FAQ


  • How long does it take to get a quote back?
  •
  • Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
  •
  • Do you custom package?
  •
  • We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.
  •
  • What warranties do your products carry?
  •
  • SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
    1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
    2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
    3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
    4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
