Galvanized Steel Wire Armoured Electrical Cable 4 Cores Low Voltage XLPE or PVC Insulation AL Cable

China Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable supplier
Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable supplier Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable supplier Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable supplier Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable supplier

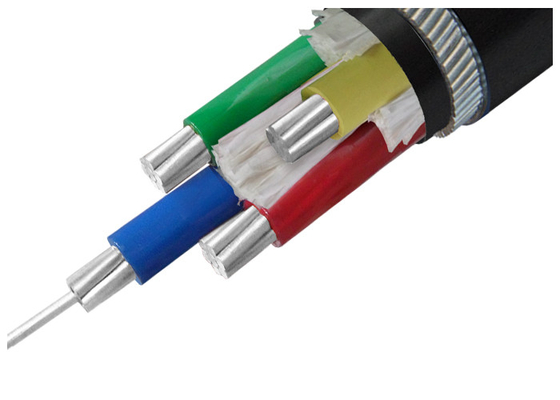

Large Image :  Galvanized Steel Wire Armoured Electrical Cable 4 Cores Low Voltage XLPE or PVC Insulation AL Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV32 LV 4Cores

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Model Name: Armoured Aluminum Cable Rated Voltage: LV, Low Voltage
Insulation: XLPE Conductor: AL, Aluminum
Armour: SWA, Galvanized Steel Wire Armoured Sizes: 1~ 630mm2
Cores: 4 Core Sheath Material: PVC, PE, LSOH
Standards: IEC / BS / IS / VDE Warranty: 2 Years
Free Sample: Avaliable
High Light:

armoured power cable

,

armored electrical cable

Galvanized Steel Wire Armoured Electrical Cable 4 Cores Low Voltage XLPE or PVC Insulation AL Cable





Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.





Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: Low Voltage, 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

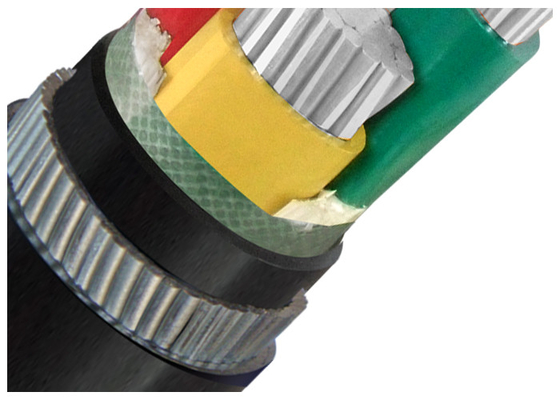

Construction



Conductor Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228
Circular solid AL Conductor, Class 1 as per IEC 60228

Conductor Screen Semi-conductor (MV only)
Insulation XLPE (Cross-linked polyethylene), or PVC
Insulation Screen Semi-conductor (MV only)
Separate Screen Copper Tape (MV must, LV optional)
Filler Fillers strip, Yarn, or Paper
Wrapping Tape Non woven
Inner Covering Extruded PVC (MV only)
Armour Steel Wire, or Steel Tape, or Aluminium Tape optional
Overall Sheath

PVC or PE or LSOH

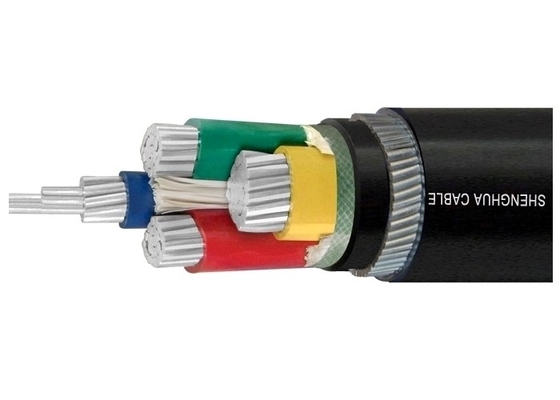

Galvanized Steel Wire  Armoured Electrical Cable 4 Cores Low Voltage  XLPE or PVC Insulation AL Cable 0





PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.







Type Description & Application Occasion



YJV Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
YJLV Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable
YJY Copper Conductor, XLPE Insulated, PE Sheathed Power Cable For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
YJLY Al. Conductor, XLPE Insulated, PE Sheathed Power Cable
YJV22 XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
YJLV22 Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable
YJV32 Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable Apply to shafts,water and soil,able to bear the larger positive pressure.
YJLV32 Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable
YJV42 Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.
YJLV42 Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable
