Product Details:
Payment & Shipping Terms:
|
| Conductor: | Aluminium/Aluminium Alloy | Insulation: | XLPE Or PVC |
|---|---|---|---|
| Rated Voltage: | 0.1/1 KV | Structure: | 3 Phase + 1 Bare Neutral |
| Application: | Overhead Power Transmission Lines | Sheath: | No |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | aerial electrical cable,aerial bunch cable |
||

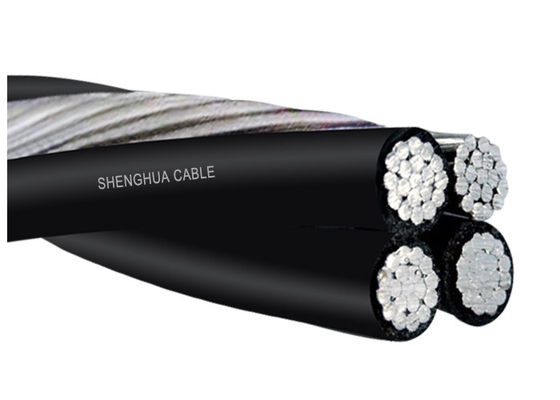

ABC-AAAC/XLPE Bundled Aerial Drop Cable Customized B232 B399 Certification
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
| AAAC | ||||||||||
| Bay | 6-Solid | 1.143 | 14.115 | 6.401 | 6-7 | 503.485 | 63 | 155 | 217 | 78 |
| Frency-conch | 6-7 | 1.143 | 4.674 | 6.960 | 6-7 | 503.485 | 71 | 155 | 226 | 78 |
| German-conch | 4-Solid | 1.143 | 5.182 | 7.468 | 4-7 | 798.318 | 79 | 247 | 324 | 103 |
| Arabian | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 784.711 | 89 | 247 | 336 | 103 |
| Belgian | 2-7 | 1.524 | 7.417 | 9.703 | 2-7 | 1270.052 | 115 | 391 | 506 | 136 |
| Saddle | 1-19 | 1.524 | 8.433 | 11.481 | 2-7 | 1270.052 | 171 | 466 | 637 | 158 |
| Plow | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 2023.011 | 192 | 624 | 814 | 182 |
| Sherland | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-7 | 2023.011 | 193 | 624 | 817 | 182 |
| Dapple-grey | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 2444.850 | 217 | 786 | 1005 | 210 |
| Thoroughbred | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-7 | 2444.850 | 220 | 786 | 1007 | 210 |
| Dobbin | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 3079.876 | 249 | 991 | 1238 | 242 |
| Trotter | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-7 | 3079.876 | 251 | 991 | 1243 | 242 |
| Pony | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 3880.730 | 286 | 1250 | 1534 | 279 |
| Walking | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-7 | 3882.730 | 289 | 1250 | 1539 | 279 |
