Product Details:
Payment & Shipping Terms:
|
| Conductor: | Aluminium/ Aluminium Conductor Steel-reinforced | Insulation: | XLPE Or PVC |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Structure: | 3 Phase + 1 Bare Neutral |
| Application: | Overhead Power Transmission Lines | Sheath: | No |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | aerial bunched cables,aerial electrical cable |
||

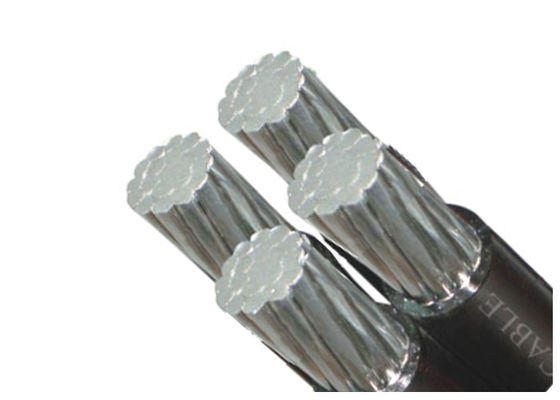

Aerial Bundled XLPE Insulated Power Cable Quadruplex Wire Eco Friendly
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
2. Standards
QUADRUPLEX SERVICE DROP-ALUMINIUM CONDUCTOR
ASTM B-231,B-232 and B-399, ICEA S -79-474
| ACSR | ||||||||||
| Morchuca | 6-Solid | 1.143 | 4.115 | 6.401 | 6-6/1 | 539.772 | 63 | 149 | 229 | 78 |
| Chola | 6-7 | 1.143 | 4.674 | 6.960 | 6-6/1 | 539.772 | 71 | 149 | 237 | 78 |
| Morgan | 4-Solid | 1.143 | 5.182 | 7.468 | 4-6/1 | 843.667 | 79 | 238 | 344 | 103 |
| Hackney | 4-7 | 1.143 | 5.893 | 8.179 | 4-6/1 | 843.667 | 89 | 238 | 356 | 103 |
| Palomino | 2-7 | 1.524 | 7.417 | 9.703 | 2-6/1 | 1292.732 | 115 | 377 | 557 | 136 |
| Albino | 1-19 | 1.524 | 8.433 | 11.481 | 1-6/1 | 1610.245 | 171 | 473 | 699 | 158 |
| Standardbred | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-6/1 | 1986.724 | 192 | 598 | 859 | 182 |
| Costena | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-6/1 | 1986.724 | 193 | 598 | 862 | 182 |
| Chicoteagues | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-6/1 | 2404.027 | 217 | 753 | 1060 | 210 |
| Grullo | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-6/1 | 2404.027 | 220 | 753 | 1063 | 210 |
| Mare | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-6/1 | 3002.766 | 249 | 951 | 1308 | 242 |
| Suffolk | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-6/1 | 3002.766 | 251 | 951 | 1313 | 242 |
| Stallion | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-6/1 | 3787.477 | 286 | 1198 | 1622 | 279 |
| Appaloosa | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-6/1 | 3787.477 | 289 | 1198 | 1627 | 279 |
