33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable

China 33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable supplier
33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable supplier 33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable supplier 33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable supplier 33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable supplier

Large Image :  33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJSV32 MV 33kV

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US$0.55~125 per Meter
Packaging Details: Wooden Drum
Delivery Time: 7-15 days
Payment Terms: T/T, L/C
Supply Ability: 10,000 KM a Month
Contact Now
Detailed Product Description
Product Type: 33kV Armoured Cable Voltage: Medium Voltage 11kV 33kV
Conductor: Cu / Copper Insulation: PE, XLPE
Armor: Steel Wire Sreen: Copper Wires
Cores: 3 Phase Sheath Material: PVC / PE / LSOH
Standards: IEC / BS / IS / VDE Warranty: 2 Years



33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable



Application



To be laid directly in ground, water, outdoors, indoors and in cable ducts e.g. in industrial and switchboard plants.

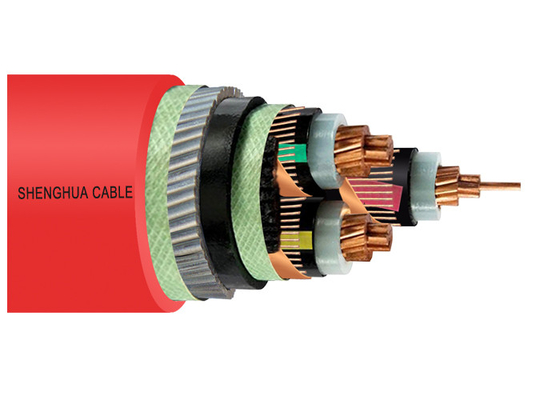

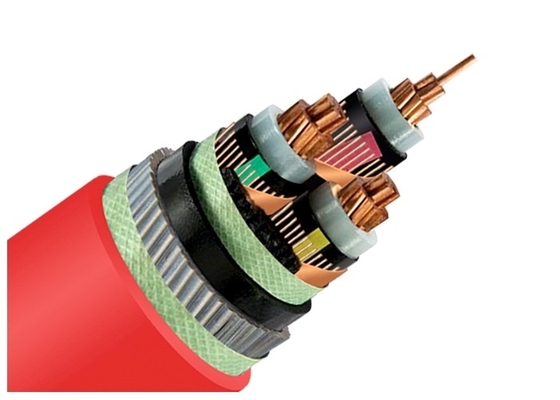

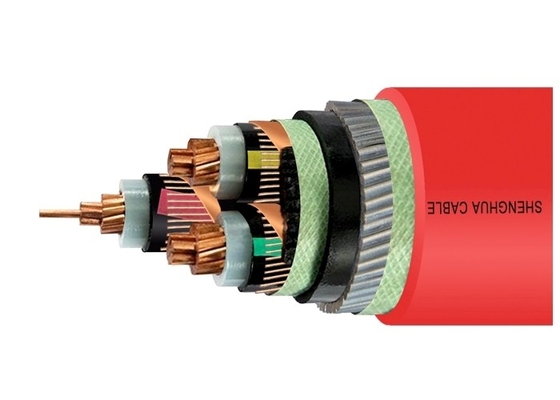

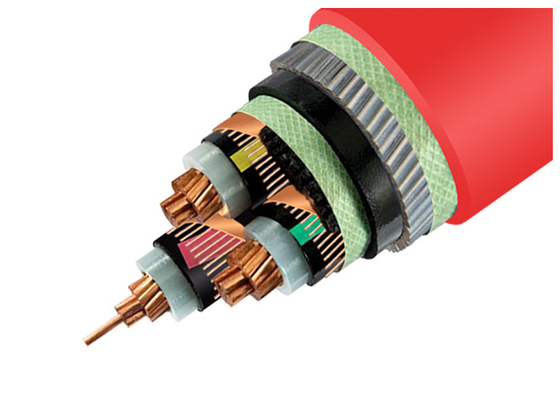

Construction



1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Galvanized Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH






Standards



IEC 60502, 60228, 60332, 60331

DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)




Technical data



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1





Certificates



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request





Ordering Advice



Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





Specifications



Dimensions – number of cores x conductor cross-section Construction External diameter External diameter Conductor diameter Insulation thickness Conductor resistance at 20 °C Short circuit current 1s Cu weight Cable weight Packing*
    min. max. max. nominal max. nominal   approx.
N x mm²   mm mm mm mm Ω/km A kg/km kg/km
3 x 25/16 RM 43     3,4 0,727 3,58 1046 2850 CUT
3 x 35/16 RM 47 51 7,5 3,4 0,524 5,01 1209 3300 CUT
3 x 50/16 RM 50 55 8,6 3,4 0,387 7,15 1671 3900 CUT
3 x 70/16 RM 53 58 10,2 3,4 0,268 10,01 2247 4700 CUT
3 x 95/16 RM 57 62 12,0 3,4 0,193 13,59 2994 5850 CUT
3 x 120/16 RM 61 67 13,5 3,4 0,153 17,16 3714 6800 CUT
3 x 150/25 RM 64 70 15,0 3,4 0,124 21,45 4638 7950 CUT
3 x 185/25 RM 68 74 16,8 3,4 0,0991 26,46 5646 9300 CUT
3 x 240/25 RM 74 80 19,2 3,4 0,0754 34,32 7272 11550 CUT
3 x 300/25 RM 78 90   3,4 0,0601 42,50 9160 14450 CUT



*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length



33kV Medium Voltage Steel Wire Armoured Electrical Cable 3 Phase Copper Wire Screen XLPE Power Cable







PACKING AND SHIPPING:



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
