AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable

China AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable supplier
AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable supplier AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable supplier AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable supplier AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable supplier

Large Image :  AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV22 HV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Product Model: AL/XLPE/STA/PVC Conductor: Aluminum
Insulation: XLPE Armour Material: Steel Tape
Cores: Three Phase Voltage: HV
Sheath Material: PVC, PE, LSOH Warranty: Two Years
Certificate: KEMA, Type Test Standard: IEC, BS, IS, VDE
High Light:

armoured power cable

,

armored electrical cable

AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable





Application



Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

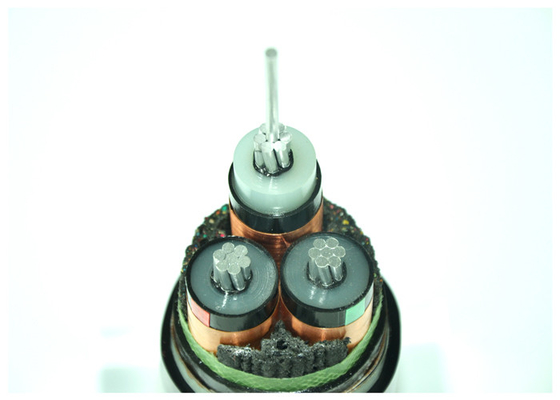

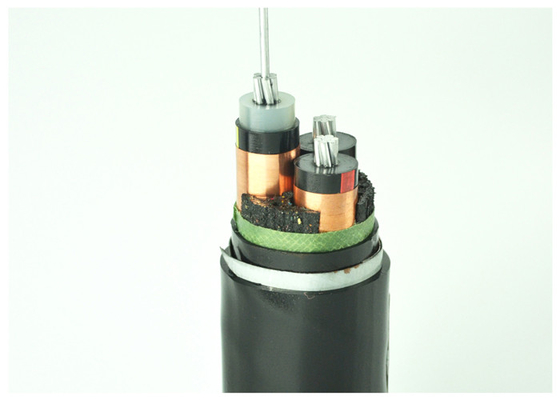

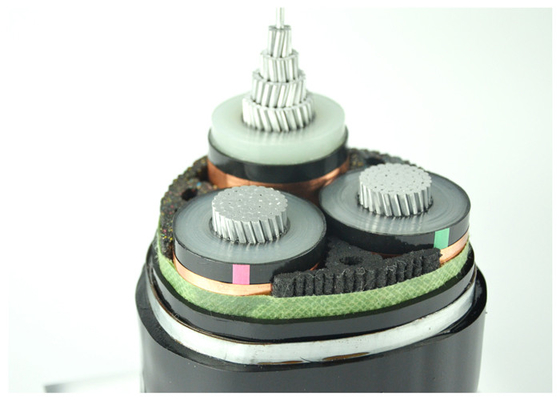

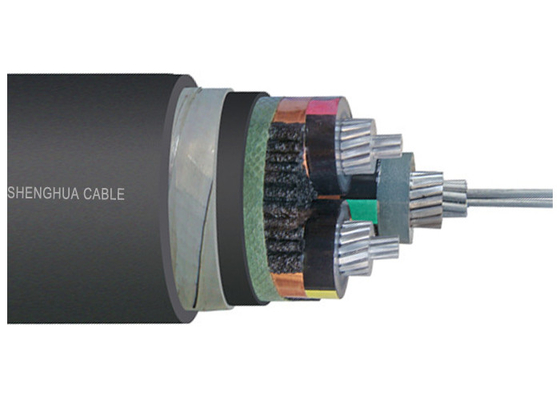

Construction



AL/XLPE/STA/PVC Armoured Electrical Cable



- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel tape armour (STA)
- PVC outer sheath (red or black)




Code name:

YJ: XLPE insulation
L: Aluminum conductor
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant


MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable







Standard

International: IEC 60502, IEC 60228


China: GB/T 12706


Other standards such as BS, DIN and ICEA upon request




Technical data:

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core


Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2



Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request


AL/XLPE/STA/PVC Armoured Electrical Cable Three Phase Aluminum Conductor XLPE Insulation High Voltage Cable 0



This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
