Product Details:
Payment & Shipping Terms:
|
| Model Name: | Armored Low Tension Cable | Rated Voltage: | Low Tension |
|---|---|---|---|
| Insulation: | XLPE | Conductor: | Copper |
| Armour: | Steel Tape Armoring | Sizes: | 1.0 ~ 630 Mm2 |
| Sheath: | PVC, PE Or LSZH | Standards: | IEC / BS / IS / VDE |
| High Light: | armoured power cable,armoured electric cable |
||
Application
Apply to shafts,water and soil,able to bear the larger positive pressure.
Used for power transmission and distribution line with voltage rated at 1.1kV and below.
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Cable Details
| Code | : | YJV22, CU/XLPE/STA/PVC |
| Standarts | : | IEC 60502-1, IEC 60228, VDE, BS |

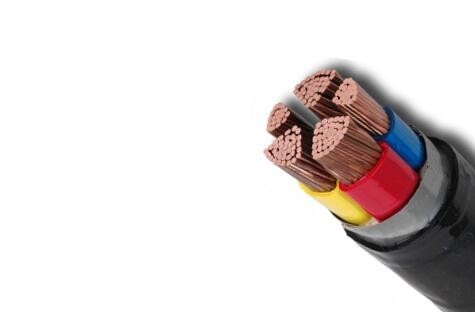

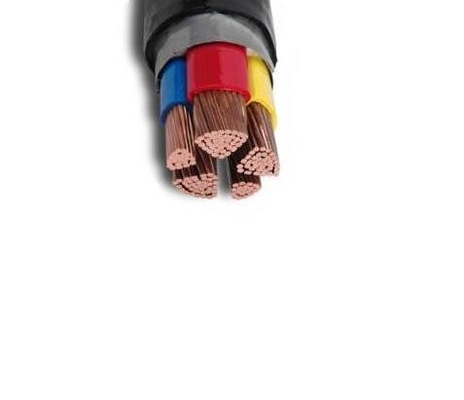

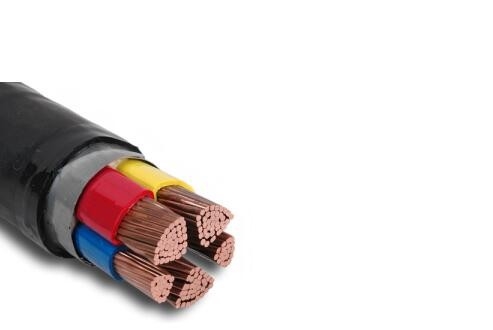

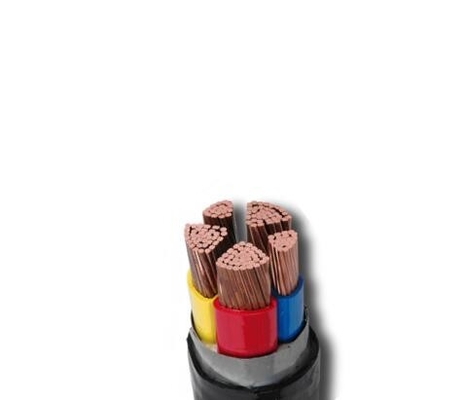

| Construction | : | 1- Solid, Stranded or Flexible Copper Conductor |
| 2- XLPE Insulation | ||
| 3- Galvanized Steel Tape Armour | ||
| 4- PVC outer sheath, type ST2 to IEC 60502, black | ||
| Application | : | Preferably for installation indoors, in cable ducts and in industrial plants or |
| switching stations, underground installation with additional protection where | ||
| mechanical damage is unexpected. | ||
| Technical Data | : | Max. operating temperature 90 ºC |
| Short circuit temperature 250 ºC | ||
| Code meaning | YJ: XLPE insulation | |
| V: PVC sheath | ||
| 22: Galvanized steel tape armoring |
Technical data
Rated voltage: Low Voltage, 0.6/1kV
Maximum Conductor Temperature: under normal (75°C), short circuit no more than 5 s (160°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
12 x cable O.D for multi-core armoured cables
Ordering Advice
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Specification Of Sioplas Insulated Power Cable
| Type | Core Number | Rated voltage KV | |||
| 0.6/1 | 1.8/3 | 3.6/6,6/6,6/10 | |||
| Cu Core | Al Core | Manufacturing Range(Nominal Cross-section Area) | |||
| YJV,YJY | -- | 1 | 1.5-630 | 10-630 | 10-630 |
| -- | YJLV,YJLY | 2.5-630 | 10-630 | 10-630 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 10-630 | 10-630 | 10-630 | |
| YJV,YJY | -- | 2 | 1.5-185 | 10-185 | 10-150 |
| -- | YJLV,YJLY | 2.5-185 | 10-185 | 10-150 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-185 | 10-185 | 10-150 | |
| YJV,YJY | -- | 3 | 1.5-400 | 10-185 | 10-300 |
| -- | YJLV,YJLY | 2.5-400 | 10-400 | 10-300 | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | 10-300 | |
| YJV,YJY | -- | 4 | 4-400 | 10-400 | -- |
| -- | YJLV,YJLY | 4-400 | 10-400 | -- | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | -- | |
| YJV,YJY | -- | 5 | 4-185 | 10-185 | -- |
| -- | YJLV,YJLY | 4-500 | 10-500 | -- | |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
| YJV,YJY | YJLV,YJLY | 3+1 | 4-400 | 10-400 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-400 | 10-400 | -- | |
| YJV,YJY | YJLV,YJLY | 4+1 | 4-500 | 10-500 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
| YJV,YJY | YJLV,YJLY | 3+2 | 4-500 | 10-500 | -- |
| YJV22,YJV23 | YJLV22,YJLV23 | 4-500 | 10-500 | -- | |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
