XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22

China XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 supplier
XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 supplier XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 supplier XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 supplier XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22 supplier

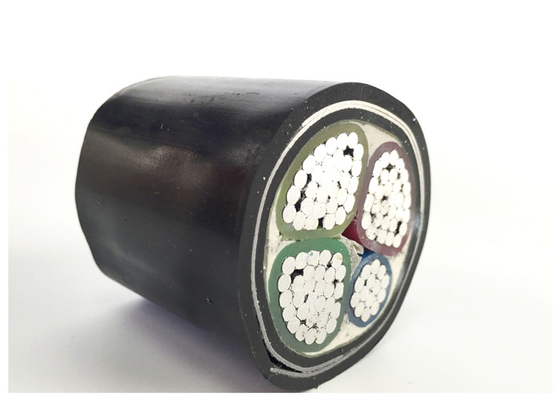

Large Image :  XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV22 0.6/1 3+1

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meters
Price: US$0.3 -109 per Meter
Packaging Details: Wooden Drums
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 10,000 Kilometers per Month
Contact Now
Detailed Product Description
Model Name: Aluminum Armoured Cable Rated Voltage: Low Voltage
Insulation: XLPE Conductor: Aluminum
Armour: STA Sizes: 1~ 630SQMM
Cores: 3+1cores Sheath Material: PVC
Standards: IEC / BS / IS / VDE Warranty: 2 Years

XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22




Applications



Used for power transmission and distribution line with voltage rated at 35kV and below.



1,This kind of cable is fit for AC 50HZ, rated voltage 6/6kv(not higher than 7.2kv) electric distribution network and industrial devices fixed laying.

2,It is used in underground power grid of city building, and industrial mining enterprises’ power distribution.

3,It is conform to ZL30TM004097.1-2012 [YJY 0.6/35kV]

4,GB/T 12706-2008 rated voltage 1kV(Um=1.2kV)to 35kV(Um=40.5kV)

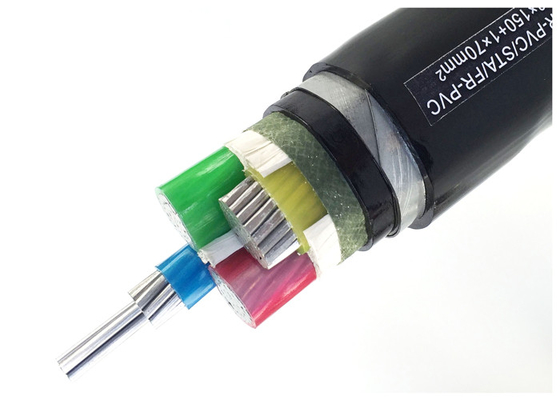

Construction



Conductor Compact Stranded Aluminum Conductor, Class 2 as per IEC 60228
Circular solid AL Conductor, Class 1 as per IEC 60228
Insulation XLPE
Separate Screen Copper Tape, Al-foil tape (MV must, LV optional)
Filler Fillers strip, Yarn, or Paper
Wrapping Tape Non woven
Inner Covering Extruded PVC
Armour Steel Tape armoring
Overall Sheath

PVC







Standards



IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.





The Rated Voltage(kV):



1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35




Number of cores:



1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.






Technique property:



1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D



Note:



1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.



XLPE Insulated PVC Sheath Aluminum Armoured Cable Low Votlage STA Armored XLPE Power Cable YJLV22







Packing & Shipping



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.





Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.




FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
