YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor

China YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor supplier
YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor supplier YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor supplier

Large Image :  YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV22-6/10KV-3*120 CU/XLPE/PVC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Conductor: Copper Insulation: XLPE
Armor: Steel Tape Or Steel Wire Inner& Outer Sheath: PVC
Rated Voltage: 6/10KV Cores No. And Area: 3*120 Sq Mm
High Light:

armored electrical cable

,

armoured electric cable

YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor



Description:

CU/XLPE/STA/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA

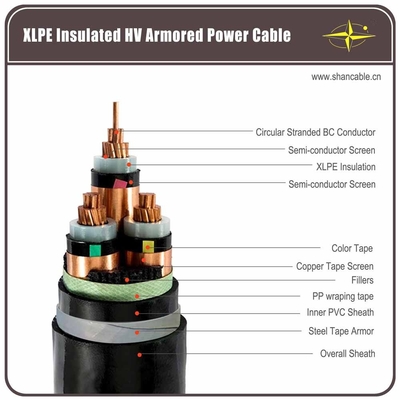

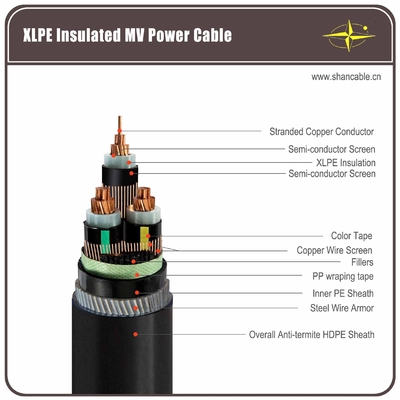

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE/A

Inner Covering: PVC

Armour: Galvanized Steel Wire or tape

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement



Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For Layling indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 2-35 kV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates

CE, RoHS, CCC, KEMA and more others at request



4 Table of the voltage, cores and cross-section

Item Category A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV
Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV
Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400



The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.



































YJV22-6/10KV-3 120 XLPE Armoured Cable With Circular Stranded Copper Conductor 0











Packing & Shipping


We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.






Our Services


♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.





FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
