Product Details:
Payment & Shipping Terms:
|
| Conductor: | Copper | Insulation: | XLPE |
|---|---|---|---|
| Sheath: | PVC | Color: | Black |
| Place: | ShangHai | ||
| High Light: | control wire,flexible control cables |
||

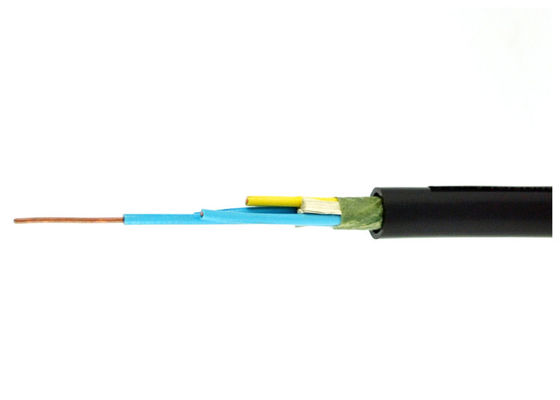

Copper Conductor XLPE Insulated Control Cables WIth PVC Sheath
Construction:
Conductor: Class 1&2 Copper Conductor
Insualtion: XLPE
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
Specifications:
| Type | Name | Section Area(mm2) | No. of Core |
| KVV | Copper Conductor, PVC Insulated and Sheathed control cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP | Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2-22 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVR | Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 |
2-8 10 12 14 |
Years of cable production and R&D experience;
Skilled cable technical staff; high-quality management team;
Advanced cable production/testing machines;
Quality/ Service Commitment.
High Quality Product with Competitive Price;
OEM Product with Low Volumn of Order;
Custom Design per Customer's Specific Requirements and Budgets;
Fast and On-Time Delivery;
Flexible Business Deal;
Chief Engineer with over 20 Years' Experience;
All Products 100% Inspection;
Comprehensive After-Sale Service.
Choose Shenghua Cable, you will get a trustworthy lifetime business partner!
