|Core:||2 To 61||Origin:||Shanghai,China|
shielded control cable,

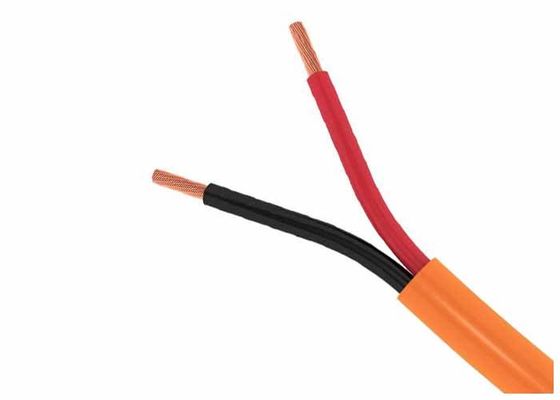

Copper Conductor Custom Control Cables Flame Retardant Halogen Free
Conductor: Class 1&2 Copper Conductor
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
CE, RoHS, CCC, KEMA and more others at request
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
|Overall Diameter||Min resistance of
of at 20℃
A: Yes, we welcome sample order to test and check quality.
A:Sample needs 3-5 days, mass production needs 2-3 weeks .
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
