PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate

China PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate supplier
PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate supplier PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate supplier PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate supplier PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate supplier

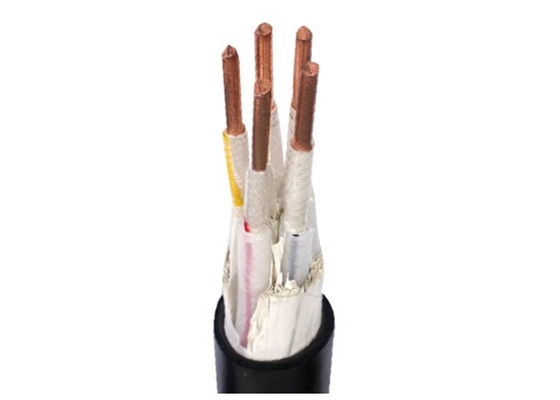

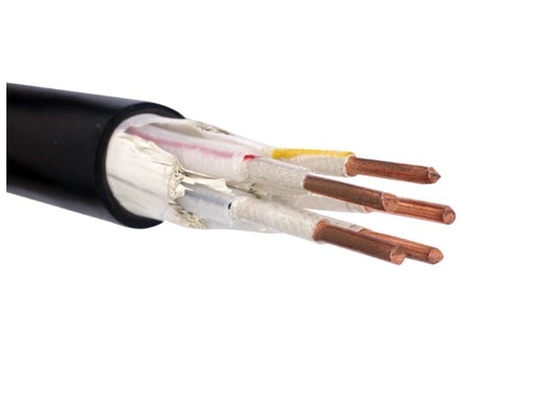

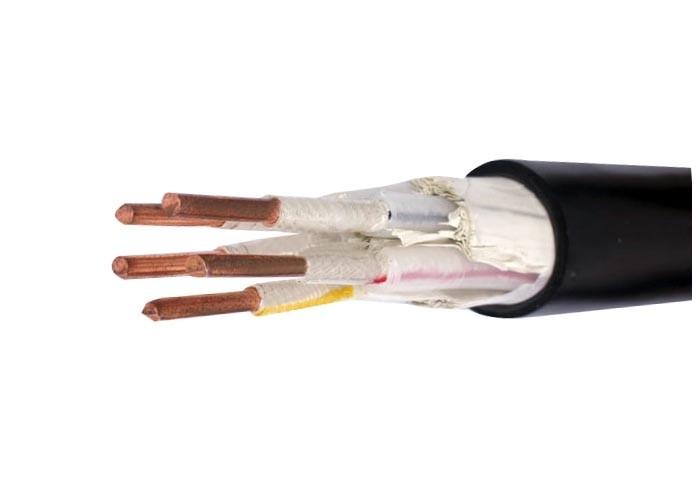

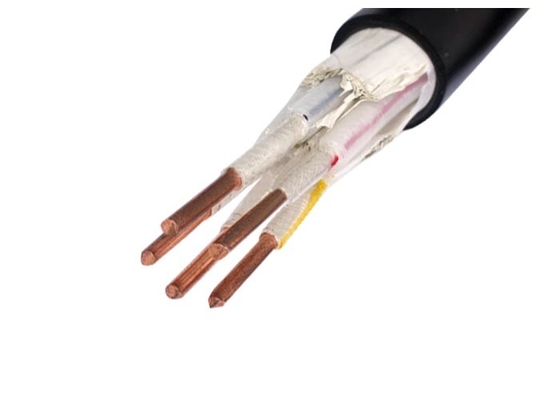

Large Image :  PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: CE/KEMA/CCC/TUV
Model Number: KYJV

Payment & Shipping Terms:

Minimum Order Quantity: 1000m
Price: USD 0.4 To 10.5 per Meter
Packaging Details: 100/200 Meters per Rolls or Wooden Steel Drums
Delivery Time: 10-15 Days
Supply Ability: 8KM per Day
Contact Now
Detailed Product Description
Conductor: Copper Insulation: XLPE
Sheath: PVC Color: Black
Place: ShangHai

PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate





Construction:



Conductor: Class 1&2 Copper Conductor

Insualtion: XLPE

Sheath: PVC





Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place





Specifications:



Type Name Section Area(mm2) No. of Core
KVV Copper Conductor, PVC Insulated and Sheathed control cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVVP Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVVP2 Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVVP2-22 Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVV22 Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVVR Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0 2-8 10 12 14
KVVRP Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable 0.75 1.0 1.5 2.5 2-8 10 12 14 16 19 24 27 30 37
4.0 6.0

2-8 10 12 14
