Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard

China Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard supplier
Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard supplier Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard supplier Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard supplier Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard supplier

Large Image :  Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV32

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Screen Material: Copper Tape Conductor Material: Annealed Copper Conductor(class2)
Insulation: XLPE Sample: Available
Test Voltage:: 21KV/5min Standard: IEC60502-2,IEC60228
Packing Style: Steel-wooden Drum Armoured: Steel Wire
High Light:

armored electrical cable

,

armoured electric cable

Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard

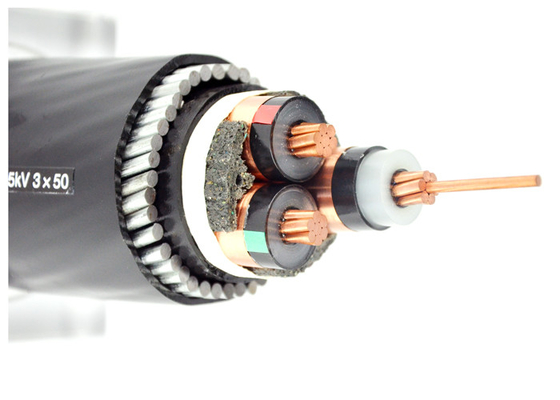

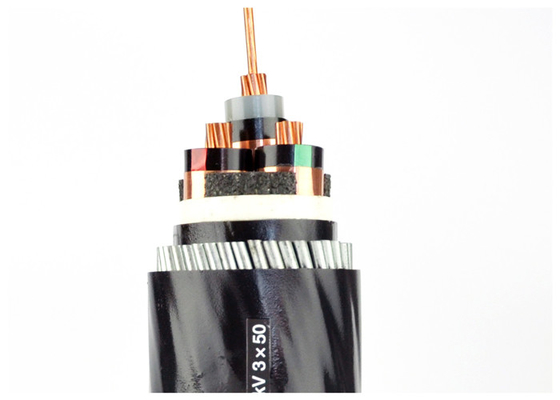

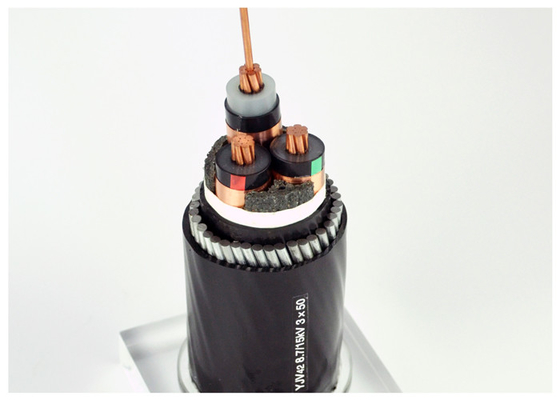

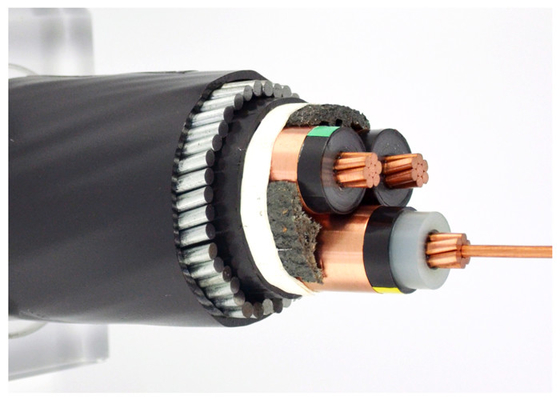

Construction



CU/XLPE/PVC/STA/PVC Armoured Electrical Cable



- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized Steel Wire armour (SWA)
- PVC outer sheath (red or black)





Code name:

YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant





Application

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.



MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable







Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request


Technical data:

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Dia. Of Armor Wire Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
3 × 25 7/2.14 3.4 1.3 2.5 2.5 49.0 4579 0.727 21 120 125
3 × 35 7/2.52 3.4 1.3 2.5 2.6 52.0 5097 0.524 21 140 155
3 × 50 10/2.52 3.4 1.4 2.5 2.7 54.0 5802 0.387 21 165 180
3 × 70 14/2.52 3.4 1.5 2.5 2.8 58.0 6788 0.268 21 210 220
3 × 95 19/2.52 3.4 1.5 2.5 2.9 62.0 7812 0.193 21 255 265
3 × 120 24/2.52 3.4 1.6 2.5 3.1 65.0 8929 0.153 21 290 300
3 × 150 30/2.52 3.4 1.7 2.5 3.2 68.0 10125 0.124 21 330 340
3 × 185 37/2.52 3.4 1.7 3.15 3.3 72.0 12403 0.0991 21 375 380
3 × 240 48/2.52 3.4 1.8 3.15 3.5 78.0 14646 0.0754 21 435 435
3 × 300 61/2.52 3.4 1.9 3.15 3.7 83.0 17014 0.0601 21 495 485





Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard 0
