Product Details:
Payment & Shipping Terms:
|
| Product Type: | Armoured XLPE Cable | Voltage: | High Tension |
|---|---|---|---|
| Conductor: | Copper | Insulation: | XLPE |
| Armor: | Steel Tape | Sreen: | Copper Tape |
| Cores: | Three Cores | Sheath Material: | PVC |
| Standards: | IEC / BS / IS / VDE | Warranty: | 2 Years |
| High Light: | armored electrical cable,armoured electric cable |
||
This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
Cable Details
| MV(6 to 35kv) Power Cable | |||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) | |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm | |
| Cu core | Al Core | ||
| YJV, N2XSY;PVC sheathed power cable | YJLV, NA2XSY; PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.
Used in transformer stations, switching blocks, in electric power plants and industrial plants. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.
Standards
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

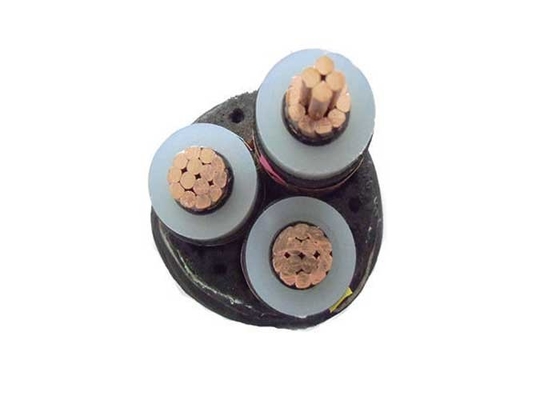

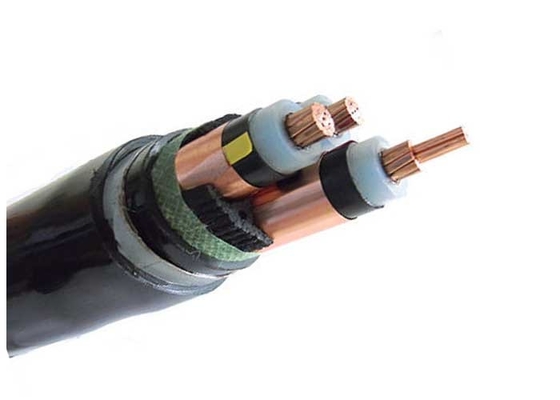

Construction
1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires
7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant
9 ..... Extruded PVC Inner Covering
10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Certificates
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Ordering Advice
Rated Voltage
Application Standard:IEC/BS/UL/GB
Number of Cores
Conductor Size $ Construction
Type of Insulation
Armored or unarmored. If armour, the armour type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Dia. Of Armor Wire | Sheath Thickness | Approx. O.D. | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 25 | 7/2.14 | 4.5 | 1.4 | 2.5 | 2.7 | 54.0 | 5224 | 0.727 | 30.5 | 120 | 125 |
| 3 × 35 | 7/2.52 | 4.5 | 1.5 | 2.5 | 2.8 | 57.0 | 5790 | 0.524 | 30.5 | 140 | 155 |
| 3 × 50 | 10/2.52 | 4.5 | 1.5 | 2.5 | 2.9 | 60.0 | 6485 | 0.387 | 30.5 | 165 | 180 |
| 3 × 70 | 14/2.52 | 4.5 | 1.6 | 2.5 | 3.0 | 64.0 | 7501 | 0.268 | 30.5 | 210 | 220 |
| 3 × 95 | 19/2.52 | 4.5 | 1.6 | 2.5 | 3.1 | 67.0 | 8548 | 0.193 | 30.5 | 255 | 265 |
| 3 × 120 | 24/2.52 | 4.5 | 1.7 | 2.5 | 3.2 | 70.0 | 9663 | 0.153 | 30.5 | 290 | 300 |
| 3 × 150 | 30/2.52 | 4.5 | 1.8 | 3.15 | 3.4 | 75.0 | 11811 | 0.124 | 30.5 | 330 | 340 |
| 3 × 185 | 37/2.52 | 4.5 | 1.8 | 3.15 | 3.5 | 78.0 | 13282 | 0.0991 | 30.5 | 375 | 380 |
| 3 × 240 | 48/2.52 | 4.5 | 1.9 | 3.15 | 3.7 | 84.0 | 15567 | 0.0754 | 30.5 | 435 | 435 |
| 3 × 300 | 61/2.52 | 4.5 | 2.0 | 3.15 | 3.8 | 88.0 | 17937 | 0.0601 | 30.5 | 495 | 485 |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
