Payment & Shipping Terms:
|Product Model:||AL/XLPE/STA/PVC YJLV22||Conductor:||Aluminum|
|Insulation:||XLPE||Armour Material:||Steel Tape|
|Cores:||Three Phase||Voltage:||High Voltage|
|Sheath Material:||PVC, PE, LSOH||Warranty:||Two Years|
|Certificate:||KEMA, Type Test||Standard:||IEC, BS, IS, VDE|
This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

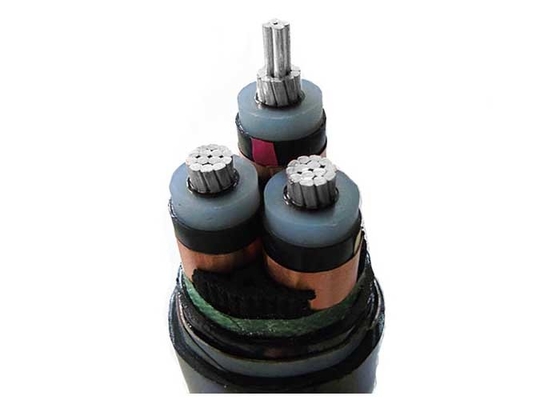

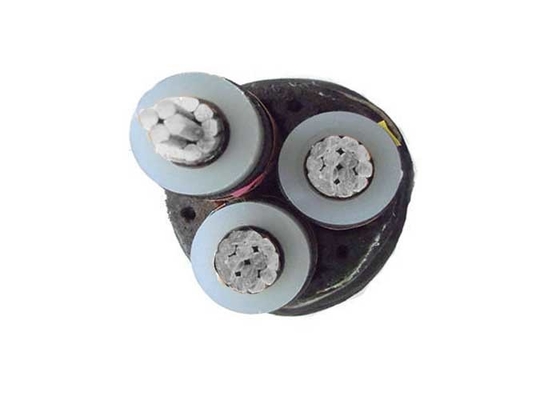

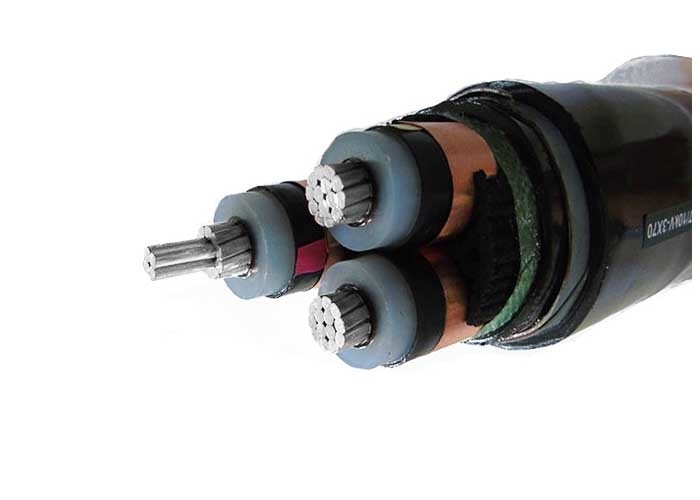

AL/XLPE/STA/PVC Armoured Electrical Cable
- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- PVC inner sheath
- Galvanized steel tape armour (STA)
- PVC outer sheath (red or black)
YJ: XLPE insulation
L: Aluminum conductor
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
|MV(11kv 15kv 33kv) Power Cable|
|Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV||No.of Core||Conductor cross-section area(mm2)|
|xlpe insulation||1 core 3 core||10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm|
|YJV, N2XSY;PVC sheathed power cable|
|YJV22;steel tape armoured,PVC sheathed power cable|
|YJV32,YJV42;steel wire armoured ,PVC sheathed power cable|
|YJLV, NA2XSY; PVC sheathed power cable|
|YJLV22;steel tape armoured,PVC sheathed power cable|
|YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable|
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
|Test voltage||6 / 10 kV||[kV]||21 / 5 min.|
|12 / 20 kV||[kV]||42 / 5 min.|
|18 / 30 kV||[kV]||63 / 5 min.|
|Temperature range||in motion||-5°C till +70°C|
|fixed||-20°C till +70°C|
|Operating temperature||short circuit||°C||250|
|Short circuit time||max.||[sec]||5|
|Bending radius||min.||x diameter||15|
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
