0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE

China 0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE supplier
0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE supplier 0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE supplier 0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE supplier 0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE supplier

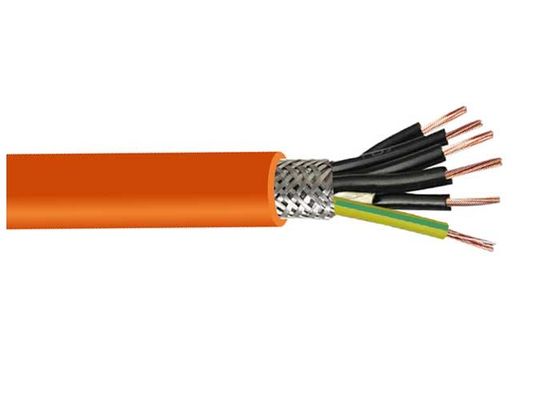

Large Image :  0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHANCABLE
Certification: ROHS CE
Model Number: WDZAN-YJY

Payment & Shipping Terms:

Minimum Order Quantity: 300M
Price: 0.38-25.6
Packaging Details: Wooden drum or case
Delivery Time: As per schedual
Payment Terms: L/C, T/T
Supply Ability: 50KM/Month
Contact Now
Detailed Product Description
Working Temperature: 90 ℃ (normal Work ) Type: Lower Voltage 0.6/1kV
Insulation Color: Orange Or Optional Function: Fire Resistant
Sample: 1-1.5m Application: Indoors, In Tunnel, Cable Trench, Underground
Certificates: CE KEMA VDE,IEC

0.6/1kV Low Smoke Zero Halogen ROHS CE Certified CU / XLPE / TWCB/ LSZH Cable



. Application for Fire Resistive Power Cable, Fire Rated Power Cable


  • This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Specifications

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath :

LSOH



2. Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath : LSOH
Insulation Colour :

2C – Brown & Blue

3C – Brown, Black & Grey

4C – Brown, Black, Grey & Blue

2C+E – Brown, Blue + Green/Yellow

3C+E – Brown, Black, Grey + Green/Yellow

4C+E – Brown, Black, Grey, Blue + Green/Yellow

5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".


0.6/1kV Low Smoke Zero Halogen Cable ROHS CE Certified CU / XLPE
