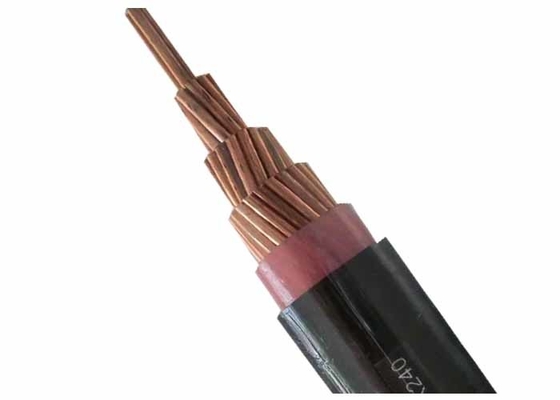

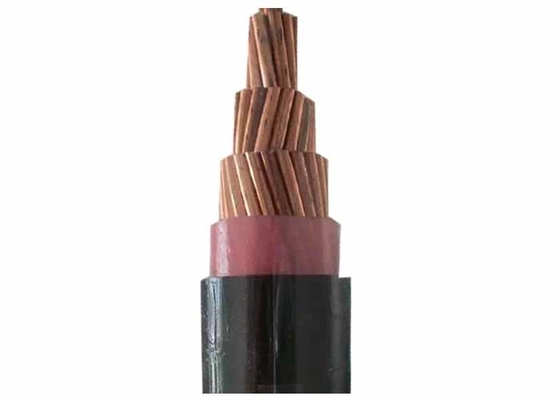

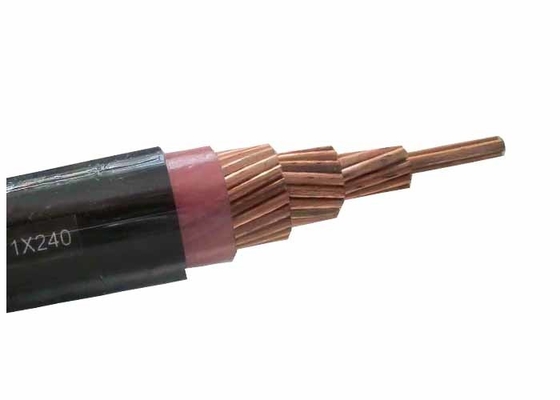

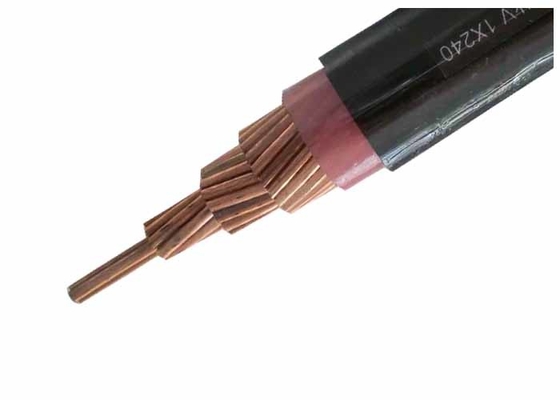

PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable

China PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable supplier
PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable supplier PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable supplier PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable supplier PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable supplier

Large Image :  PVC Sheath XLPE Insulation Copper Conductor , YJY Power Cable / 300mm Single Core Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: CU/XLPE/PVC 0.6/1kV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Product Name: 0.6/1kV XLPE Insulated Cable Size: 35mm2 To 1000 Mm2
Core Number: 1 Core Standard: IEC 60502-2 ,IEC 60228
Application: Power Grid Or Outdoors Rated Voltage: 0.6/1kV
Free Sample: Yes Warranty: 24 Months
High Light:

xlpe insulation cable

,

xlpe electrical cable

Low Voltage PVC Sheath XLPE Insulation Copper Conductor YJY Power Cable 300mm Single Core Cable





Construction
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black





Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request



Technical data
Rated voltage:33kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core



Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
Weight
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 8 2 33 1560 0.387 63 210 215
1 × 70 14/2.52 8 2.1 35 1840 0.268 63 260 265
1 × 95 19/2.52 8 2.1 36 2140 0.193 63 320 315
1 × 120 24/2.52 8 2.2 38 2450 0.153 63 370 360
1 × 150 30/2.52 8 2.2 39 2790 0.124 63 420 405
1 × 185 37/2.52 8 2.3 41 3200 0.0991 63 480 455
1 × 240 48/2.52 8 2.3 43 3800 0.0754 63 565 530
1 × 300 61/2.52 8 2.4 45 4460 0.0601 63 650 595
1 × 400 61/2.97 8 2.5 49 5530 0.047 63 755 680
1 × 500 61/3.23 8 2.6 53 6160 0.0366 63 865 765
1 × 630 61/3.50 8 2.7 56 8020 0.0283 63 1000 860




Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute

to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP

self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of drum

according to customer's requirement.



After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise,

Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy

of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client

could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we

observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable

relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and

installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company

of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question

timely.We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us

more closer and tight!
