4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants

China 4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants supplier
4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants supplier 4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants supplier 4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants supplier 4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants supplier

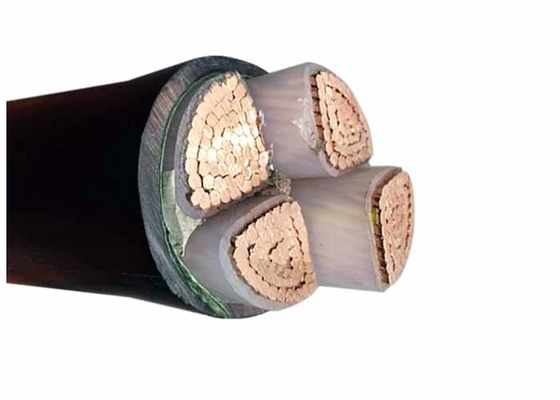

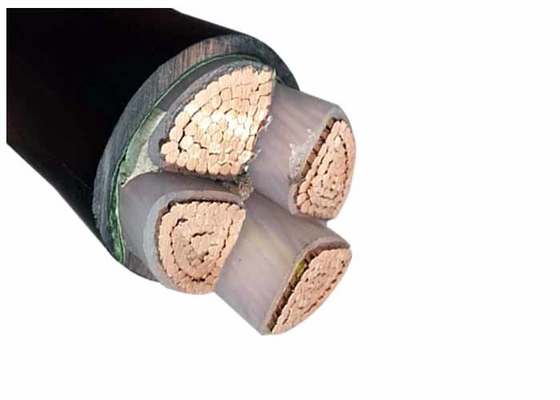

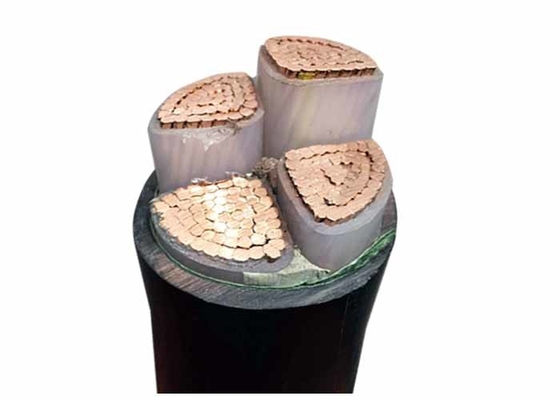

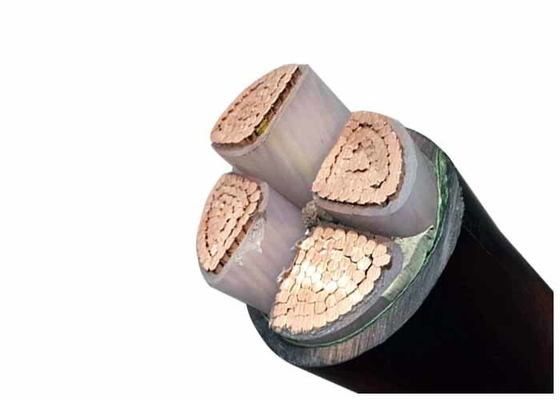

Large Image :  4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: 3 cores MV Cable

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: US$0.51 - US$125 / Meter
Packaging Details: Wooden Drums
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 21,000 KMs per Month
Contact Now
Detailed Product Description
Product Name: 4 Cores MV Cable Insulation: XLPE
Armour: None Conductor: Copper
Cores: 4 Cores Standard: IEC, BS, IS, VDE
Warranty: 2 Years Free Smaple: Yes

4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants



Application



Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.



XLPE insulated power cable are used as electricity power transmission lines which applies common circumstances as below:

  • Mainly used for transmitting electricity power or used as control cable.
  • Common operating temperature up to 90°C (emergency at 130°C and short circuit 250°C), both wet or dry location.
  • Voltage rate 600/1Kv.
  • Suits for main or secondary power lines of overhead (aerial) installations, direct burial underground or in dust.
  • Cable trunking, cable tray, cable ladder, in tunnel or wire pipe and in switchgear and other complex operating environment.
  • Works perfectly after metallic sheath (metal especially aluminum clad) or metal wire armored ( especially steel wire armored - SWA) when isolation of electromagnetic effects, anti-interference, anti-jamming and additional strength are required.

Construction

  • Conductor: Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper/Aluminum Conductor.
  • Insulation: XLPE (Cross-Linked Polyethylene).
  • Sheath/Jacket: PVC or LSOH
  • Insulation Color by default:
    • 1C – Natural
    • 2C – Brown & Blue
    • 3C – Brown, Black & Grey
    • 4C – Brown, Black, Grey & Blue
    • 2C+E – Brown, Blue + Green/Yellow
    • 3C+E – Brown, Black, Grey + Green/Yellow
    • 4C+E – Brown, Black, Grey, Blue + Green/Yellow
    • 5C & above – White Cores Printed With Number
  • Sheath Colour: Black.

Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request



Certificate



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request



PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.





Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.



4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants
