N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2

China N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 supplier
N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 supplier N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 supplier N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 supplier N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 supplier

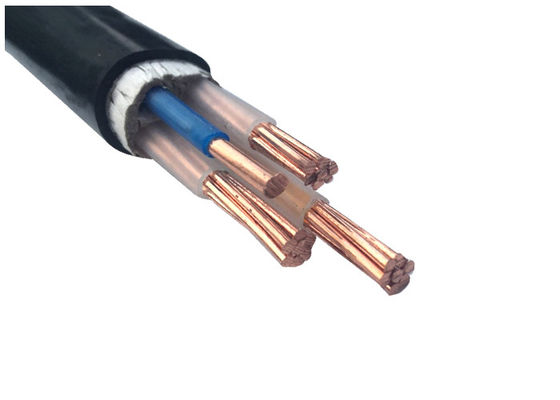

Large Image :  N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: RoHS/KEMA/TUV/CE/ISO
Model Number: N2XH-0.6/1KV 4x10SQMM

Payment & Shipping Terms:

Minimum Order Quantity: 500m
Price: USD 0.12-5.99/M
Packaging Details: Wooden Drum
Delivery Time: 7 Days
Payment Terms: L/C, T/T
Supply Ability: 62573KM/Day
Contact Now
Detailed Product Description
Standard: IEC60332-3,IEC60502-1 Sample: Free
Our Sheath: LSZH Conductor Operating Temp: 90 ℃
Rated Voltage: 600/1000V Color: Orange

N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2 Competitive Price



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Construction



Conductor : Copper Conductor as per IEC 60228

≤6mm2 solid (class 1)

>6mm2 stranded (class 2)

≥ 50mm2 Shaped conductoer optional

Insulation : PVC(polyvinyl chloride) rated at 75℃

Sheath : Low smoke zero halogen black or red or customization

Flame retardant: Avaliable as customization



Standards:


Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Mica Tape
Filler
Sheath: LSOH, black or other colors, as per IEC60332,60502-1



Technical data



Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450



Certificates



ISO,CE, KEMA ,IEC, CCC, P3C and more others at request



Packing and shipping



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

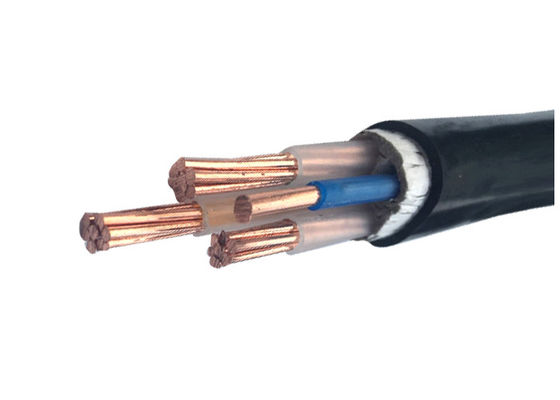

N2XH IEC60332-3 XLPE Low Smoke Zero Halogen Free Power Cable 4x10MM2
