| Working Temperature: | 90 ℃ (max.) | Type: | Lower Voltage 600/1000V |
|---|---|---|---|
| Insulation Color: | Orange Or Optional | Function: | Fire Resistant |
| Sample: | 1-1.5m | Application: | Indoors, In Tunnel, Cable Trench, Underground |
| Certificates: | CE KEMA VDE,IEC | Packing: | Treated Steel Wooden Drum |
| Cable Marking: | Ink Printing | ||
| High Light: | low smoke halogen free cable,low smoke zero halogen wire |
||

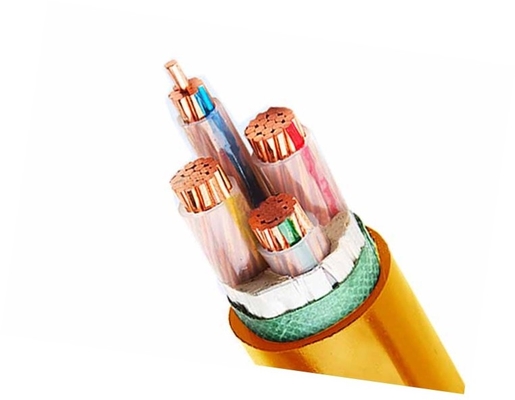

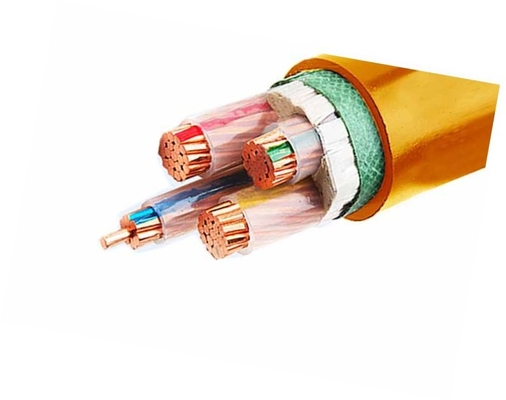

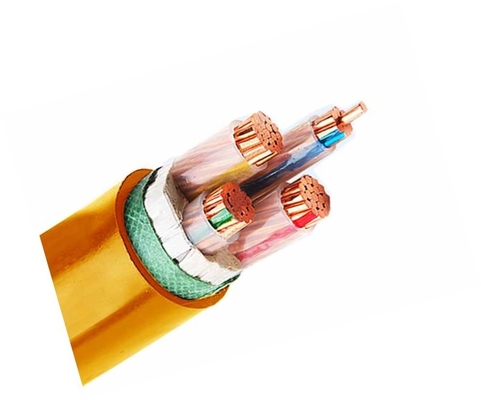

0.6/1kV Low Smoke Halogen Free Cable Shanghai manufacturer CU/XLPE/LSZH ROHS CE Certified
. Application for Fire Resistive Power Cable, Fire Rated Power Cable
| Conductor | : | Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper |
|---|---|---|
| Fire Barrier | : | Mica Tape |
| Insulation | : | XLPE (For FR-200) or LSOH (For FR-300) |
| Sheath | : |
LSOH |
| Conductor | : | Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper |
|---|---|---|
| Fire Barrier | : | Mica Tape |
| Insulation | : | XLPE (For FR-200) or LSOH (For FR-300) |
| Sheath | : | LSOH |
| Insulation Colour | : |
2C – Brown & Blue 3C – Brown, Black & Grey 4C – Brown, Black, Grey & Blue 2C+E – Brown, Blue + Green/Yellow 3C+E – Brown, Black, Grey + Green/Yellow 4C+E – Brown, Black, Grey, Blue + Green/Yellow 5C & above – White Cores Printed With Number |
Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".
