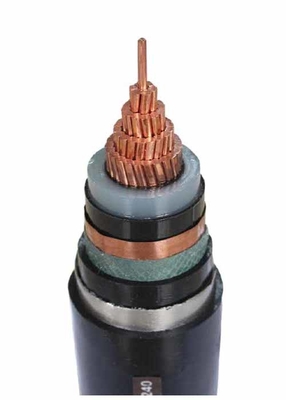

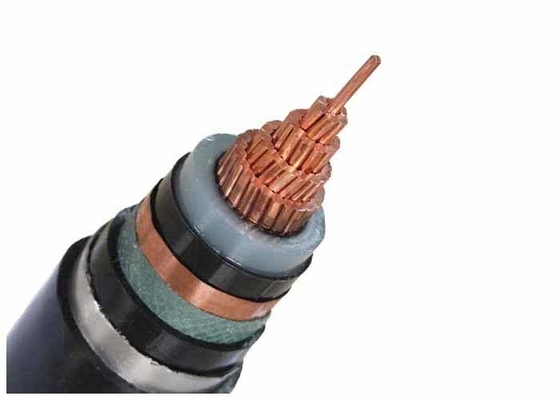

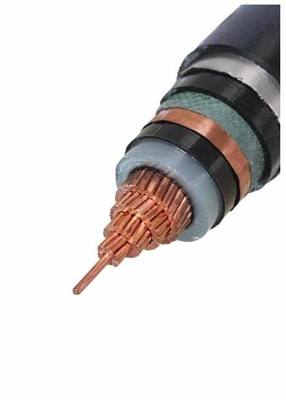

26 / 35kV Signle Core or Three Core XLPE Insulated Power Cable with stranded Copper Conductor
Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.
|Conductor||Copper Conductor as per IEC 60228,Class 2|
|Circular or Shaped conductor|
|Flexible conductor(class 5) optional.|
|Insulation||XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional|
|Metallic Screen optional||Copper tape or copper wires braiding optional|
|Sheath||PVC or FR-PVC type ST2 to IEC 60502, black or red or customization|
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Technical data: Rated voltage:26/35kV Medium Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Standards: International: IEC 60502-2, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request
|Nom. Cross-section of conductor||Strands No./Dia. Of Conductor||Insulation Thickness||Sheath Thickness||Approx. O.D.||
|Max. D.C Resistance of Conductor (20 ℃)||Testing Voltage A.C||Current Rating|
|mm2||pc/mm||mm||mm||mm||kg/km||Ω /km||kV/5min||In air (A)||In soil(A)|
|1 × 50||10/2.52||10.5||2.2||39.0||1758||0.387||91||220||215|
|1 × 70||14/2.52||10.5||2.4||41.0||2038||0.268||91||270||265|
|1 × 95||19/2.52||10.5||2.4||42.0||2355||0.193||91||330||315|
|1 × 120||24/2.52||10.5||2.4||44.0||2666||0.153||91||375||360|
|1 × 150||30/2.52||10.5||2.5||45.0||3031||0.124||91||425||400|
|1 × 185||37/2.52||10.5||2.5||47.0||3427||0.0991||91||485||455|
|1 × 240||48/2.52||10.5||2.6||49.0||4070||0.0754||91||560||525|
|1 × 300||61/2.52||10.5||2.7||51.0||4748||0.0601||91||650||595|
|1 × 400||61/2.97||10.5||2.8||55.0||5801||0.0470||91||760||680|
|1 × 500||61/3.23||10.5||2.9||58.0||6623||0.0366||91||875||775|
|1 × 630||61/3.50||10.5||3||62.0||5211||0.0283||91||1000||875|
|1 × 800||91/3.20||10.5||3.1||68.0||10014||0.0221||91||1130||970|
|1 × 1000||91/3.75||10.5||3.3||72.0||12078||0.0176||91||1250||1060|
|3 × 50||10/2.52||10.5||3.7||81.0||6728||0.387||91||185||200|
|3 × 70||14/2.52||10.5||3.8||84.0||7581||0.268||91||230||250|
|3 × 95||19/2.52||10.5||3.9||88.0||8630||0.193||91||280||300|
|3 × 120||24/2.52||10.5||4.0||91.0||9688||0.153||91||310||330|
|3 × 150||30/2.52||10.5||4.1||95.0||11017||0.124||91||360||380|
|3 × 185||37/2.52||10.5||4.2||98.0||12390||0.0991||91||400||425|
|3 × 240||48/2.52||10.5||4.4||103.0||14427||0.0754||91||470||490|
|3 × 300||61/2.52||10.5||4.5||108.0||15940||0.0601||91||540||555|
|3 × 400||61/2.97||10.5||4.8||116.0||19346||0.0470||91||610||625|
