Semi Conductor XLPE Power Cable Black Jacket Flame Retardant For Laying Indoors

China Semi Conductor XLPE Power Cable Black Jacket Flame Retardant For Laying Indoors supplier
Semi Conductor XLPE Power Cable Black Jacket Flame Retardant For Laying Indoors supplier

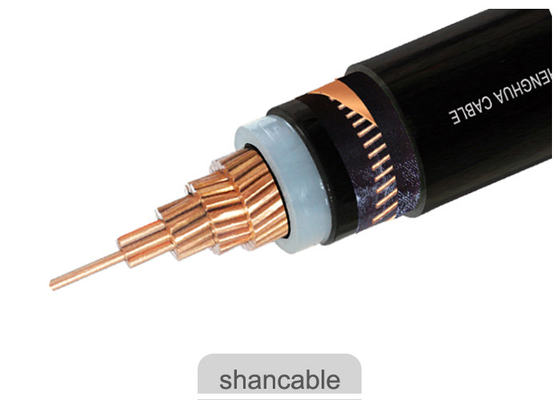

Large Image :  Semi Conductor XLPE Power Cable Black Jacket Flame Retardant For Laying Indoors

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: N2XY-6.35/11KV 1x95mm2

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Screen Material: Copper Tape Rated Voltage: 6.35/11KV
Jacket: PVC Sample: Free
Test Voltage: 3.5KV Operating Temp: 90 Degree
Cable Mark: Printing Or Embossing Main Market: Asia,Africa
High Light:

xlpe insulation cable

,

xlpe electrical cable

Three Core Copper Conductor XLPE Insulated Medium Voltage 11kV Power Cable





Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Note: Insulation color as per standards or customer requirement



Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage:6/10kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Certificates

CE, RoHS, CCC, KEMA and more others at request



Technical Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 4.5 1.8 23.0 598 0.727 30.5 140 150
1 × 35 7/2.52 4.5 1.8 24.0 680 0.524 30.5 175 180
1 × 50 10/2.52 4.5 1.9 25.0 804 0.387 30.5 205 215
1 × 70 14/2.52 4.5 1.9 27.0 984 0.268 30.5 260 265
1 × 95 19/2.52 4.5 2 29.0 1201 0.193 30.5 315 315
1 × 120 24/2.52 4.5 2 30.0 1490 0.153 30.5 365 360
1 × 150 30/2.52 4.5 2.1 32.0 1765 0.124 30.5 415 405
1 × 185 37/2.52 4.5 2.1 34.0 2091 0.0991 30.5 475 455
1 × 240 48/2.52 4.5 2.2 36.0 3034 0.0754 30.5 565 530
1 × 300 61/2.52 4.5 2.4 39.0 3672 0.0601 30.5 645 595
1 × 400 61/2.97 4.5 2.4 42.0 4646 0.0470 30.5 750 680
1 × 500 61/3.23 4.5 2.5 45.0 5651 0.0366 30.5 865 765
1 × 630 61/3.50 4.5 2.5 50.0 7154 0.0283 30.5 990 860
1 × 800 91/3.20 4.5 2.7 55.0 8750 0.0221 30.5 1140 950
1 × 1000 91/3.75 4.5 2.9 59.0 10727 0.0176 30.5 1250 1040
3 × 25 7/2.14 4.5 2.4 46.0 2573 0.727 30.5 120 125
3 × 35 7/2.52 4.5 2.6 48.0 2985 0.524 30.5 145 155
3 × 50 10/2.52 4.5 2.7 51.0 3529 0.387 30.5 175 180
3 × 70 14/2.52 4.5 2.8 55.0 4197 0.268 30.5 220 220
3 × 95 19/2.52 4.5 2.9 58.0 5230 0.193 30.5 265 265
3 × 120 24/2.52 4.5 3.0 61.0 6120 0.153 30.5 305 300
3 × 150 30/2.52 4.5 3.1 64.0 7207 0.124 30.5 350 340
3 × 185 37/2.52 4.5 3.2 68.0 8378 0.0991 30.5 395 380
3 × 240 48/2.52 4.5 3.4 73.0 10177 0.0754 30.5 470 435
3 × 300 61/2.52 4.5 3.5 77.0 12159 0.0601 30.5 535 485
3 × 400 61/2.97 4.5 3.8 86.0 15641 0.0470 30.5 610 520



Semi Conductor XLPE Power Cable Black Jacket Flame Retardant For Laying Indoors 0



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.





PACKING AND SHIPPING



We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
