Product Details:
Payment & Shipping Terms:
|
| Name: | Xlpe Insulated Pvc Sheathed Cable | Insulation: | XLPE (cross-linked Polyethylene) Rated At 90 OC |
|---|---|---|---|
| \Cores: | Multi Cores | Insulation Color: | Red,Yellow,Blue |
| Operating Temp: | 90 Degree | Advantage: | Anti Chemical Corrosion |
| High Light: | xlpe insulation cable,xlpe insulated cable |
||

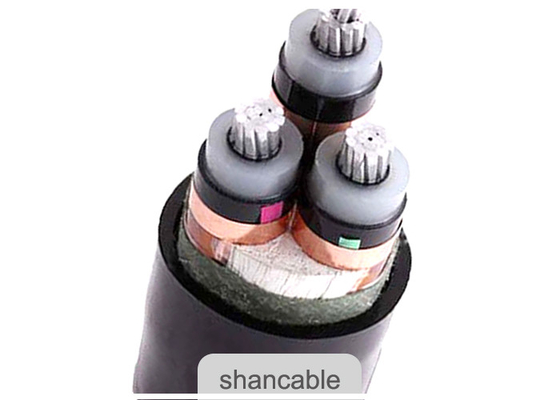

Multi Cores XLPE Insulated PVC Sheathed Cable Anti Chemical Corrosion
Xlpe Insulated Pvc Sheathed Cable Applications
Xlpe Insulated Pvc Sheathed Cable are used for power distribution and transmission, building, appliance, flexible cord and machine tool. Insulation and jackets made from PVC which has a number of desirable properties inculding flexibility, resistance to temperature, resistance to adverse environmental situations and low cost.
Xlpe Insulated Pvc Sheathed Cable Construction
Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE (cross-linked polyethylene) rated at 90 OC
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Standards
International: IEC 60502-2, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 8.7/15kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Xlpe Insulated Pvc Sheathed Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 25 | 7/2.14 | 4.5 | 2.4 | 46.0 | 2072 | 1.2 | 30.5 | 95 | 100 |
| 3 × 35 | 7/2.52 | 4.5 | 2.6 | 48.0 | 2334 | 0.868 | 30.5 | 115 | 120 |
| 3 × 50 | 10/2.52 | 4.5 | 2.7 | 51.0 | 2598 | 0.641 | 30.5 | 135 | 140 |
| 3 × 70 | 14/2.52 | 4.5 | 2.8 | 55.0 | 2895 | 0.443 | 30.5 | 170 | 170 |
| 3 × 95 | 19/2.52 | 4.5 | 2.9 | 58.0 | 3462 | 0.32 | 30.5 | 205 | 210 |
| 3 × 120 | 24/2.52 | 4.5 | 3.0 | 61.0 | 3888 | 0.253 | 30.5 | 235 | 235 |
| 3 × 150 | 30/2.52 | 4.5 | 3.1 | 64.0 | 4416 | 0.206 | 30.5 | 270 | 260 |
| 3 × 185 | 37/2.52 | 4.5 | 3.2 | 68.0 | 4935 | 0.164 | 30.5 | 310 | 300 |
| 3 × 240 | 48/2.52 | 4.5 | 3.4 | 73.0 | 5712 | 0.125 | 30.5 | 370 | 345 |
| 3 × 300 | 61/2.52 | 4.5 | 3.5 | 77.0 | 6577 | 0. 1 | 30.5 | 420 | 390 |
| 3 × 400 | 61/2.97 | 4.5 | 3.8 | 86.0 | 8081 | 0.0778 | 30.5 | 485 | 440 |
FAQ
1. Is your company a factory or trading company?
We are factory with our own trading company. Our trade business expands home and abroad.
2. When can I get the price?
We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
4. What is Minimum Order Quantity?
Generally, 1000 meters for building wire. For power cable, armored or unarmored, 500 meters.
5. Which standards for your products?
We can produce wire and cable according to international standards: IEC, ASTM, BS, DIN, SANS, CSA or as customers’ requirement.
