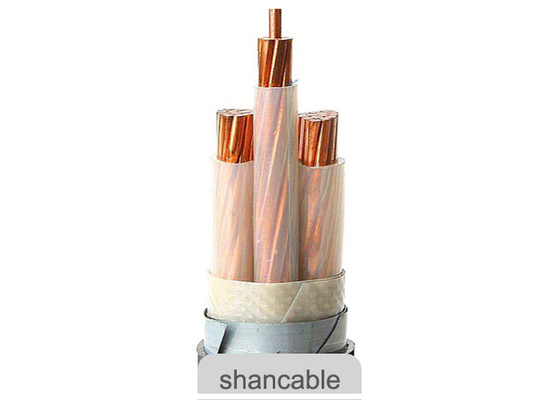

Electricity PVC XLPE Cable , Waterproof Armoured And Unarmoured Cable
PVC XLPE Cable Characteristics:
XLPE insulated steel wire armoured power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature.
PVC XLPE Cable Construction
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner sheath : PVC type ST2 to IEC 60502, black
Armour Type : Double Steel tape armour
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Standards
International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
PVC XLPE Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Steel tape thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm |
mm |
mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 4 | 1/2.25 | 0.7 | 2x0.2 | 1.5 | 15 | 390 | 4.61 | 3.5 | 34 | 45 |
| 3 × 6 | 1/2.76 | 0.7 | 2x0.2 | 1.5 | 16 | 471 | 3.08 | 3.5 | 43 | 57 |
| 3 × 10 | 7/1.38 | 0.7 | 2x0.2 | 1.5 | 18 | 622 | 1.83 | 3.5 | 60 | 77 |
| 3 × 16 | 7/1.78 | 0.7 | 2x0.2 | 2.0 | 22 | 1005 | 1.15 | 3.5 | 83 | 105 |
| 3 × 25 | 7/2.14 | 0.9 | 2x0.2 | 2.0 | 25.0 | 1371 | 0.727 | 3.5 | 105 | 125 |
| 3 × 35 | 7/2.52 | 0.9 | 2x0.2 | 2.0 | 27.0 | 1724 | 0.524 | 3.5 | 125 | 155 |
| 3 × 50 | 10/2.52 | 1.0 | 2x0.2 | 2.0 | 30.0 | 2247 | 0.387 | 3.5 | 160 | 185 |
| 3 × 70 | 14/2.52 | 1.1 | 2x0.2 | 2.5 | 35.0 | 3023 | 0.268 | 3.5 | 200 | 225 |
| 3 × 95 | 19/2.52 | 1.1 | 2x0.5 | 2.5 | 39.0 | 3825 | 0.193 | 3.5 | 245 | 270 |
| 3 × 120 | 24/2.52 | 1.2 | 2x0.5 | 2.5 | 42.0 | 4642 | 0.153 | 3.5 | 285 | 310 |
| 3 × 150 | 30/2.52 | 1.4 | 2x0.5 | 3.0 | 48.0 | 5767 | 0.124 | 3.5 | 325 | 345 |
| 3 × 185 | 37/2.52 | 1.6 | 2x0.5 | 3.0 | 51.0 | 6895 | 0.0991 | 3.5 | 375 | 390 |
| 3 × 240 | 48/2.52 | 1.7 | 2x0.5 | 3.0 | 56.0 | 8617 | 0.0754 | 3.5 | 440 | 450 |
| 3 × 300 | 61/2.52 | 1.8 | 2x0.5 | 3.0 | 59.0 | 10928 | 0.0601 | 3.5 | 505 | 515 |
