Multi Core XLPE Insulated Power Cable Copper Conductor Low Voltage 1kv

China Multi Core XLPE Insulated Power Cable Copper Conductor Low Voltage 1kv supplier
Multi Core XLPE Insulated Power Cable Copper Conductor Low Voltage 1kv supplier

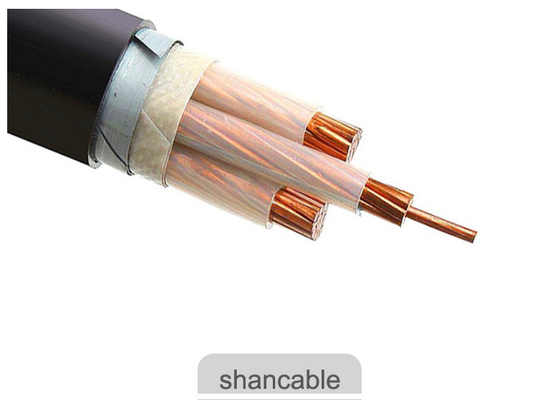

Large Image :  Multi Core XLPE Insulated Power Cable Copper Conductor Low Voltage 1kv

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV22 0.6-1KV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Conductor: Compact Stranded Copper Conductor, Cl.2 As Per IEC 60228 Insulation: XLPE(cross-linked Polyethylene) Rated At 90 OC
Core: Multi Core Insulation Color: Red,Yellow,Blue
Operating Temp: 90 Degree Sheath: PVC Or FR-PVC Type ST2 To IEC 60502, Black
High Light:

xlpe insulation cable

,

xlpe insulated cable

Multi Core XLPE Insulated Power Cable Copper Conductor Low Voltage 1kv

Construction


Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner sheath : PVC type ST2 to IEC 60502, black
Armour Type : Double Steel tape armour
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core

Certificates

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum

Specifications

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Steel tape thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm



mm

mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 4 1/2.25 0.7 2x0.2 1.5 15 390 4.61 3.5 34 45
3 × 6 1/2.76 0.7 2x0.2 1.5 16 471 3.08 3.5 43 57
3 × 10 7/1.38 0.7 2x0.2 1.5 18 622 1.83 3.5 60 77
3 × 16 7/1.78 0.7 2x0.2 2.0 22 1005 1.15 3.5 83 105
3 × 25 7/2.14 0.9 2x0.2 2.0 25.0 1371 0.727 3.5 105 125
3 × 35 7/2.52 0.9 2x0.2 2.0 27.0 1724 0.524 3.5 125 155
3 × 50 10/2.52 1.0 2x0.2 2.0 30.0 2247 0.387 3.5 160 185
3 × 70 14/2.52 1.1 2x0.2 2.5 35.0 3023 0.268 3.5 200 225
3 × 95 19/2.52 1.1 2x0.5 2.5 39.0 3825 0.193 3.5 245 270
3 × 120 24/2.52 1.2 2x0.5 2.5 42.0 4642 0.153 3.5 285 310
3 × 150 30/2.52 1.4 2x0.5 3.0 48.0 5767 0.124 3.5 325 345
3 × 185 37/2.52 1.6 2x0.5 3.0 51.0 6895 0.0991 3.5 375 390
3 × 240 48/2.52 1.7 2x0.5 3.0 56.0 8617 0.0754 3.5 440 450
3 × 300 61/2.52 1.8 2x0.5 3.0 59.0 10928 0.0601 3.5 505 515
