Power Distribution Insulated Electrical Cable , Building XLPE PVC Cable

China Power Distribution Insulated Electrical Cable , Building XLPE PVC Cable supplier
Power Distribution Insulated Electrical Cable , Building XLPE PVC Cable supplier

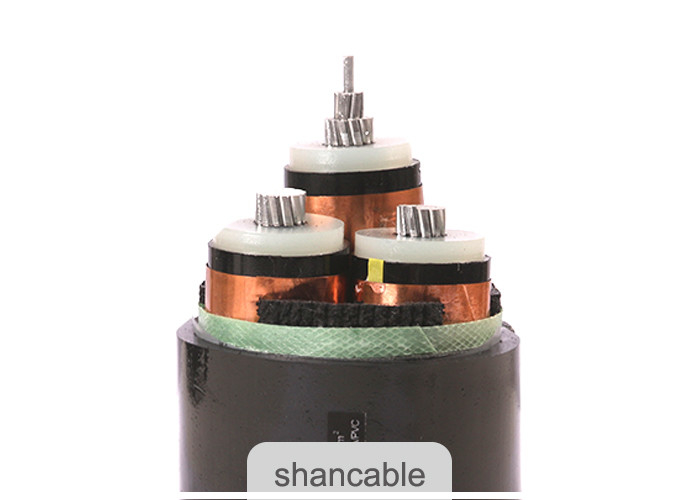

Large Image :  Power Distribution Insulated Electrical Cable , Building XLPE PVC Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV 21-35KV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Type: Xlpe Pvc Cable Usage: Power Distribution
Conductor Screen:: Semi-conductor Sample: Free
Insulation Color: Red,Yellow,Blue Operating Temp: 90 Degree
Screen: Copper Tape
High Light:

xlpe insulation cable

,

xlpe insulated cable

Power Distribution Insulated Electrical Cable , Building XLPE PVC Cable

Insulated Electrical Cable Applications

Used for power transmission and distribution line . Compared with PVC insulated power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working



Insulated Electrical Cable Construction



Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape


Insulated Electrical Cable Standards

International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request


Certificates

CE, RoHS, , KEMA and more others at request

Insulated Electrical Cable Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 9.3 2 37.0 1360 0.641 73.5 170 165
1 × 70 14/2.52 9.3 2.5 38.0 1471 0.443 73.5 210 200
1 × 95 19/2.52 9.3 2.5 40.0 1605 0.320 73.5 255 240
1 × 120 24/2.52 9.3 2.5 42.0 1756 0.253 73.5 290 270
1 × 150 30/2.52 9.3 2.5 44.0 1910 0.206 73.5 330 305
1 × 185 37/2.52 9.3 2.5 45.0 2102 0.1640 73.5 380 345
1 × 240 48/2.52 9.3 2.5 48.0 2395 0.1250 73.5 435 400
1 × 300 61/2.52 9.3 3 50.0 2672 0.1000 73.5 510 455
1 × 400 61/2.97 9.3 3 53.0 3094 0.0778 73.5 595 525
1 × 500 61/3.23 9.3 3 55.0 3595 0.0605 73.5 690 600
1 × 630 61/3.50 9.3 3.1 60.0 4193 0.0469 73.5 800 680
1 × 800 91/3.20 5.5 3.1 65 4792 0.0367 73.5 920 770
1 × 1000 91/3.75 5.5 3.2 70 5581 0.0291 73.5 1040 860
3 × 50 10/2.52 9.3 3.5 76.0 4492 0.641 73.5 145 170
3 × 70 14/2.52 9.3 3.6 80.0 5000 0.443 73.5 190 190
3 × 95 19/2.52 9.3 3.7 83.0 5533 0.320 73.5 215 230
3 × 120 24/2.52 9.3 3.8 86.0 6054 0.253 73.5 240 255
3 × 150 30/2.52 9.3 3.9 89.0 6593 0.206 73.5 280 295
3 × 185 37/2.52 9.3 4.0 93.0 7255 0.1640 73.5 310 330
3 × 240 48/2.52 9.3 4.2 98.0 8216 0.1250 73.5 365 380
3 × 300 61/2.52 9.3 4.3 102.0 9248 0.1000 73.5 430 435
3 × 400 61/2.97 9.3 4.6 110.0 10663 0.0778 73.5 485 500
