Semi Conductor Insulated Electrical Cable , XLPE Insulated PVC Sheathed Cable

China Semi Conductor Insulated Electrical Cable , XLPE Insulated PVC Sheathed Cable supplier
Semi Conductor Insulated Electrical Cable , XLPE Insulated PVC Sheathed Cable supplier

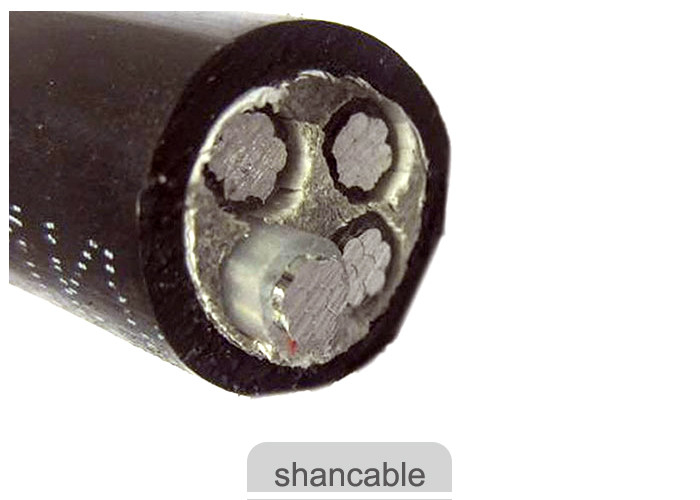

Large Image :  Semi Conductor Insulated Electrical Cable , XLPE Insulated PVC Sheathed Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV 0.6-1KV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Name: Insulated Electrical Cable Insulation: XLPE
Conductor Screen:: Semi-conductor Insulation Color: Red,Yellow,Blue
Operating Temp: 90 Degree TRype: XLPE Insulated PVC Sheathed Cable
Screen: Copper Tape
High Light:

xlpe insulation cable

,

xlpe insulated cable

Semi Conductor Insulated Electrical Cable , XLPE Insulated PVC Sheathed Cable

Insulated Electrical Cable Applications

These cables are used for electricity supply in low voltage installation system, they are suitable for installation in indoors and
outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants.



Insulated Electrical Cable Construction



Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black


Standards



International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJLV only)

Other standards such as BS,DIN and ICEA upon request


Technical data



Rated voltage: 21/35(36)kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core


Certificates

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum

Insulated Electrical Cable Specifications



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 1/2.25 0.7 1.8 13.0 155 7.41 3.5 27 36
4 × 6 1/2.76 0.7 1.8 14.0 184 4.61 3.5 35 46
4 × 10 7/1.38 0.7 1.8 17.0 258 3.08 3.5 47 59
4 × 16 7/1.78 0.7 1.8 20.0 366 1.91 3.5 64 80
4 × 25 7/2.14 0.9 1.8 23.0 540 1.200 3.5 82 100
4 × 35 7/2.52 0.9 1.8 25 686 0.868 3.5 100 120
4 × 50 10/2.52 1.0 1.8 23 907 0.641 3.5 125 145
4 × 70 14/2.52 1.1 1.8 27 1192 0.443 3.5 155 175
4 × 95 19/2.52 1.1 1.9 31 1598 0.320 3.5 200 210
4 × 120 24/2.52 1.2 2.0 33 1949 0.253 3.5 220 240
4 × 150 30/2.52 1.4 2.2 38 2517 0.206 3.5 250 270
4 × 185 37/2.52 1.6 2.3 42 3091 0.1640 3.5 295 305
4 × 240 48/2.52 1.7 2.5 47 3825 0.1250 3.5 345 355



FAQ



1. Are you factory, can I get factory low price ?


Yes, we are cable factory.

2. What about sample?

Sample will be sent to you free for your test. Delivery cost will be negociated.

3. Can I put my logo on the cable ?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

4. Delivery date?

According to your quantity, the date will be 10- 20 days at most.

5.What's your minimum order quantity ?

Our MOQ is 500 meters. But we also accept small quantity.
