3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable

China 3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable supplier
3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable supplier 3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable supplier 3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable supplier

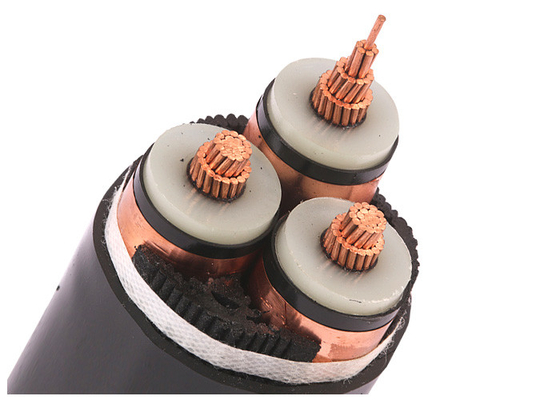

Large Image :  3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV 26-35KV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Name: XLPE Insulated Electrical Cable Conductor: Aluminum Conductor, Cl.2 As Per IEC 60228
Conductor Screen: Semi-conductor Insulation: XLPE (cross-linked Polyethylene) Rated At 90 OC
Insulation Screen: Semi-conductor Screen: Copper Tape
High Light:

xlpe insulation cable

,

xlpe insulated cable

Three Core Copper Conductor XLPE Insulated Medium Voltage 26/35kV Power Cable​

Construction



Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502-2, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 21/35(36)kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Certificates



CE, RoHS, KEMA and more others at request





Commercial Items: FOB Qingdao Port or Shanghai Port or CIF port as per request. MOQ: 500m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing: Wooden Iron drum, whole steel wooden drum if required by client side.



Specifications





Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 50 10/2.52 10.5 3.5 78.6 5491 0.387 91 180 190
3 × 70 14/2.52 10.5 3.6 82.3 6649 0.268 91 220 230
3 × 95 19/2.52 10.5 3.7 85.9 7744 0.193 91 265 275
3 × 120 24/2.52 10.5 3.8 89.2 8833 0.153 91 305 315
3 × 150 30/2.52 10.5 3.9 92.8 10008 0.124 91 345 355
3 × 185 37/2.52 10.5 4.0 96.5 11381 0.0991 91 390 400
3 × 240 48/2.52 10.5 4.2 101.6 13408 0.0754 91 455 460
3 × 300 61/2.52 10.5 4.3 106.6 15520 .0601 91 525 520
3 × 400 61/2.97 10.5 4.6 114.1 18942 0.047 91 600 590



Details

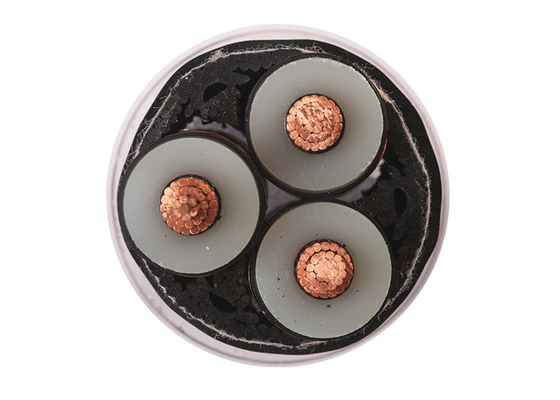

3 Core XLPE Insulated Electrical Cable , 26/35kV Medium Voltage Power Cable 0

FAQ



Q1. Are you a factory or trading company?

We are factory in Hebei,China.



Q2. When can I get quotation for cable?

We usually quote within two hours after we received your inquiry. If you are urgent to get the unit price, please let me know. We can quote it ASAP.



Q3. How can I get the sample to check the quality?

When you confirm the quotation, we can offer you the sample for free. You just need to pay the freight.



Q4. What about the lead time for mass production?

It depends on your order quantity. If we have stock, 5 days is OK. If custom products, usually it's need 12 days.



Q5. Do you have OEM products?

Sure, we can make cables as you want. We can change the color and logo on cable as you want.
