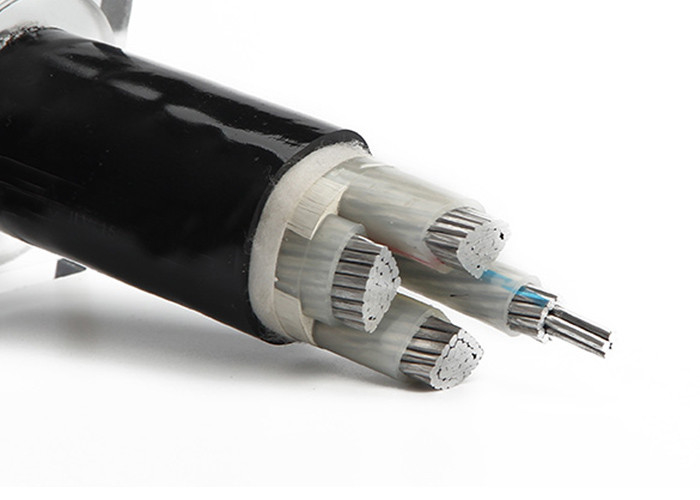

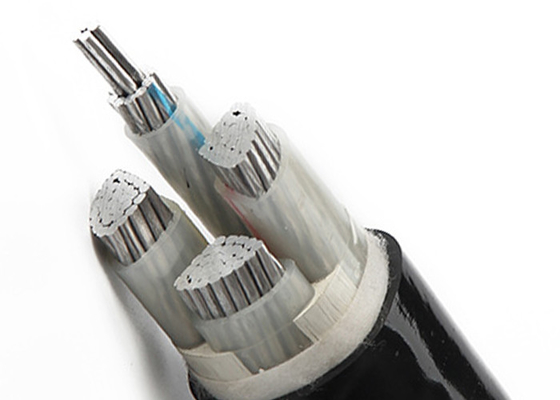

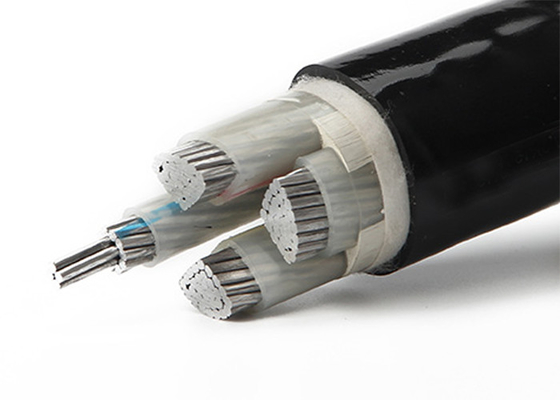

Multi Core Aluminum Conductor XLPE Insulation PVC Sheath Power Cable NYY
XLPE Insulated Power Cable Construction
Conductor : Stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation : XLPE
Sheath : PVC type ST2 to IEC 60502, black
Key words: Aluminum cable, LV aluminum conductor cable,XLPE insulation NYY cable
XLPE Insulated Power Cable Applications
For the NYY power cable, it can be used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
XLPE Insulated Power Cable Standards
International: IEC 60502-1, IEC 60228,
China: GB/T 12706, (GB/T 18380-3 for ZR-YJLV only)
Other standards such as BS,DIN and ICEA upon request
XLPE Insulated Power Cable Technical data
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
XLPE Insulated Power Cable Certificates
Commercial Items: MOQ:500m
Price Term: FOB Shanghai or CIF as request.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum or we can offer whole steel drum if requested by client.
XLPE Insulated Power Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 4 × 4 | 1/2.25 | 0.7 | 1.8 | 13.0 | 155 | 7.41 | 3.5 | 27 | 36 |
| 4 × 6 | 1/2.76 | 0.7 | 1.8 | 14.0 | 184 | 4.61 | 3.5 | 35 | 46 |
| 4 × 10 | 7/1.38 | 0.7 | 1.8 | 17.0 | 258 | 3.08 | 3.5 | 47 | 59 |
| 4 × 16 | 7/1.78 | 0.7 | 1.8 | 20.0 | 366 | 1.91 | 3.5 | 64 | 80 |
| 4 × 25 | 7/2.14 | 0.9 | 1.8 | 23.0 | 540 | 1.200 | 3.5 | 82 | 100 |
| 4 × 35 | 7/2.52 | 0.9 | 1.8 | 25 | 686 | 0.868 | 3.5 | 100 | 120 |
| 4 × 50 | 10/2.52 | 1.0 | 1.8 | 23 | 907 | 0.641 | 3.5 | 125 | 145 |
| 4 × 70 | 14/2.52 | 1.1 | 1.8 | 27 | 1192 | 0.443 | 3.5 | 155 | 175 |
| 4 × 95 | 19/2.52 | 1.1 | 1.9 | 31 | 1598 | 0.320 | 3.5 | 200 | 210 |
| 4 × 120 | 24/2.52 | 1.2 | 2.0 | 33 | 1949 | 0.253 | 3.5 | 220 | 240 |
| 4 × 150 | 30/2.52 | 1.4 | 2.2 | 38 | 2517 | 0.206 | 3.5 | 250 | 270 |
| 4 × 185 | 37/2.52 | 1.6 | 2.3 | 42 | 3091 | 0.1640 | 3.5 | 295 | 305 |
| 4 × 240 | 48/2.52 | 1.7 | 2.5 | 47 | 3825 | 0.1250 | 3.5 | 345 | 355 |
| 4 × 300 | 61/2.52 | 1.8 | 2.6 | 52 | 4830 | 0.1000 | 3.5 | 395 | 400 |
| 4 × 400 | 61/2.97 | 2.0 | 3.1 | 66 | 5840 | 0.0778 | 3.5 | 445 | 445 |
